combination rigid to wire grounding and bonding bushing

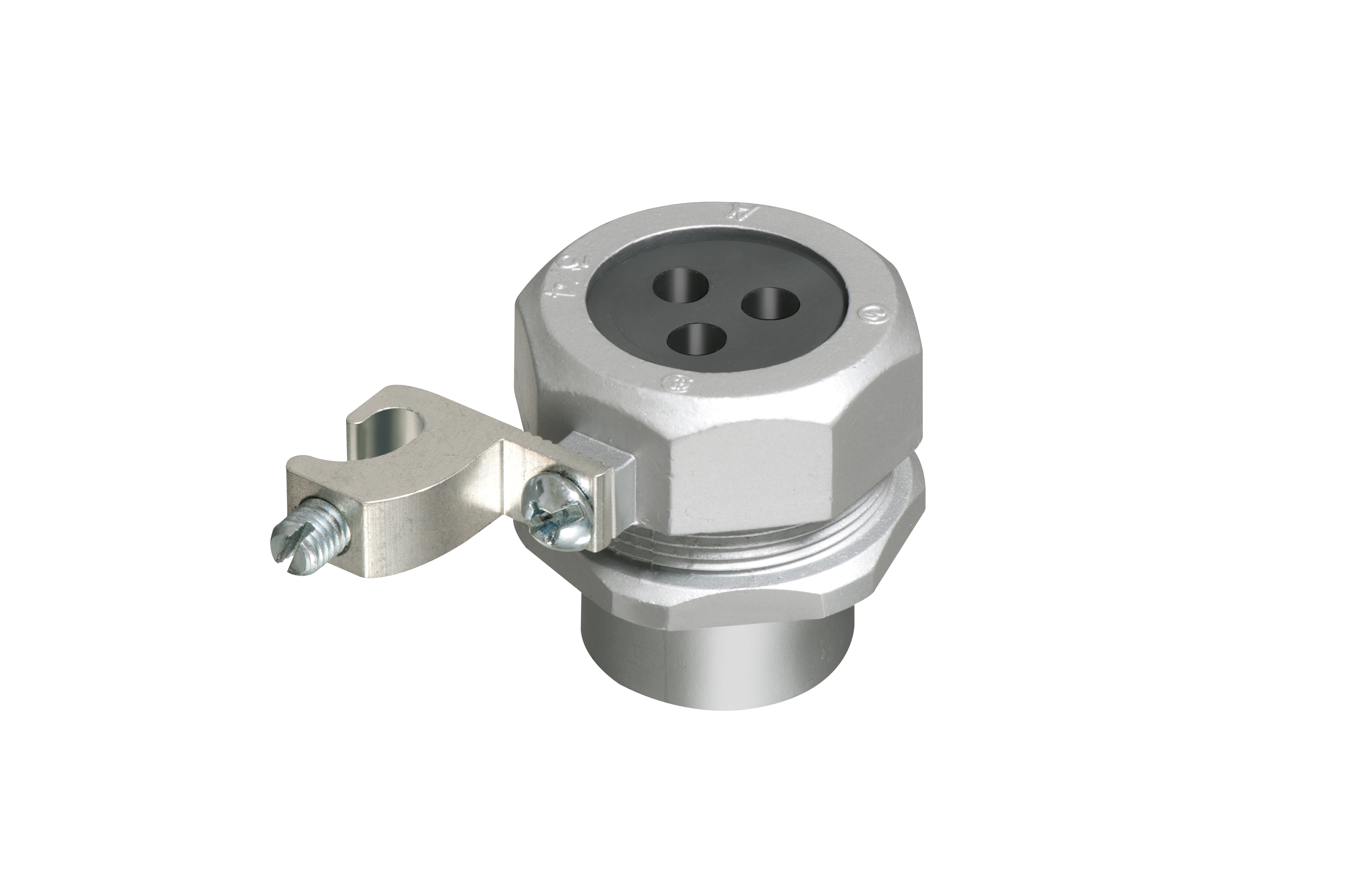

LTPV75 Product Information

The 3/4" size LTPV75 hold up to three cables with outside diameters of .245" to .280" - making them a great choice for PV1000 cables.
Specification SheetCatalog Page E-mail

Additional Images

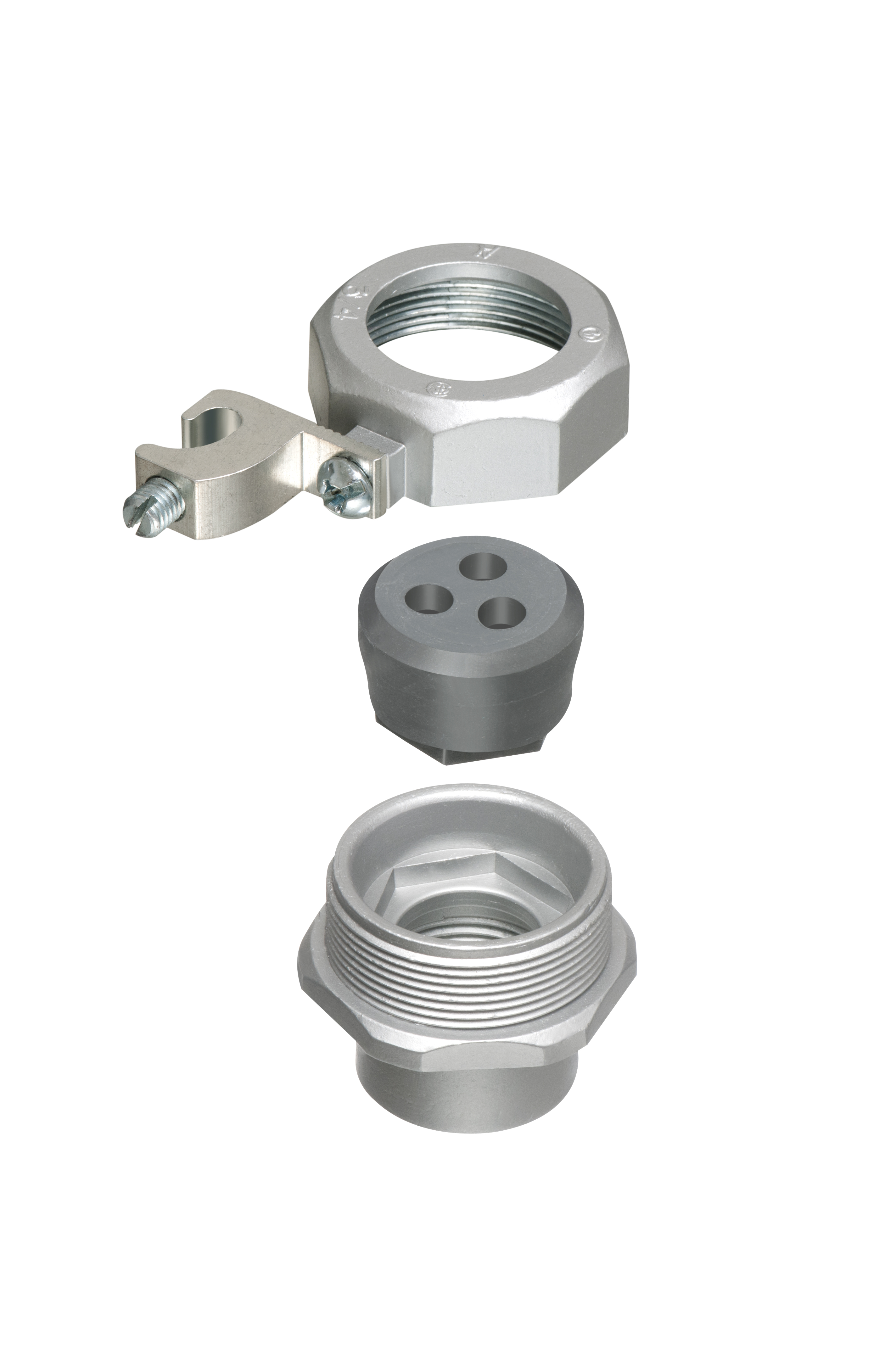

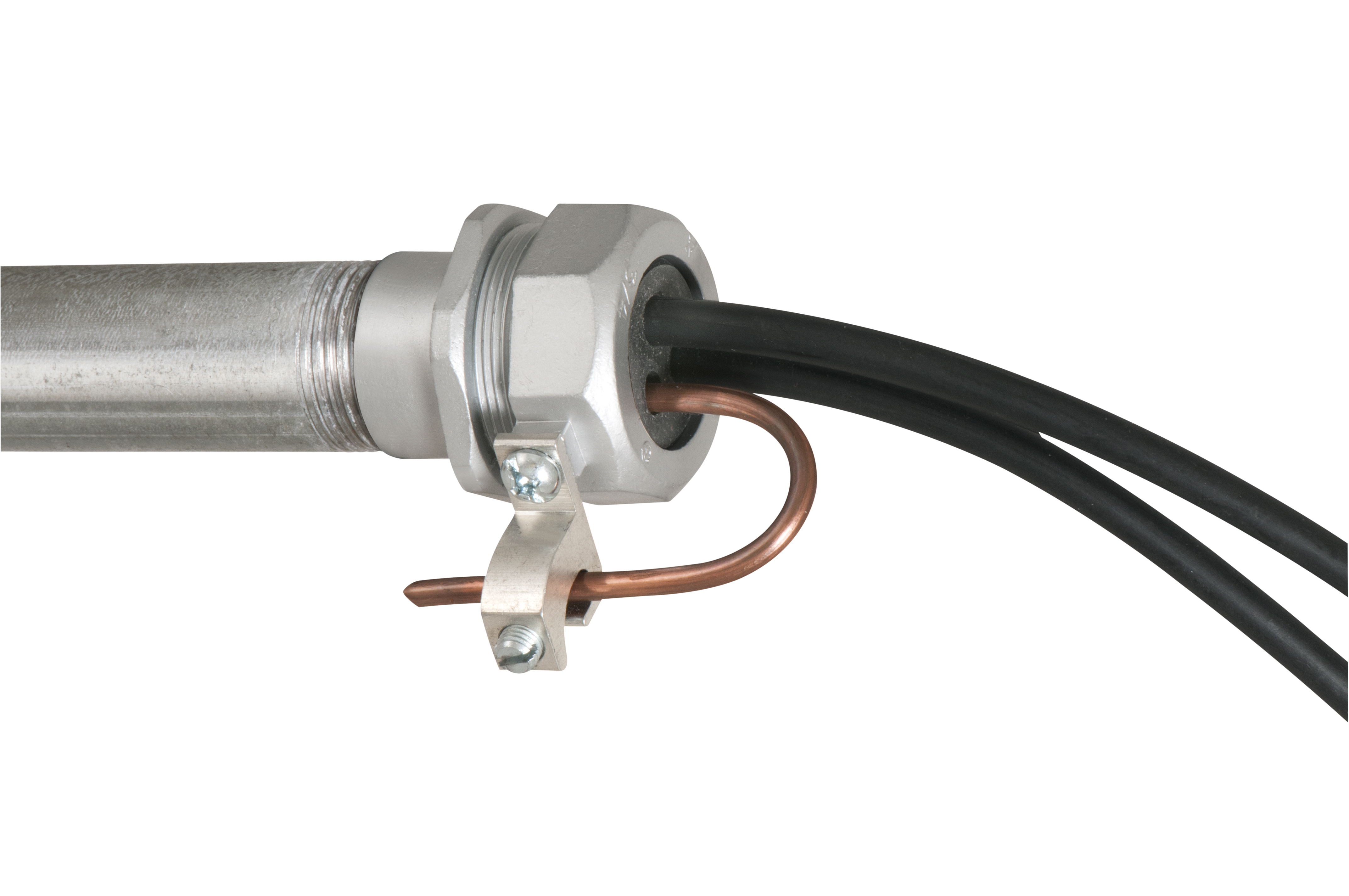

exploded view of components that make up fitting fitting installed on rigid pipe with wires exiting connector and ground wire secured

Basic Information

Part Number LTPV75
Description 3/4" combination Rigid to wire grounding and bonding bushing. Zinc die-cast. Holds up to (3) cables with outside diameters of .425 to .280.
UPC 018997233936
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.330 lbs/each
Height2.565"
Width1.619"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing LTPV75 Line Drawing
Cable Range0.245" - 0.280"
Trade Size3/4"
