low profile strain relief cord connector

LPCG50Z Product Information

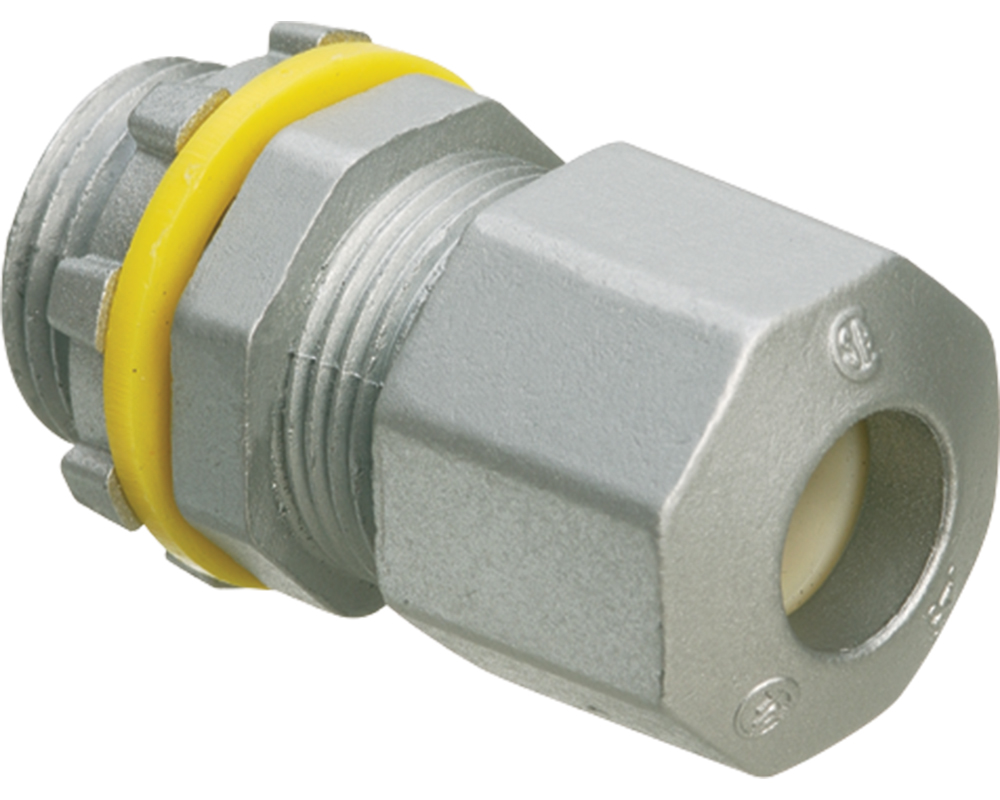

Low-Profile Strain Relief Zinc Cord Connector
Specification SheetCatalog Page E-mail

Additional Images

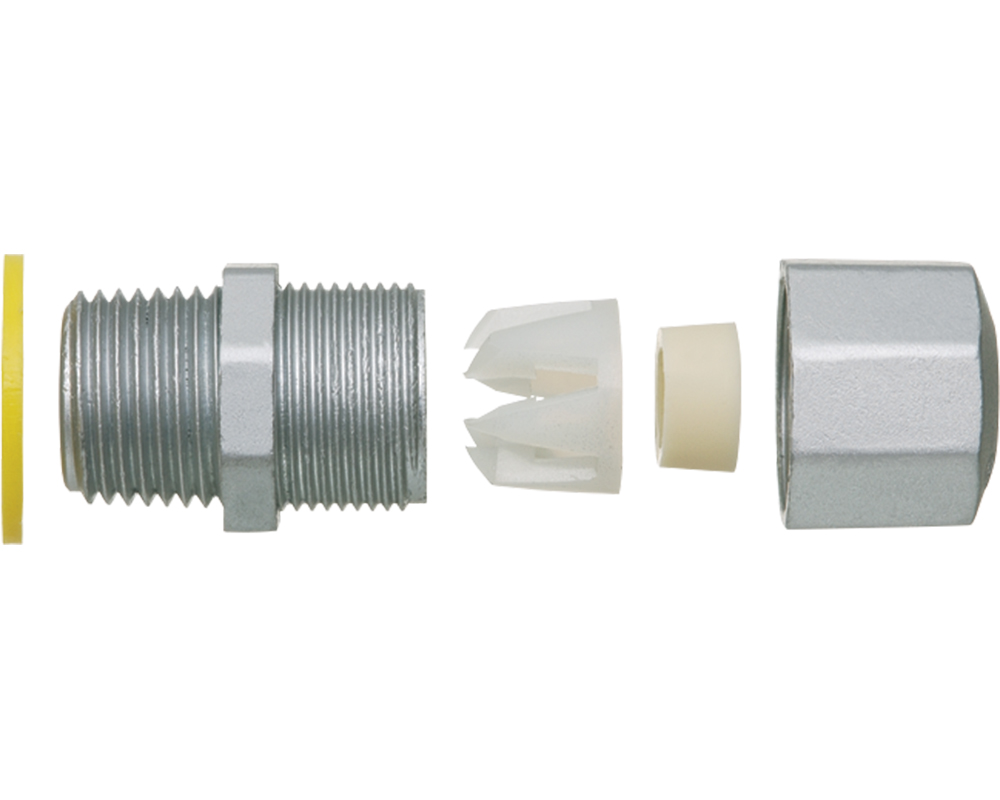

exploded view of components that make up cord connector

Basic Information

Part Number LPCG50Z
Description Low-profile zinc die-cast, liquid-tight, and oil-tight strain relief cord connector furnished with a sealing ring and locknut. Supports .200 to .472 cord range with a 1/2 inch trade size.
UPC 018997361103
Unit Packaging 25pcs
Standard Packaging 100pcs
Country of Origin
Listing

Physical Information

Instructional Video LPCG50Z Instructional Video
Weight0.152 lbs/each
Height0.978"
Width0.978"
Color Zinc
Material(s)Zinc (Body)
Santoprene® (Grommet)
Nylon (Gripper)
Polyethylene (Sealing Ring)

Technical Information

Line Drawing LPCG50Z Line Drawing
Cord Range0.200" - 0.485"
Liquid TightYes
Oil TightYes
Trade Size1/2"
