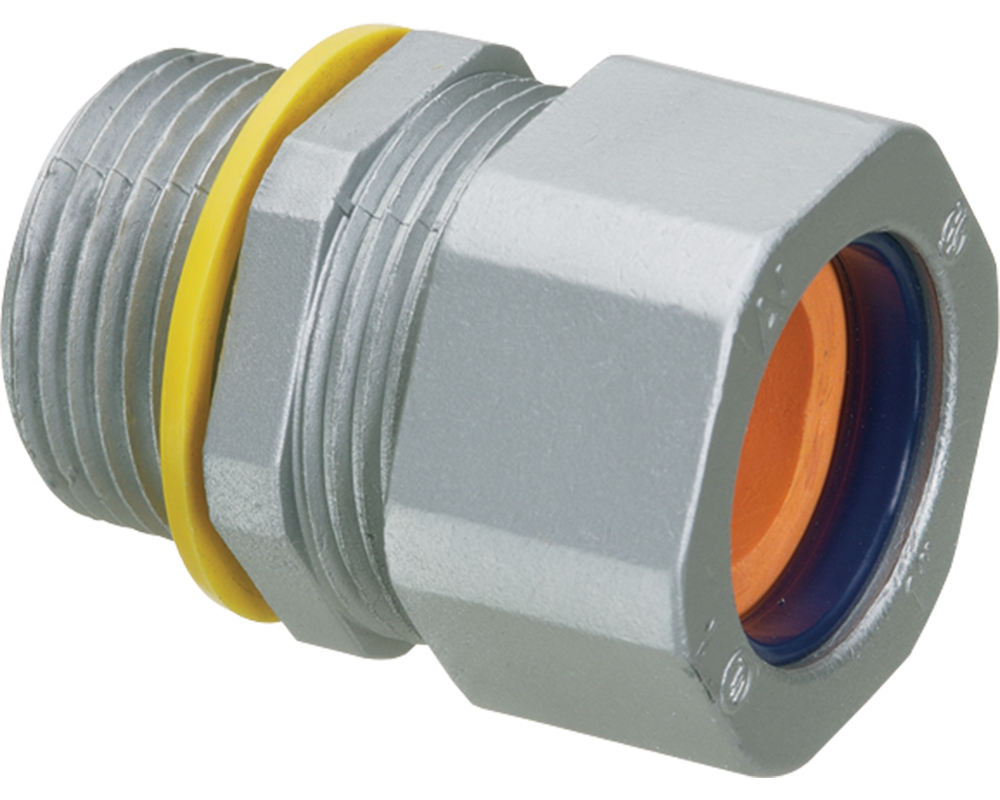

strain relief cord connector

CG1001000 Product Information

Strain Relief Zinc Cord Connector
Catalog Page E-mail

Additional Images

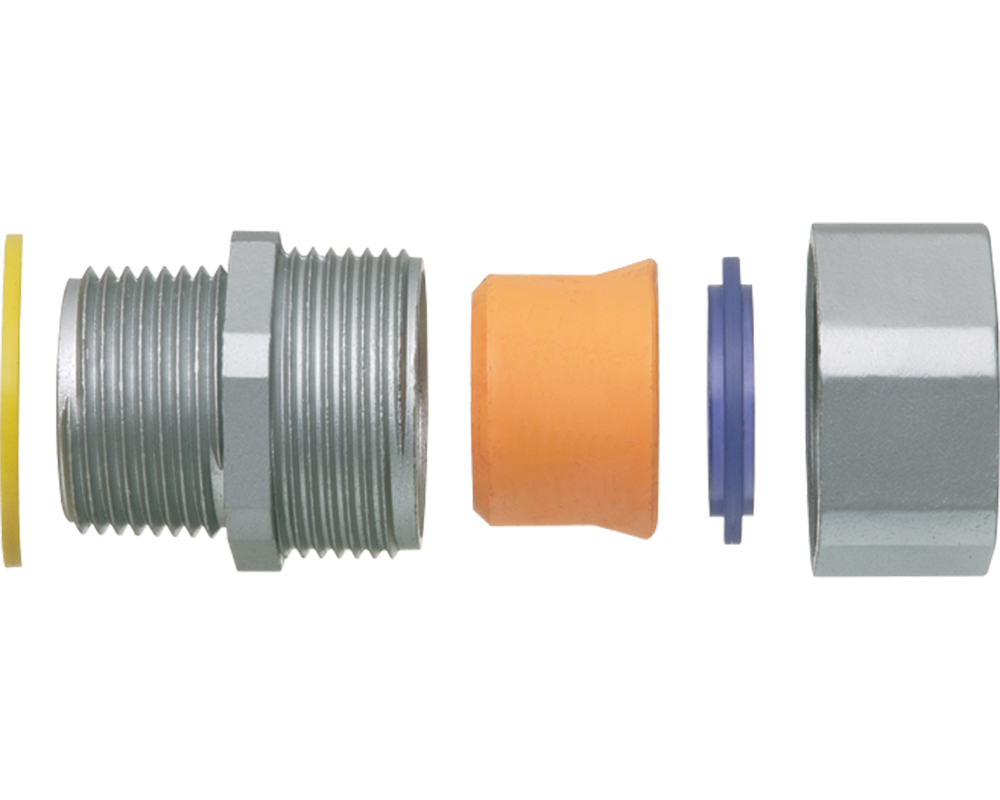

exploded view of the components that make up the cord connector

Basic Information

Part Number CG1001000
Description Zinc die-cast, liquid-tight, and oil-tight strain relief cord connector furnished with a sealing ring and locknut. Supports .875 to 1.000 cord range with a 1 inch trade size.
UPC 018997310002
Unit Packaging 5pcs
Standard Packaging 5pcs
Country of Origin
Listing

Physical Information

Weight0.310 lbs/each
Height2.150"
Width1.370"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing CG1001000 Line Drawing
Cord Range0.875" - 1.000"
Grommet ColorPurple
Liquid TightYes
Oil TightYes
Trade Size1"
