90 degree Snap 2 it connector with insulated throat and 90 degree clip

4010900AST Product Information

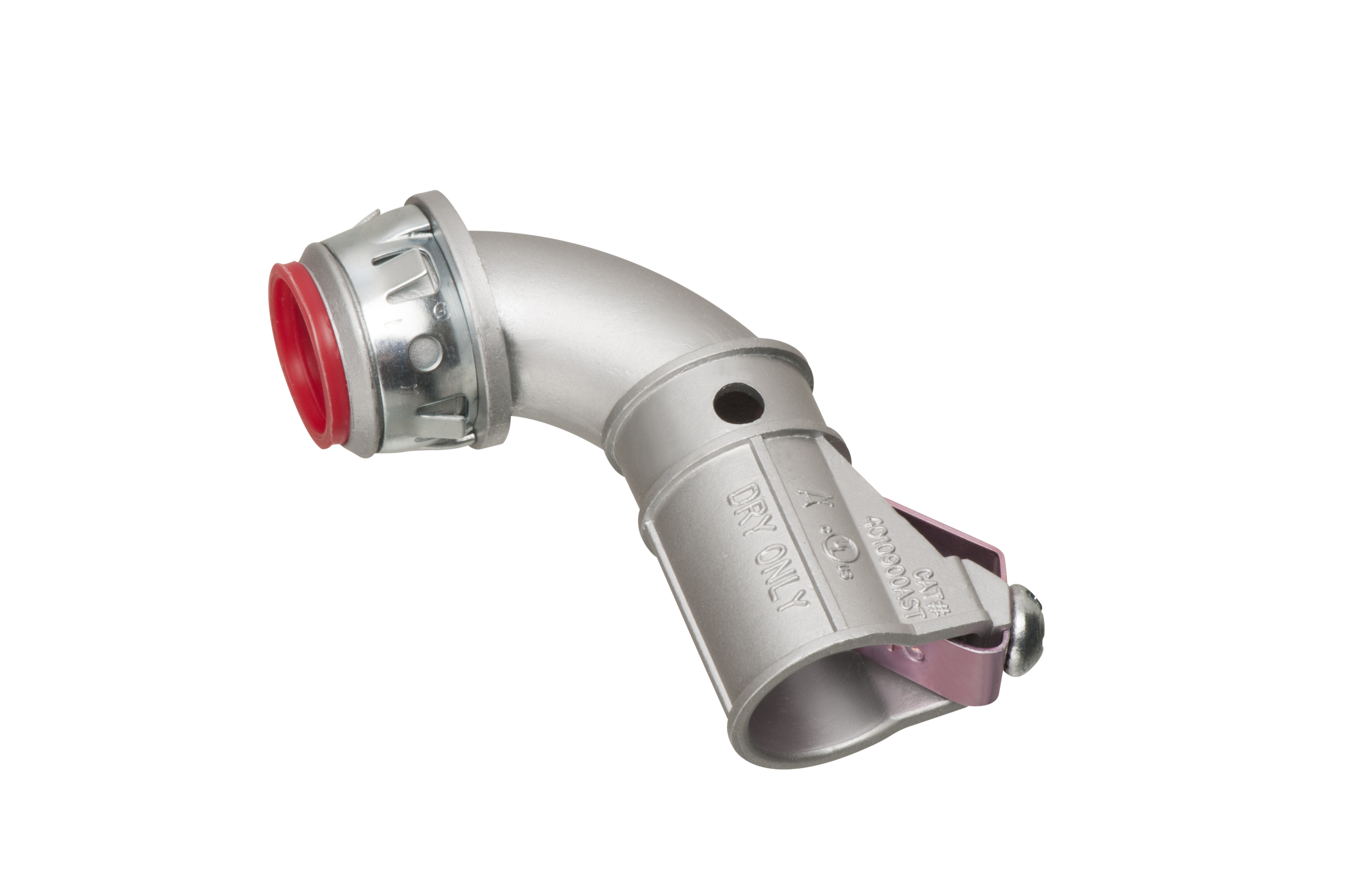

90° Snap2It® Connector with Insulated Throat and 90° Clip.
Specification SheetCatalog Page E-mail

Basic Information

Part Number 4010900AST
Description Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with a removable screw in spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit and comes with Insulated throat. 90 degree connector.
UPC 018997040893
Unit Packaging 25pcs
Standard Packaging 250pcs
Country of Origin
Listing

Physical Information

Weight0.114 lbs/each
Height2.560"
Width1.716"
Color Silver
Material(s)Steel, Aluminum

Technical Information

Line Drawing 4010900AST Line Drawing
Cable Range14/2, 14/3, 14/4, 12/2, 12/3, 12/4, 10/2
Trade Size1"
