SG38AST Product Information

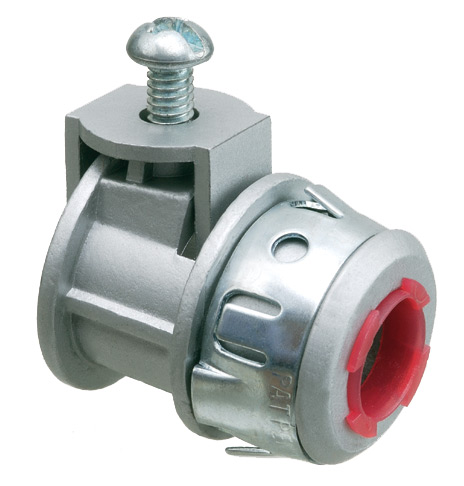

Saddlegrip® Snap-Tite® Connector with Insulated Throat
Catalog Page E-mail

Basic Information

Part Number SG38AST
Description Zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Snaps into knockout with external spring steel clip. Provided with insulated throat. Concrete tight when taped. Supports 0.405" to 0.612" cable range with a 0.400" end stop diameter.
UPC 018997801449
Unit Packaging 50pcs
Standard Packaging 500pcs
Country of Origin
Listing

Physical Information

Weight0.062 lbs/each
Height1.203"
Width1.077"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing SG38AST Line Drawing
Cable Range0.405 - 0.612
End Stop Diameter0.400
Knockout Size(s)1/2"
Trade Size3/8"
