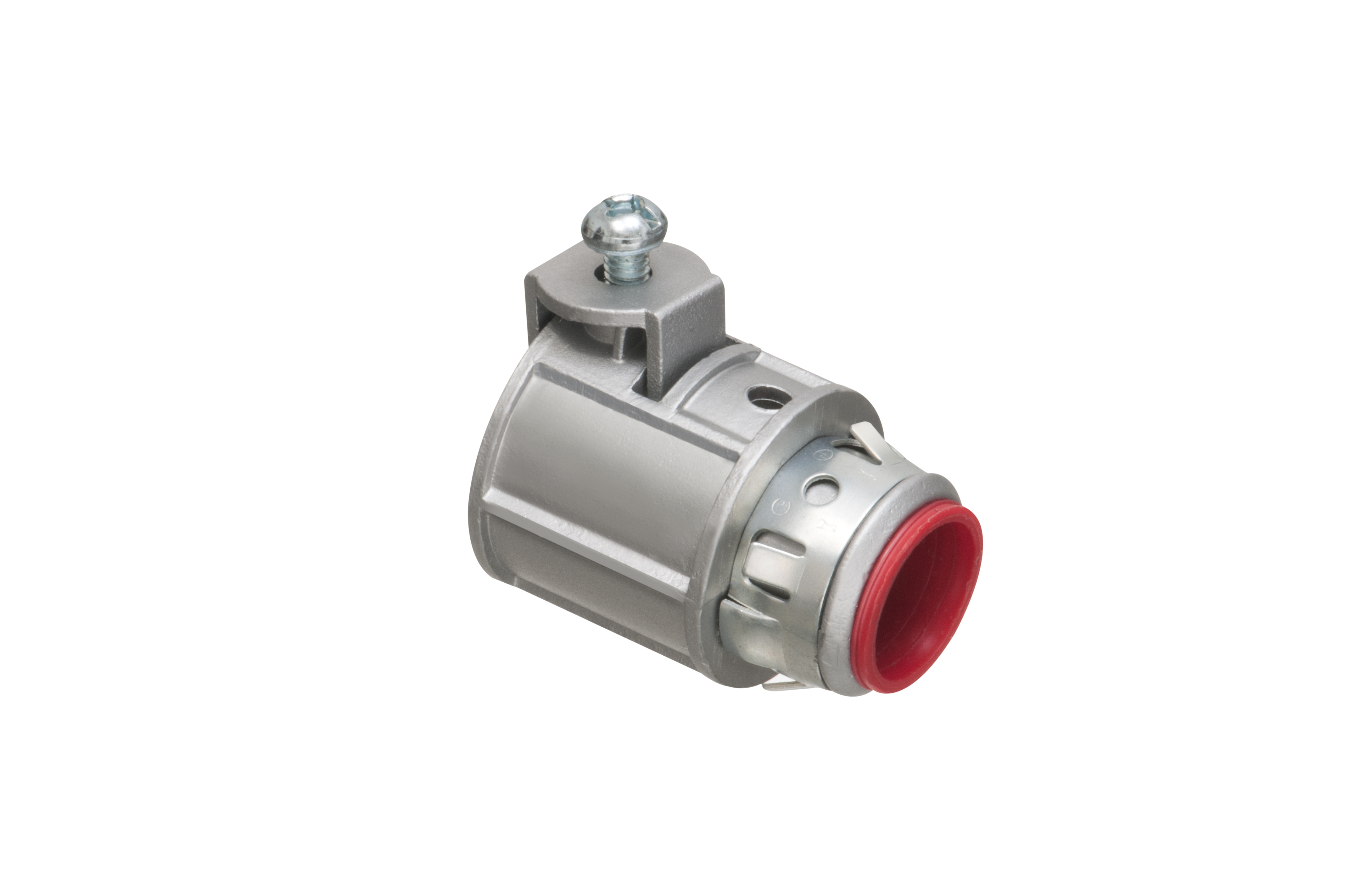

SG50AST Product Information

Saddlegrip® Snap-Tite® Connector with Insulated Throat
Catalog Page E-mail

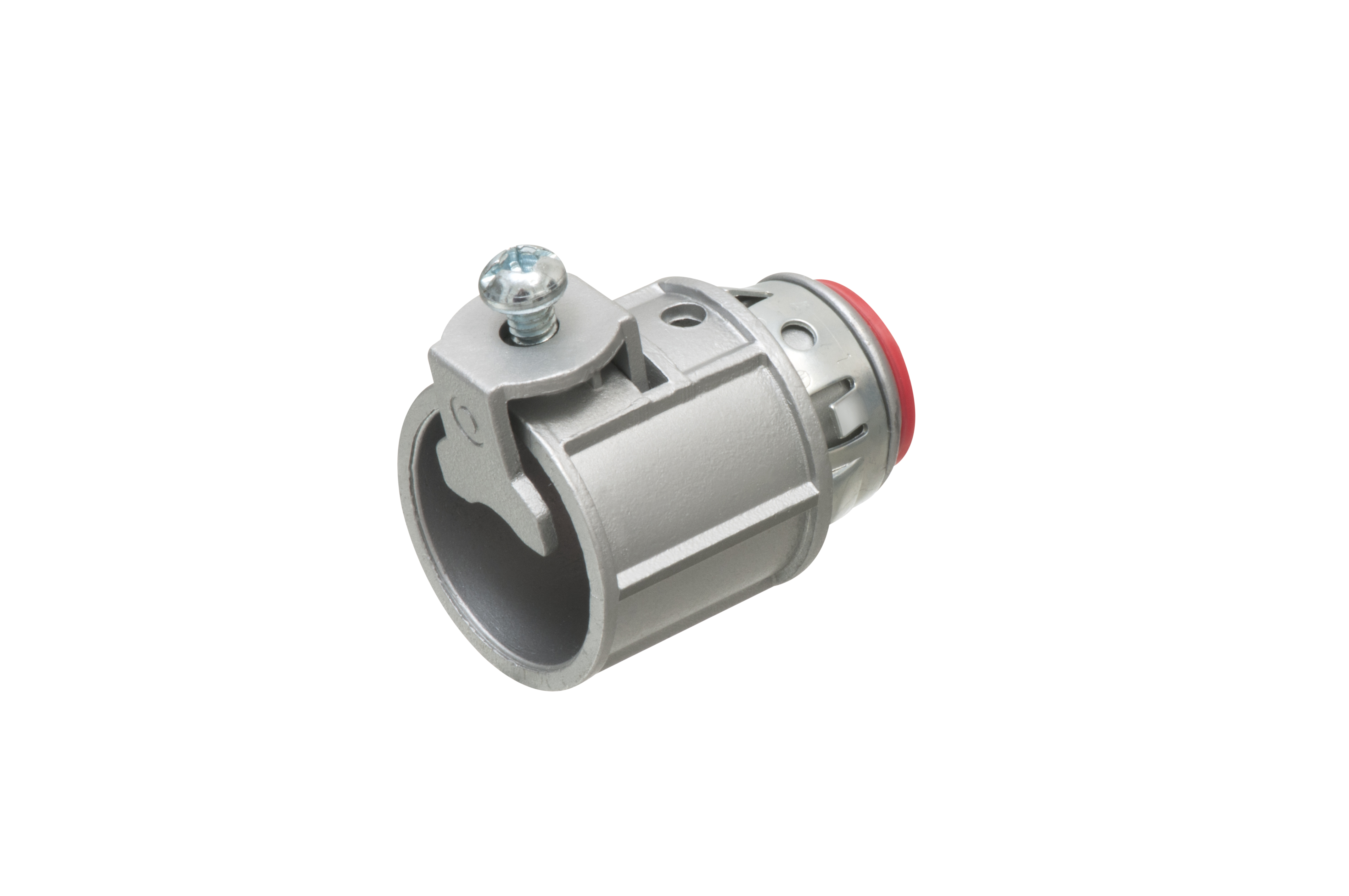

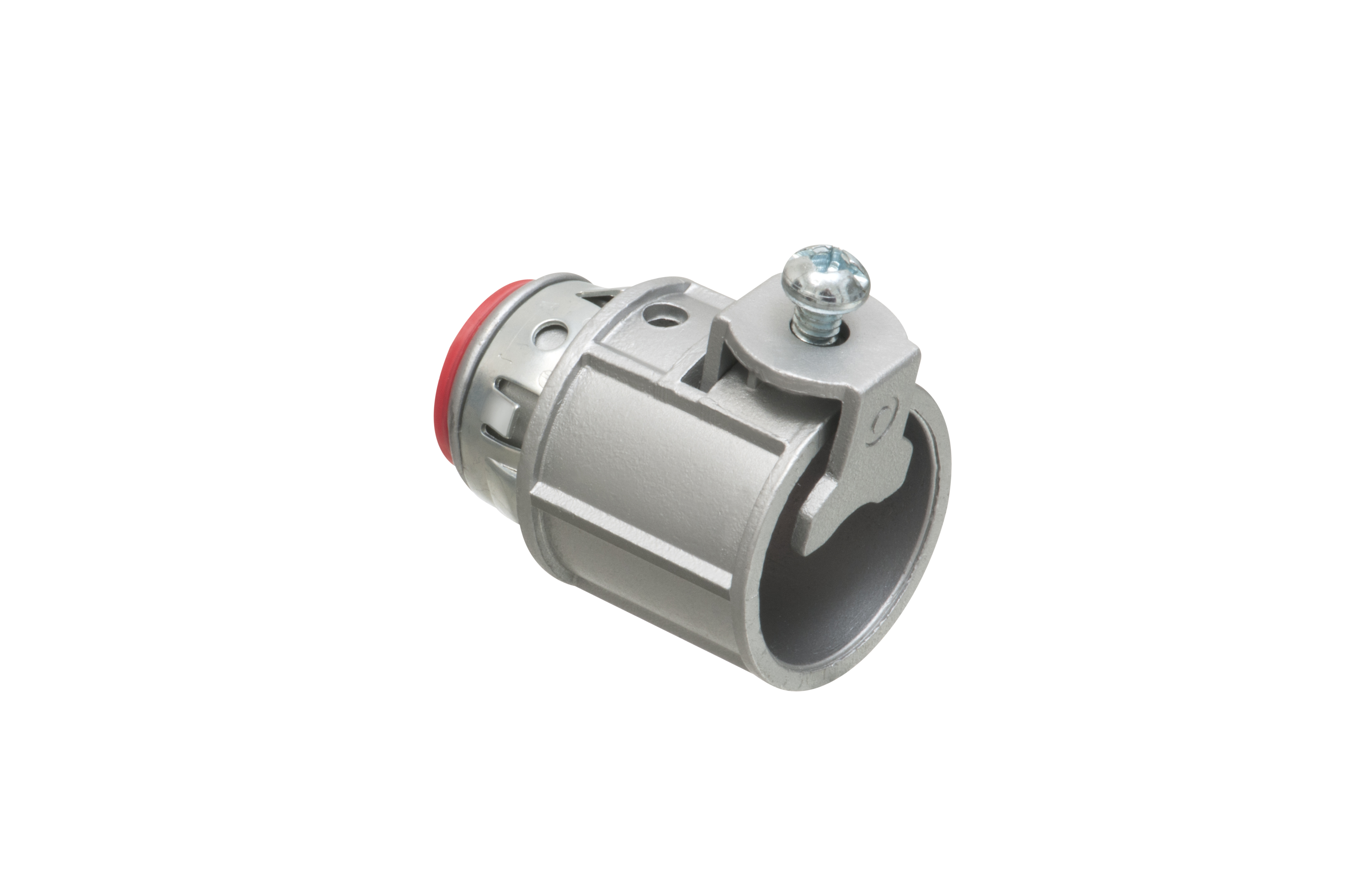

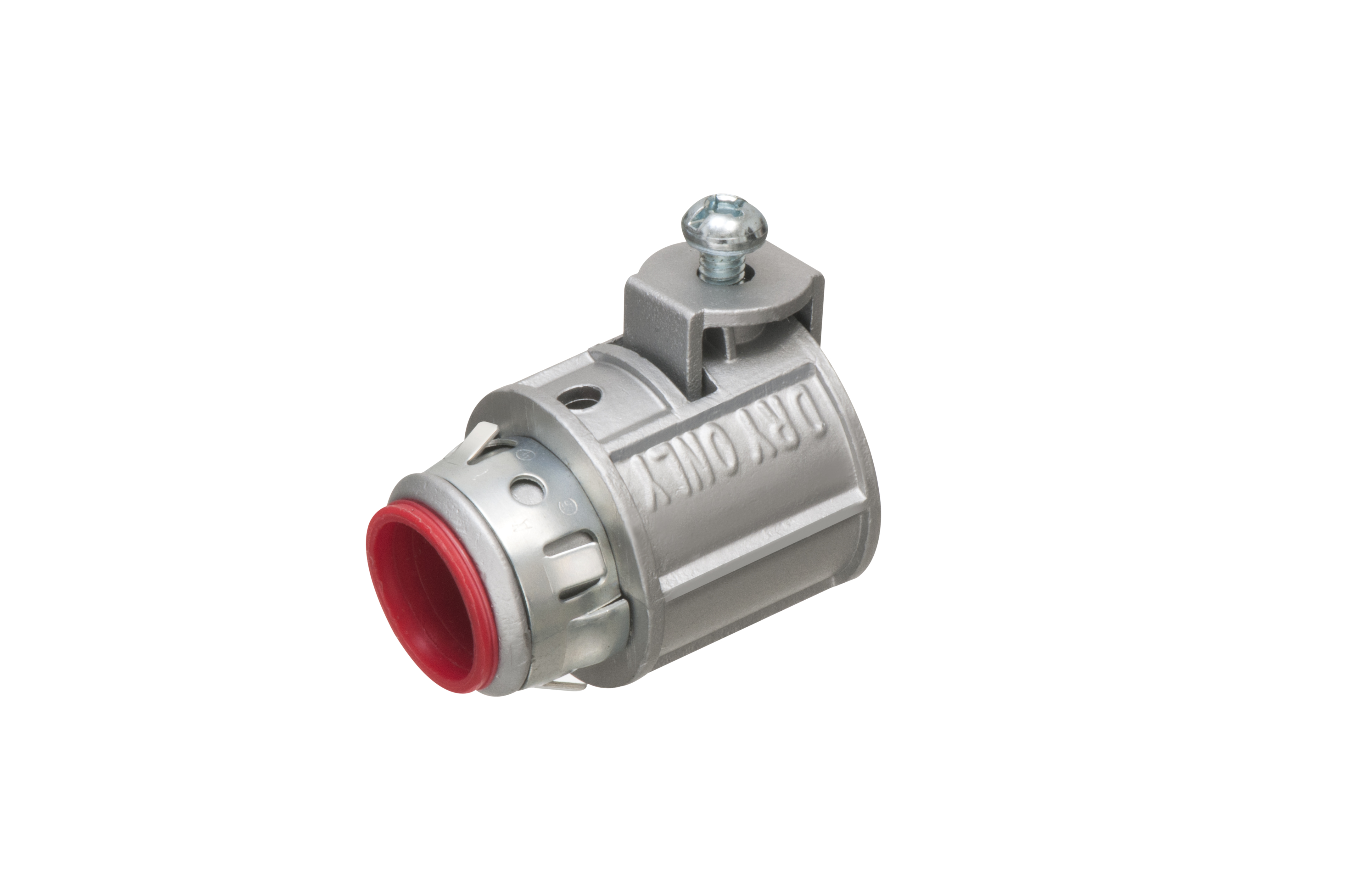

Additional Images

Basic Information

Part Number SG50AST
Description Zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Snaps into knockout with external spring steel clip. Provided with insulated throat. Concrete tight when taped. Supports 0.710" to 0.910" cable range with a 0.620" end stop diameter.
UPC 018997175014
Unit Packaging 50pcs
Standard Packaging 500pcs
Country of Origin
Listing

Physical Information

Weight0.088 lbs/each
Height1.145"
Width1.277"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing SG50AST Line Drawing
Cable Range0.710 - 0.910
End Stop Diameter0.620
Knockout Size(s)1/2"
Trade Size1/2"
