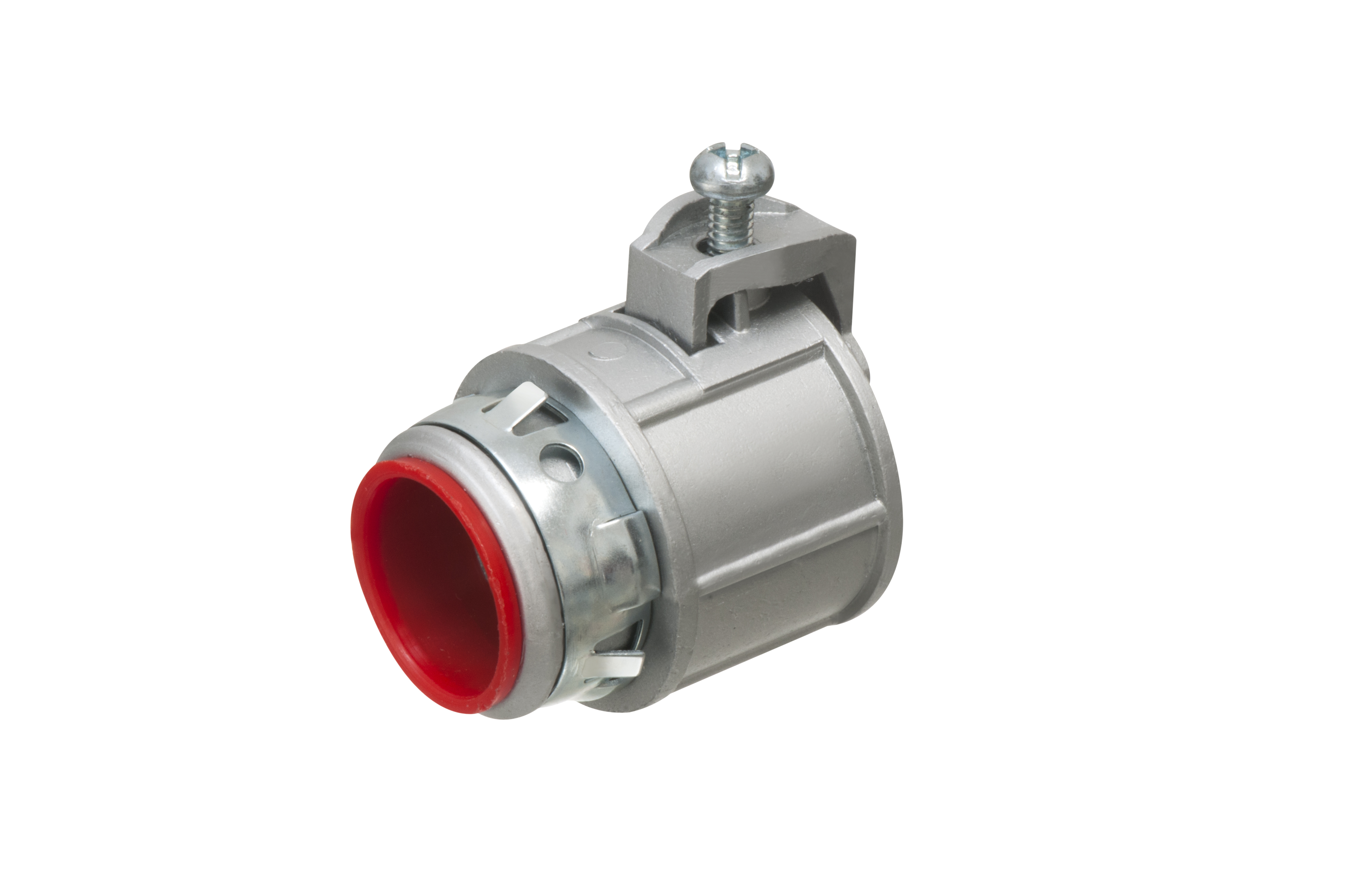

saddle grip connector

SG75AST Product Information

Saddle Grip® Snap-Tite® Connector with Insulated Throat
Catalog Page E-mail

Additional Images

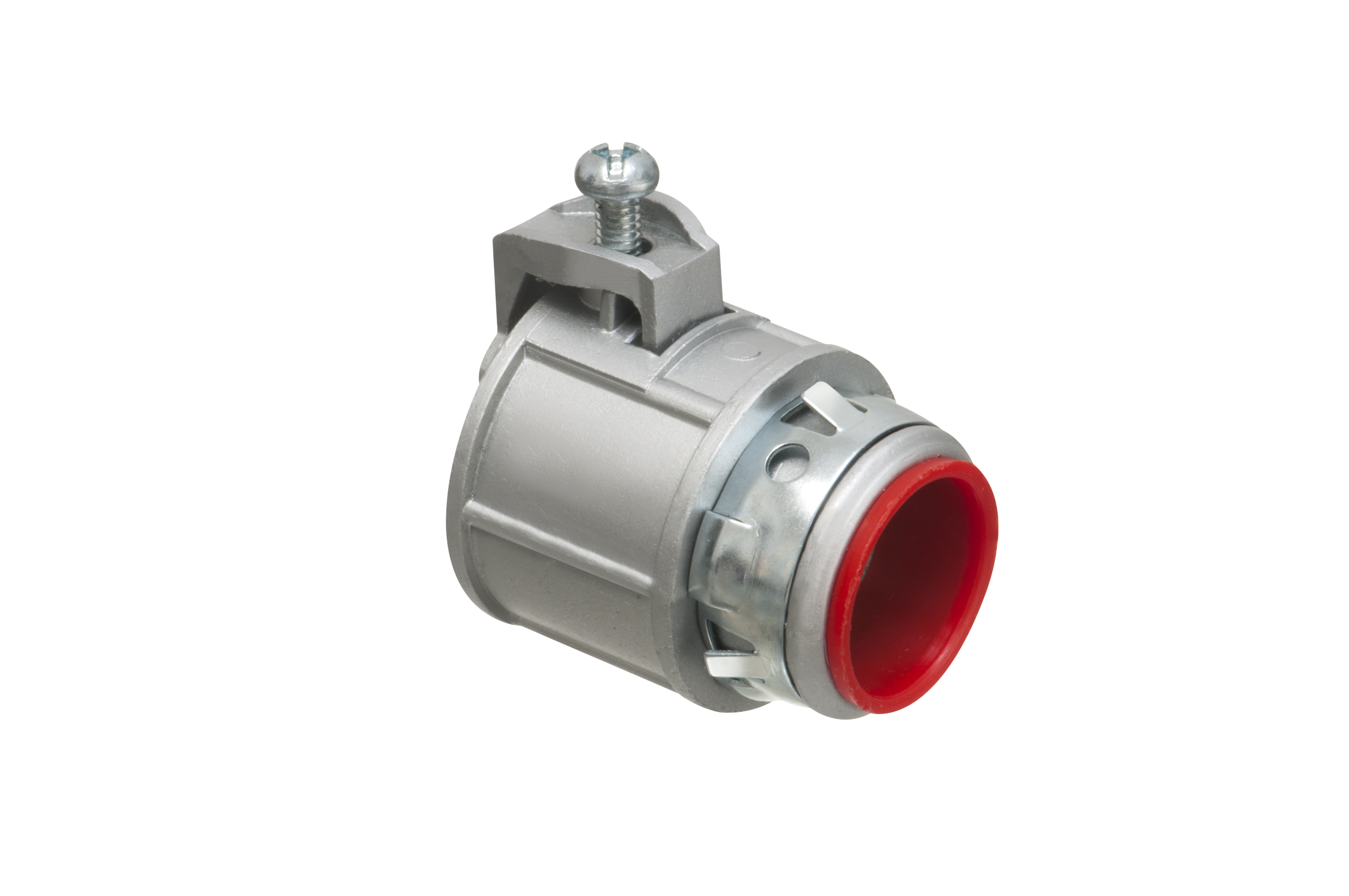

saddle grip connector

Basic Information

Part Number SG75AST
Description Zinc die-cast, 3/4" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Snaps into knockout with external spring steel clip. Provided with insulated throat. Concrete tight when taped. Supports .840 to 1.110 cable range with a .820 end stop diameter.
UPC 018997177551
Unit Packaging 20pcs
Standard Packaging 200pcs
Country of Origin
Listing

Physical Information

Weight0.108 lbs/each
Height1.540"
Width1.570"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing SG75AST Line Drawing
Cable Range0.840 - 1.110
End Stop Diameter0.820
Knockout Size(s)3/4"
Trade Size3/4"
