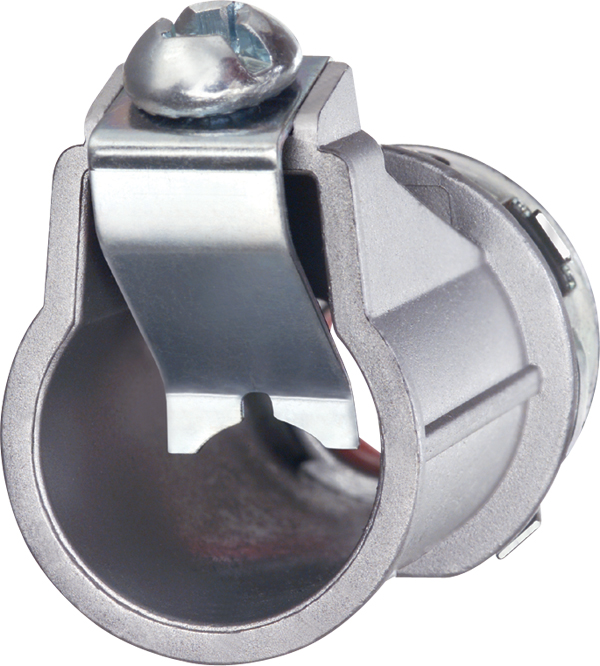

Snap 2 it connector with insulated throat

4010ASTBKT Product Information

SNAP²IT® Connectors with Insulated Throat Bucket
Specification SheetCatalog Page E-mail

Additional Images

focus on two prong clip on Snap 2 it connector Snap 2 it connector installed on MC cable

Basic Information

Part Number 4010ASTBKT
Description Stop wasting time with set screws, locknuts, and clamps. Instead, use Arlington's SNAP2IT line of connectors for quick and easy installations. The tool-less design accepts many cable types, simply snap the cable into the fitting and snap it into the box. That is all there is to it. The fitting is zinc die-cast for strength and longevity, is cULus listed, and has an insulated throat to keep the conductor protected. Fits a 1/2" knockout, has a trade size of 3/8", and has a cable range of 0.405"-0.612". Red tinted internal clip indicates easier insertion of conduit. Sold by the bucket.
UPC 018997403759
Unit Packaging 700pcs
Standard Packaging 700pcs
Country of Origin
Listing

Physical Information

Weight0.061 lbs/each
Height1.473"
Width1.244"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing 4010ASTBKT Line Drawing
Cable Range0.405 - 0.612
Knockout Size(s)1/2"
Trade Size3/8"
