Arlington

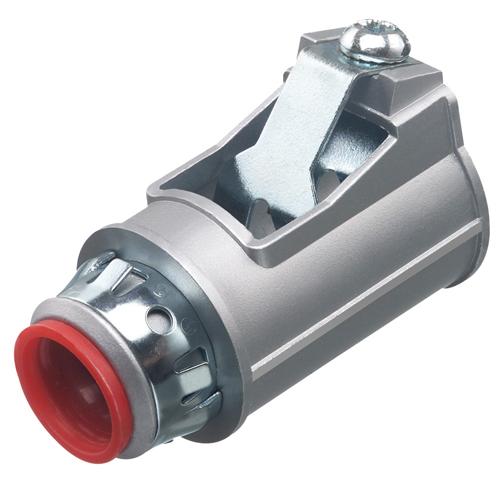

5010AST Product Information

SNAP²IT® Connectors with Insulated Throat
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number 5010AST
Description Stop wasting time with set screws, locknuts, and clamps. Instead, use Arlington's SNAP2IT line of connectors for quick and easy installations. The tool-less design accepts many cable types, simply snap the cable into the fitting and snap it into the box. That is all there is to it. The fitting is zinc die-cast for strength and longevity, is cULus listed, and has an insulated throat to keep the conductor protected. Fits a 1/2" knockout, has a trade size of 1/2", and has a cable range of 0.560"-0.850".
UPC 018997005175
Unit Packaging 25pcs
Standard Packaging 250pcs
Country of Origin
Listing

Physical Information

Weight0.100 lbs/each
Height2.210"
Width1.514"
ColorSIlver
Material(s)Zinc

Technical Information

Line Drawing 5010AST Line Drawing
Cable Range0.560 - 0.850
Knockout Size(s)1/2"
Trade Size1/2"
