7510AST Product Information

SNAP²IT® Connectors with Insulated Throat
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number 7510AST

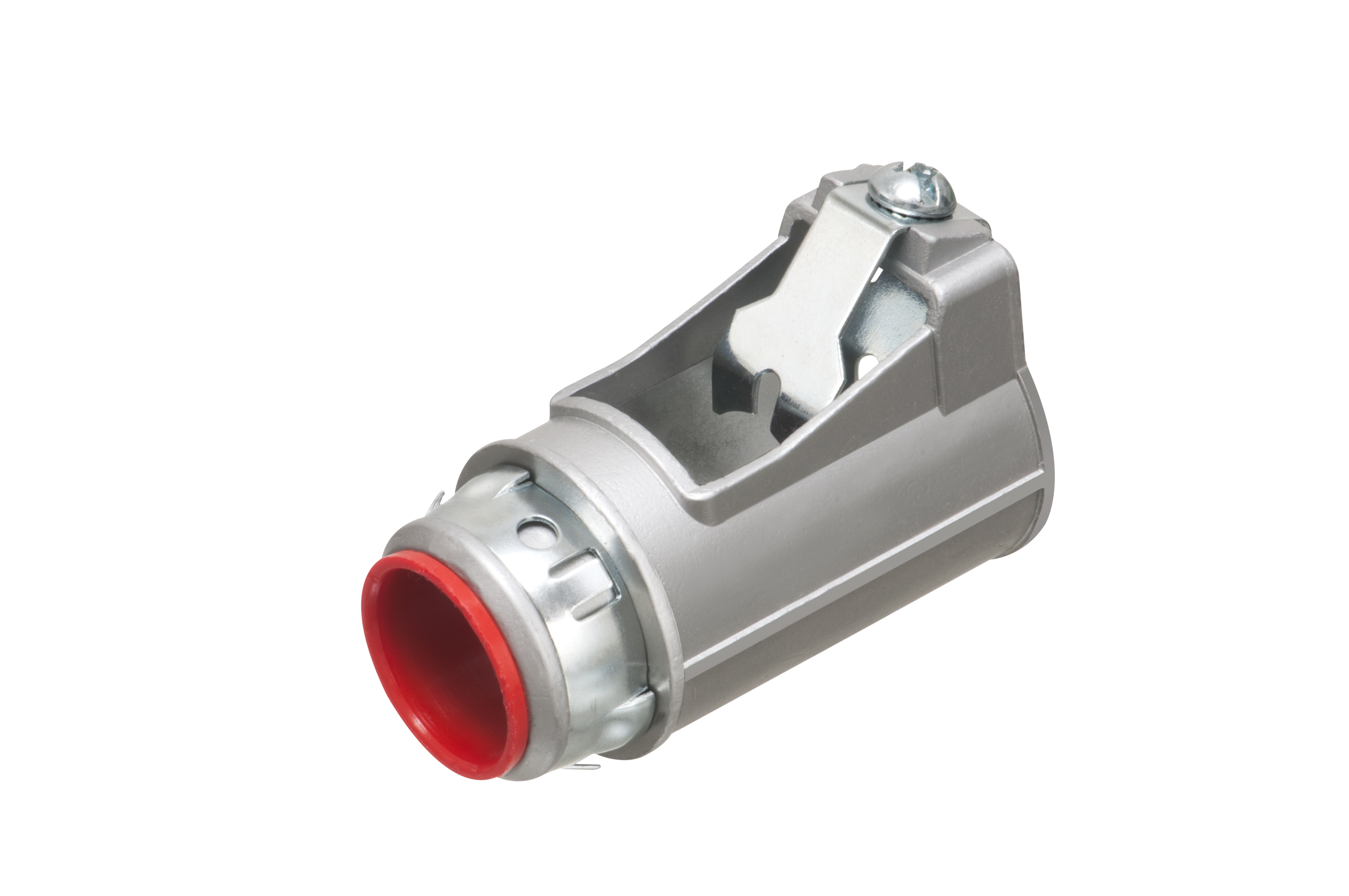

Description Stop wasting time with set screws, locknuts, and clamps. Instead, use Arlington's SNAP2IT line of connectors for quick and easy installations. The tool-less design accepts many cable types, simply snap the cable into the fitting and snap it into the box. That is all there is to it. The fitting is zinc die-cast for strength and longevity, is cULus listed, and has an insulated throat to keep the conductor protected. Fits a 3/4" knockout, has a trade size of 3/4", and has a cable range of 0.895"-1.035".
UPC 018997550903
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.129 lbs/each
Height2.496"
Width1.709"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing 7510AST Line Drawing
Cable Range0.895 - 1.035
Knockout Size(s)3/4"
Trade Size3/4"
