Snap 2 it connector with locknut and insulated throat

5010A Product Information

SNAP²IT® Connectors with Locknut and Insulated Throat
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

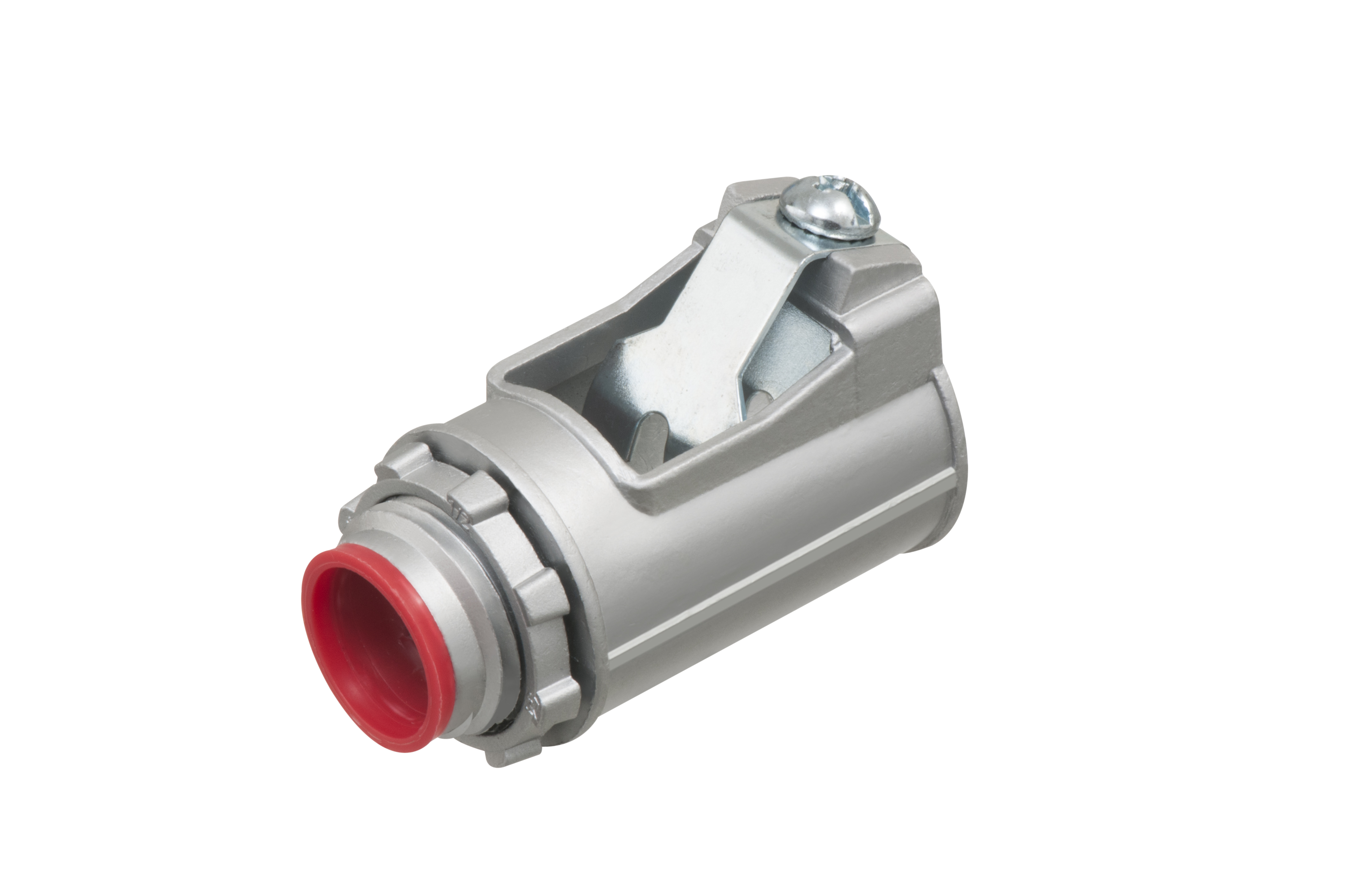

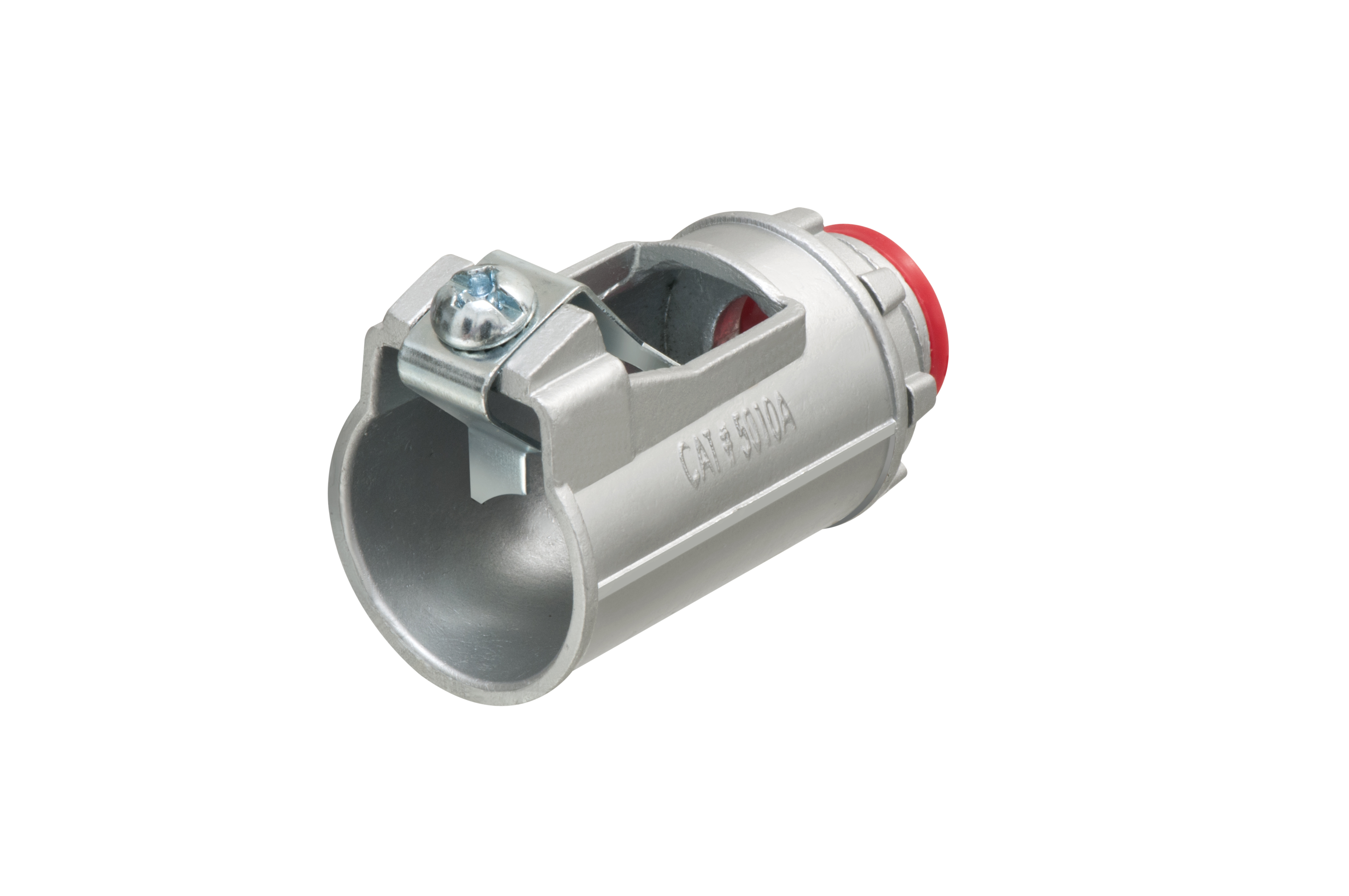

Part Number 5010A

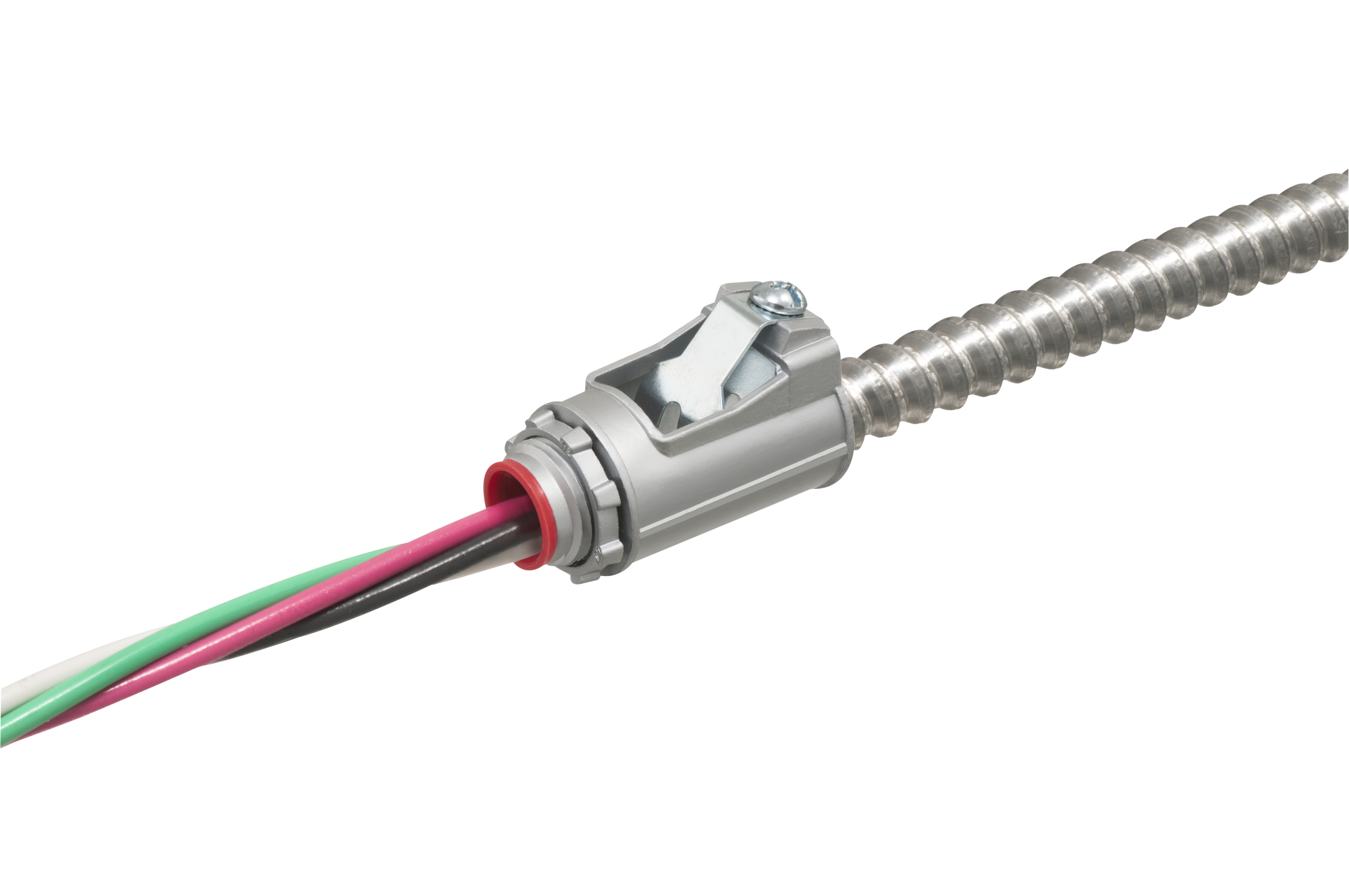

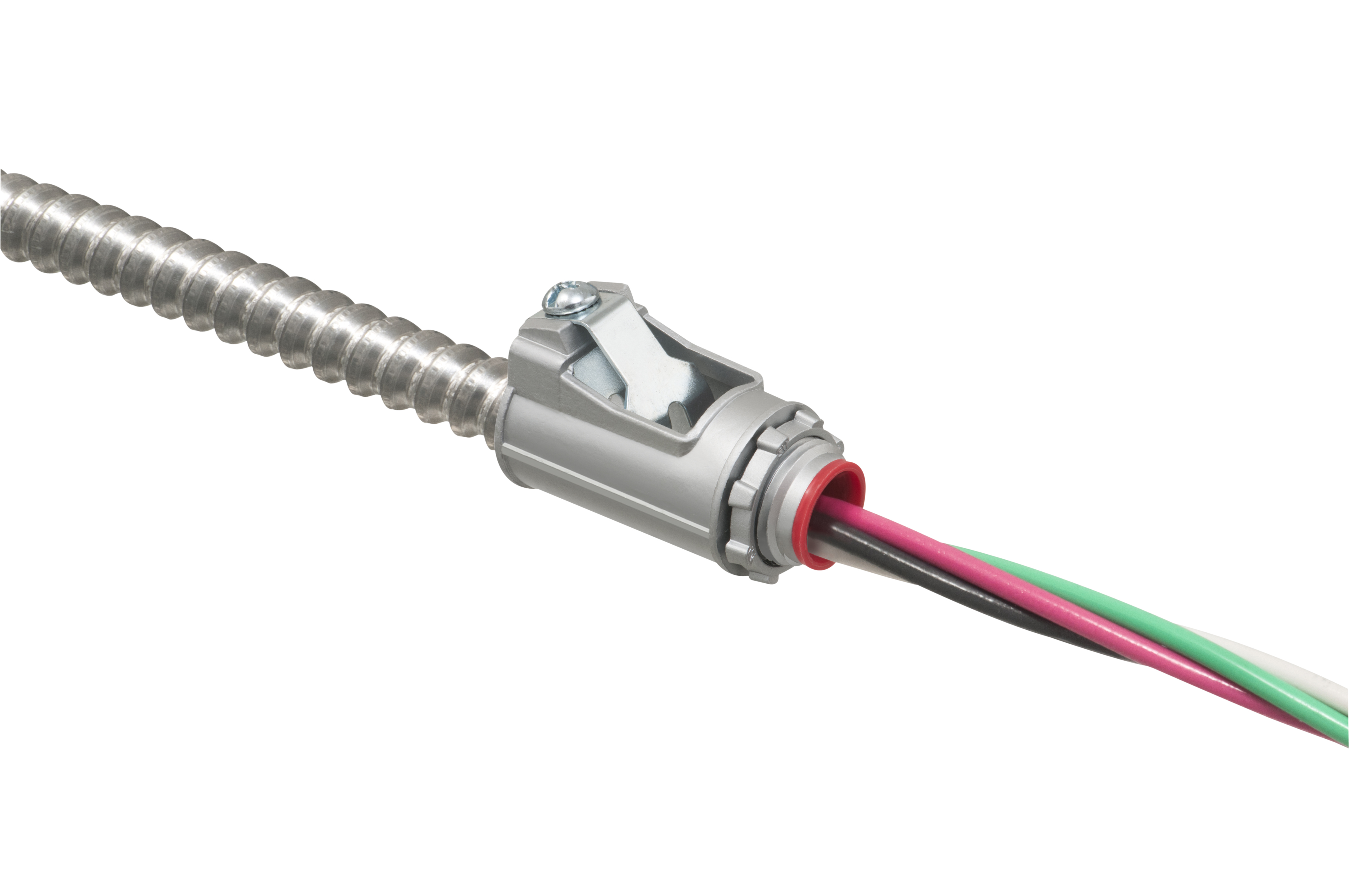

Description Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly onto the conduit with an internal spring steel clip and then secures into knockout with locknut. Concrete tight when taped. Provided with insulated throat. Has a cable range of 0.560 - 0.850 inches.
UPC 018997012999
Unit Packaging 25pcs
Standard Packaging 250pcs
Country of Origin

Physical Information

Weight0.119 lbs/each
Color Silver
Material(s)Zinc die-cast

Technical Information

Line Drawing 5010A Line Drawing
Cable Range0.560" - 0.850"
Knockout Size(s)1/2"
Trade Size1/2"
