SNAP 2 it connector with insulated throat

380AST Product Information

SNAP²IT® Connectors with Insulated Throat
Specification SheetCatalog Page E-mail

Additional Images

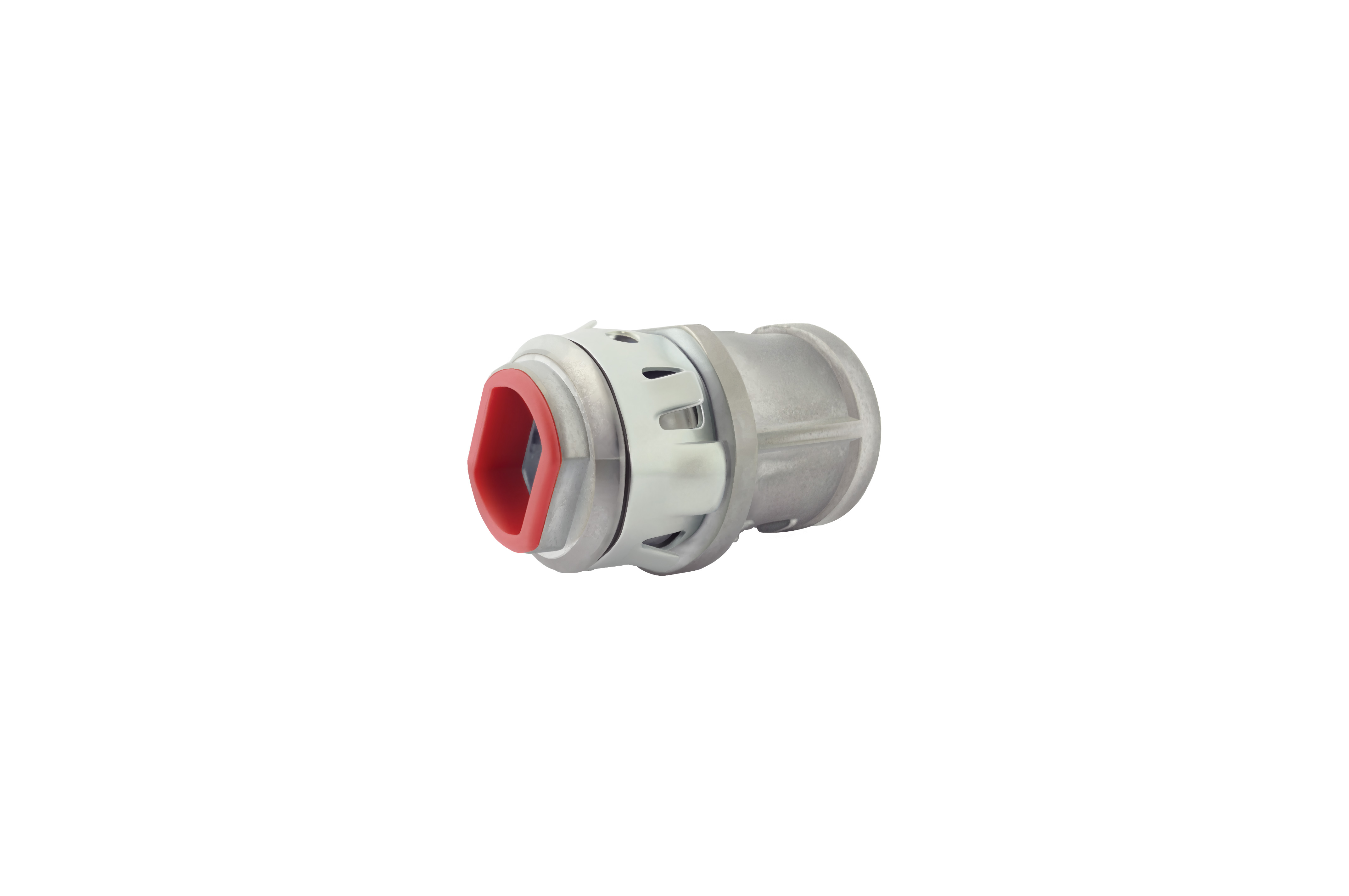

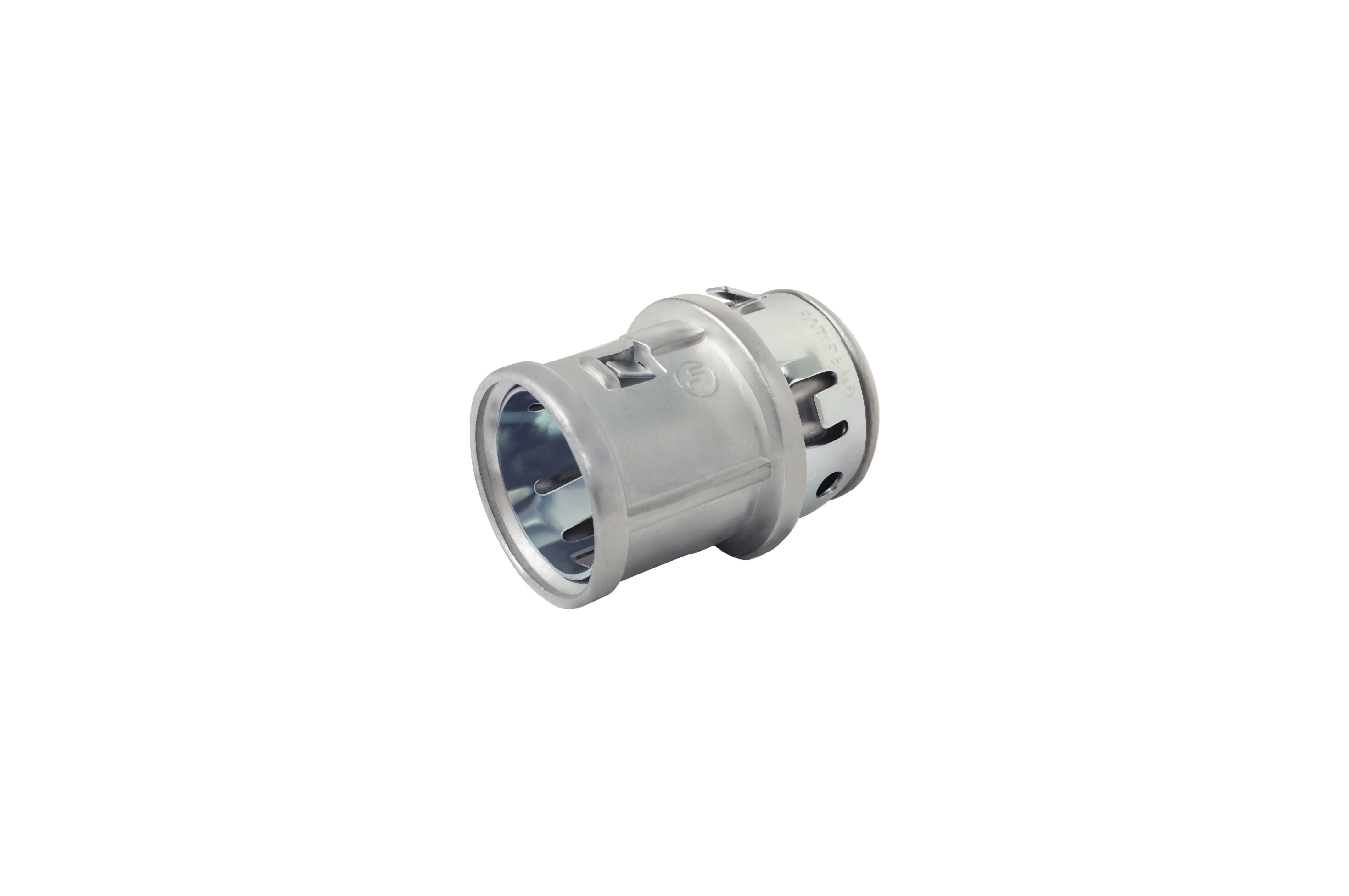

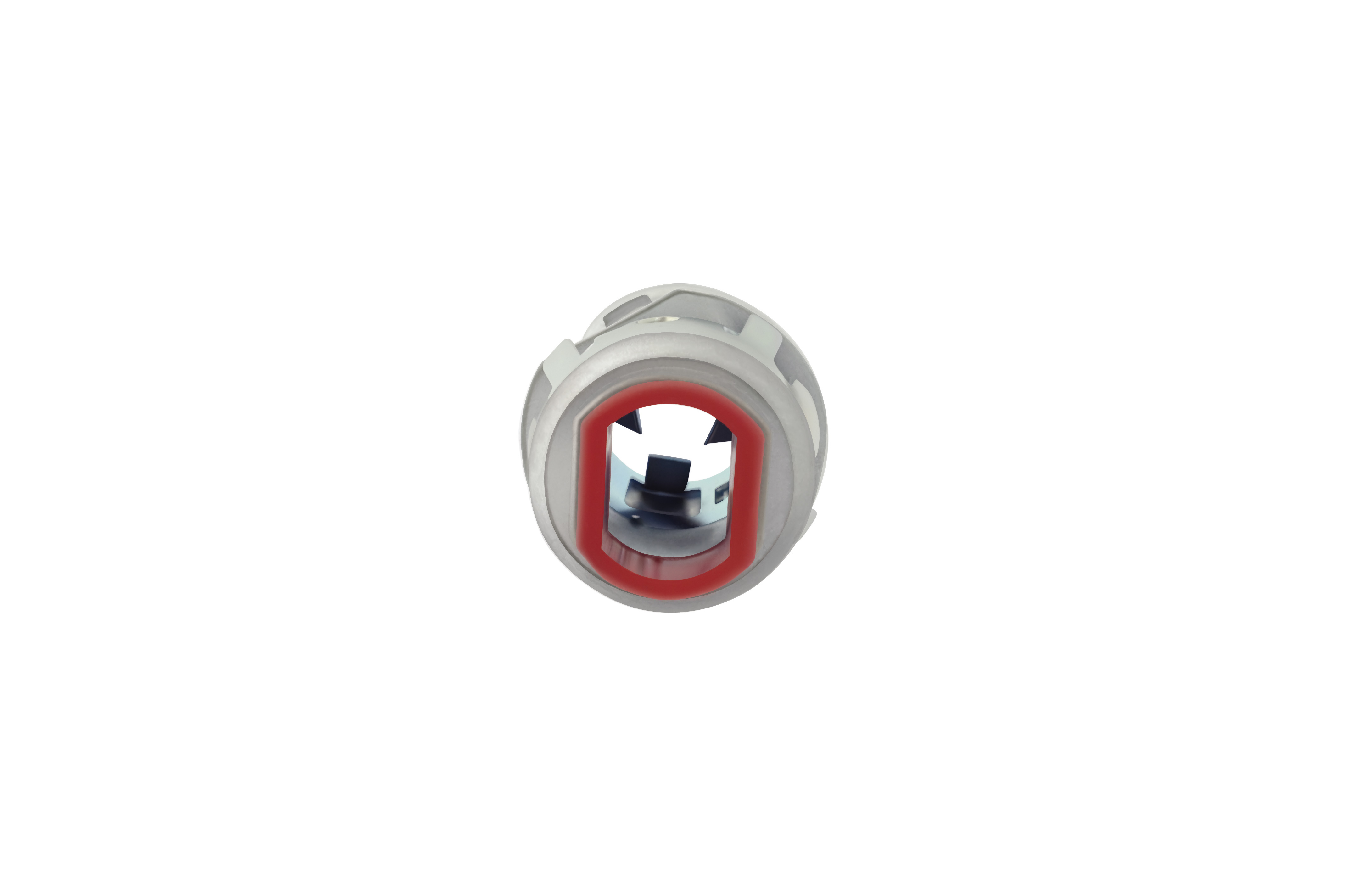

SNAP 2 it connector with insulated throat cable side SNAP 2 it connector with insulated throat inside view

Basic Information

Part Number 380AST
Description Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with internal spring steel clip and then snaps into knockout with an external spring steel clip no tools required. Concrete tight when taped. Has Rectangualer End stop and provided with insulated throat.
UPC 018997003829
Unit Packaging 50pcs
Standard Packaging 500pcs
Country of Origin
Listing

Physical Information

Weight0.064 lbs/each
Height1.410"
Width0.850"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing 380AST Line Drawing
Cable Range0.405 - 0.612
Knockout Size(s)1/2"
Trade Size3/8"
