3838AST Product Information

SNAP²IT® Duplex Connectors
Catalog Page E-mail

Basic Information

Part Number 3838AST

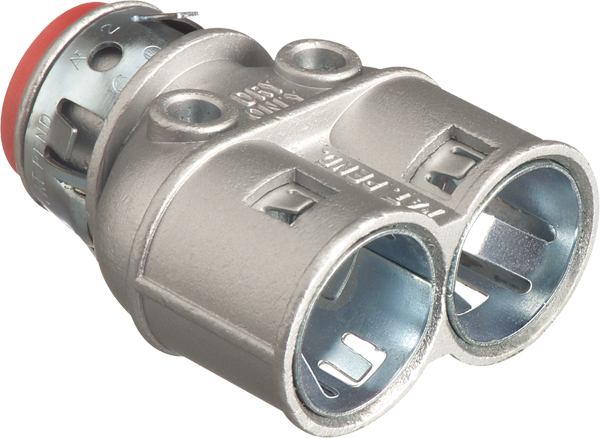

Description Stop wasting time with set screws, locknuts, and clamps. Instead, use Arlington's SNAP2IT line of duplex connectors for quick and easy installations. The tool-less design accepts many cable types, simply snap the cables into the fitting and snap it into the box. That is all there is to it. The fitting is zinc die-cast for strength and longevity, is cULus listed, and has an insulated throat to keep the conductor protected. Fits a 1/2" knockout, has a trade size of 3/8", and accommodates two cables ranging between 0.405"-0.612" each.
UPC 018997362308
Unit Packaging 25pcs
Standard Packaging 100pcs
Country of Origin
Listing

Physical Information

Weight0.108 lbs/each
Height2.154"
Width1.605"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing 3838AST Line Drawing
Cable Range(2) 0.405 - 0.612
Knockout Size(s)1/2"
Trade Size3/8"
