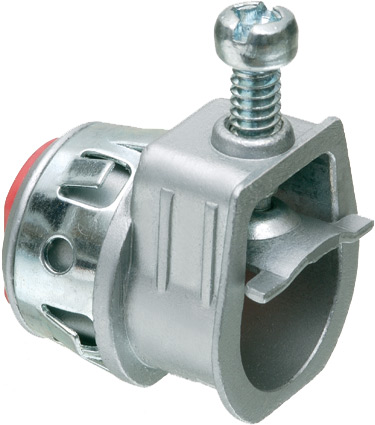

L15AST Product Information

Take All Snap-Tite® Connectors
Catalog Page E-mail

Basic Information

Part Number L15AST
Description Single screw zinc die-cast saddle type connector with spring steel clip for NM, Flex, AC, ACG90, AC90 Teck90 MCI steel and aluminum jacketed cables. Cable range .460 to .585 with an end stop diameter of .340 x .430.
UPC 018997800442
Unit Packaging 50pcs
Standard Packaging 500pcs
Country of Origin
Listing

Physical Information

Weight0.056 lbs/each
Height1.096"
Width1.096"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing L15AST Line Drawing
Cable Range0.460 - 0.585
End Stop Diameter0.340 x 0.430
Knockout Size(s)1/2"
Trade Size3/8"
