FLBC101BLTK Product InformationBlack Trim Kit with Threaded Plugs Specification SheetCatalog Page E-mail |
Basic Information
| Part Number | FLBC101BLTK |
| Description | Trim kits for Arlington's Non Metallic concrete floor boxes. Black. |
| UPC-A | 018997138248 |
| Unit Packaging | 1pc |
| Standard Packaging | 1pc |
| Country of Origin |  |
Physical Information
| Instructional Video | FLBC101BLTK Instructional Video |
| Instruction Sheet | FLBC101BLTK Instruction Sheet |
| Weight | 0.776 lbs/each |
| Height | 6.500" |
| Width | 4.125" |
| Color |  Black (Cover) |
| Material(s) | Plastic |
Technical Information
| Line Drawing | FLBC101BLTK Line Drawing |
| Submittal Drawing | FLBC101BLTK Submittal Drawing |
| Style | Concrete rough-in floor box trim kit with threaded plugs |
| Trade Size | 1-Gang |
| Usage | For new concrete |

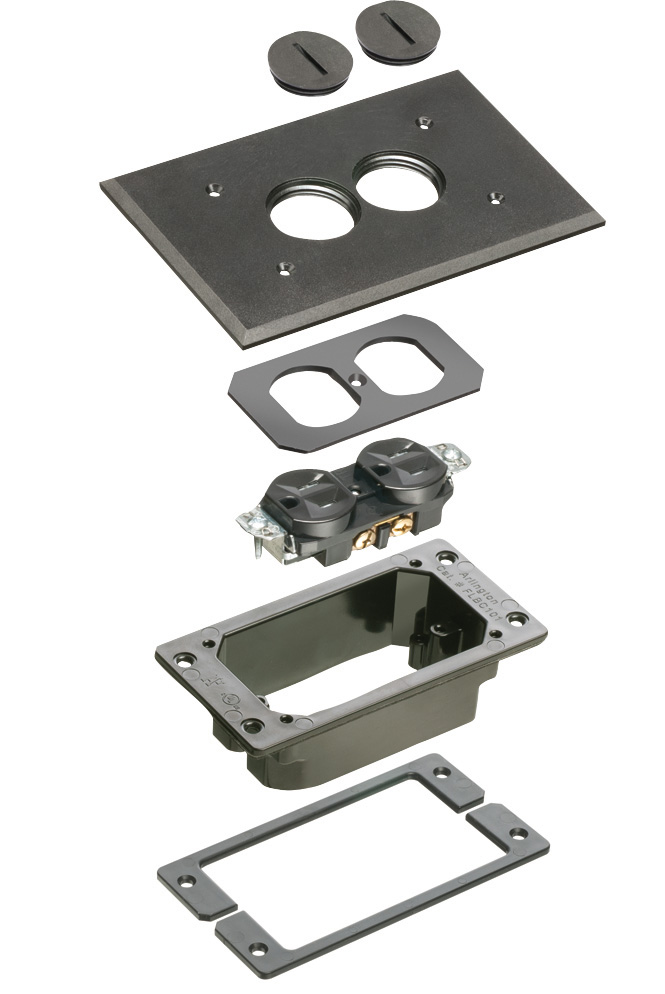

Comes With
| (2) | Threaded Plugs |
| (1) | Tamper-Resistant Duplex Receptacle |
| (1) | Mounting bracket with gasket |
| (1) | Cover plate with gasket |
| (1) | Back Plate |
| (1) | 3/4" Spacer Set |
| (1) | 1/8" Spacer Set |
| (1) | 1/4" Spacer Set |
| (1) | 1/2" Spacer Set |
| (4) | #8 x 5/8" Long Sheet Metal Screws |
| (4) | #8 x 1-1/4" Long Sheet Metal Screws |
| (5) | #6-32 x 1/2" Long Screws |
