Arlington

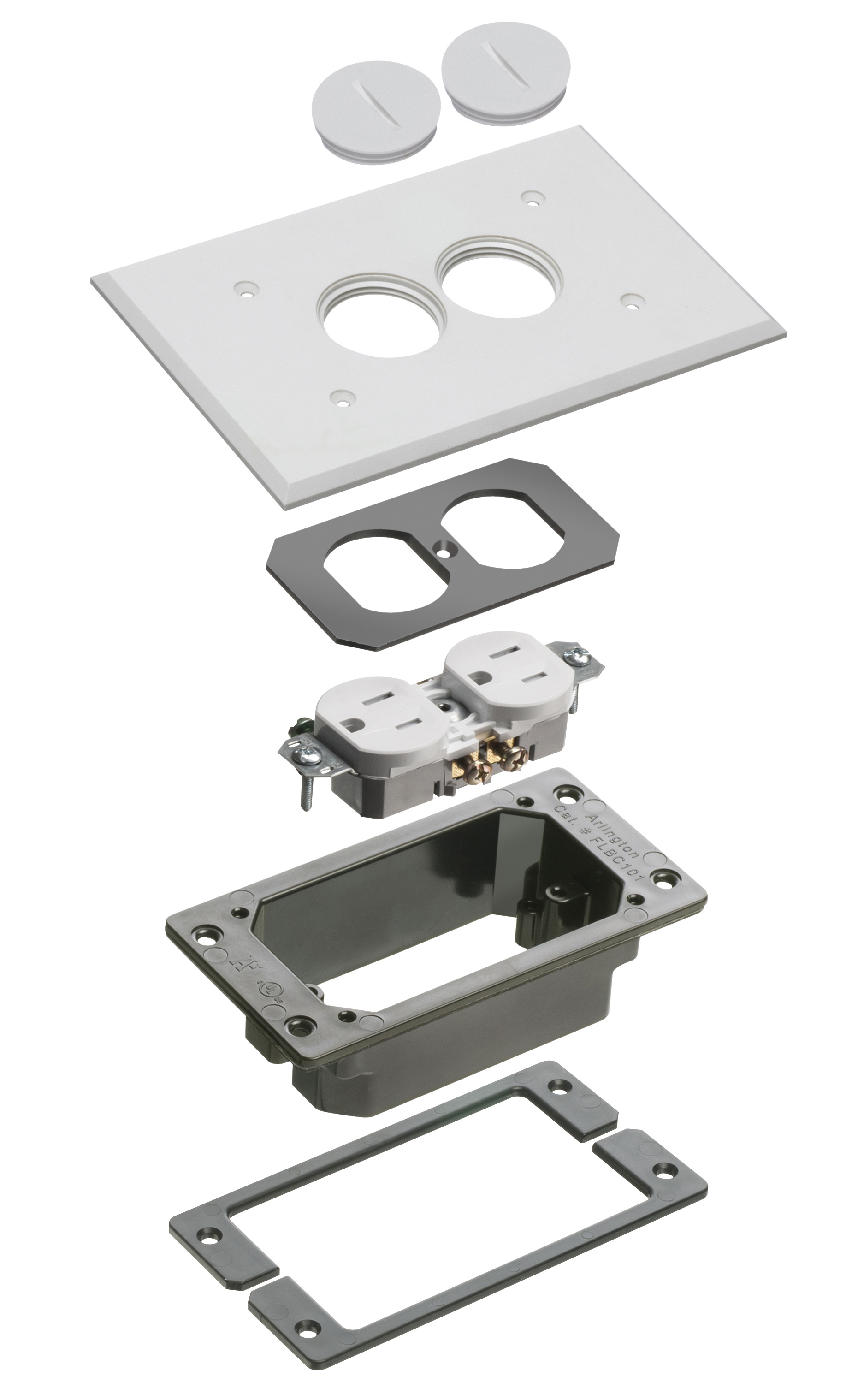

exploded view of components included in floor box trim kit

FLBC101WTK Product Information

White Trim Kit with Threaded Plugs
Specification SheetCatalog Page E-mail

Basic Information

Part Number FLBC101WTK
Description Trim kits for Arlington's Non Metallic concrete floor boxes. White.
UPC 018997138217
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin

Physical Information

Instructional Video FLBC101WTK Instructional Video
Instruction Sheet FLBC101WTK Instruction Sheet
Weight0.776 lbs/each
Height6.500"
Width4.125"
Color White (Cover)
Material(s)Plastic

Technical Information

Line Drawing FLBC101WTK Line Drawing
StyleConcrete rough-in floor box trim kit with threaded plugs
Trade Size1-Gang
UsageFor new concrete

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)Mounting bracket with gasket
(1)Cover plate with gasket
(1)Back Plate
(1)3/4" Spacer Set
(1)1/8" Spacer Set
(1)1/4" Spacer Set
(1)1/2" Spacer Set
(4)#8 x 5/8" Long Sheet Metal Screws
(4)#8 x 1-1/4" Long Sheet Metal Screws
(5)#6-32 x 1/2" Long Screws
