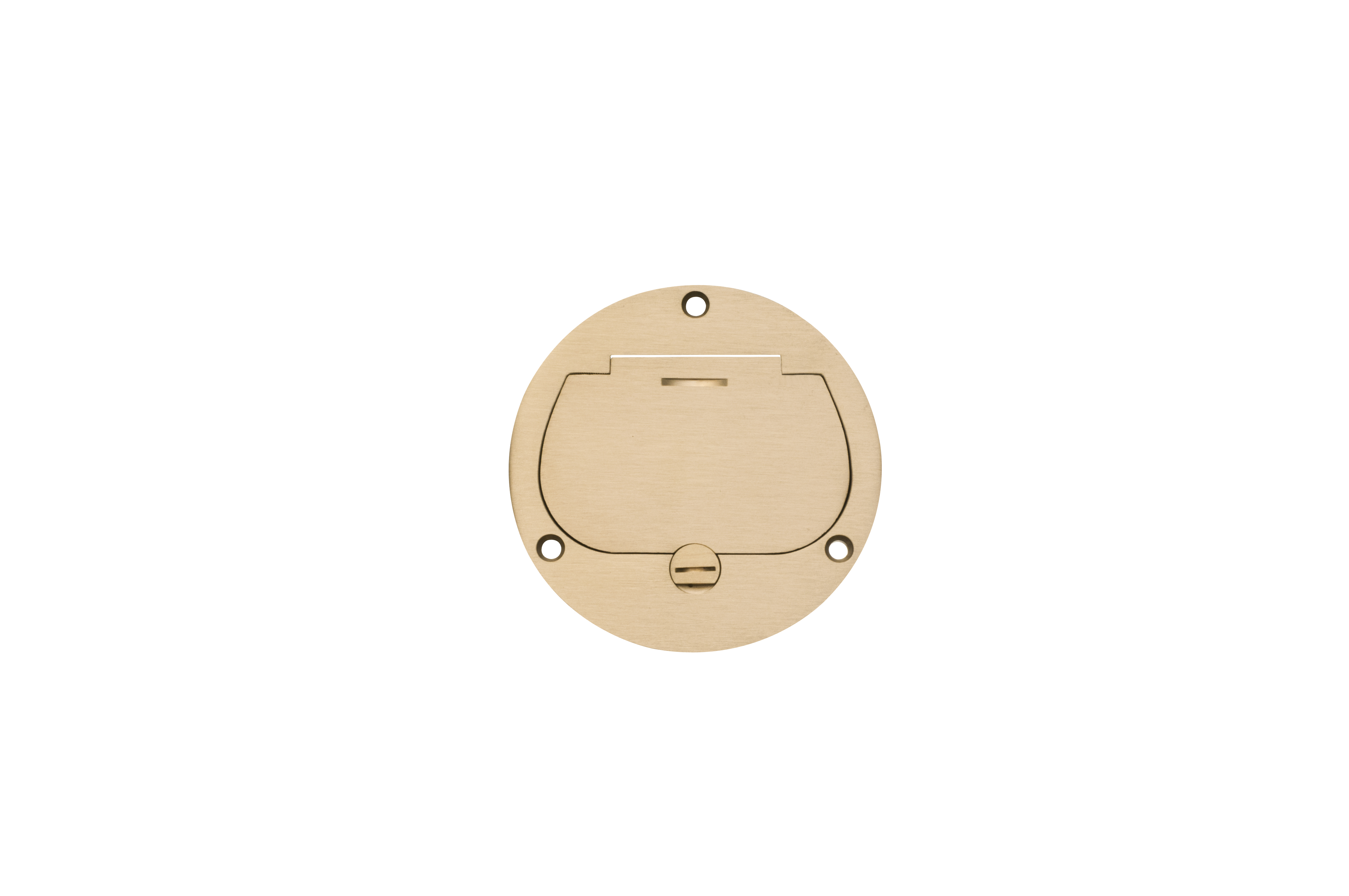

brass single flip lid floor box cover

FLB3531MB Product Information

Arlingtons round CUT IN Floor Box Kits offer installers the low cost, convenient way to install a duplex receptacle flush with the floor. CUT IN Boxes take a little longer to install than the DROPIN™ box, but you get an installation that is tr
Specification SheetCatalog Page E-mail

Additional Images

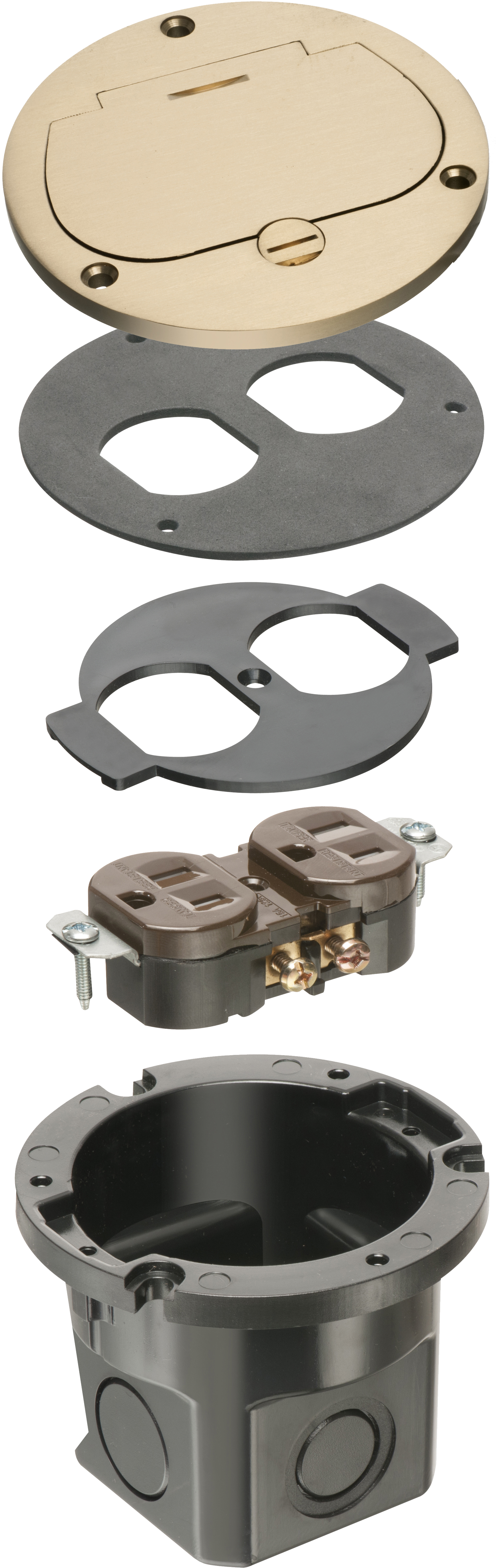

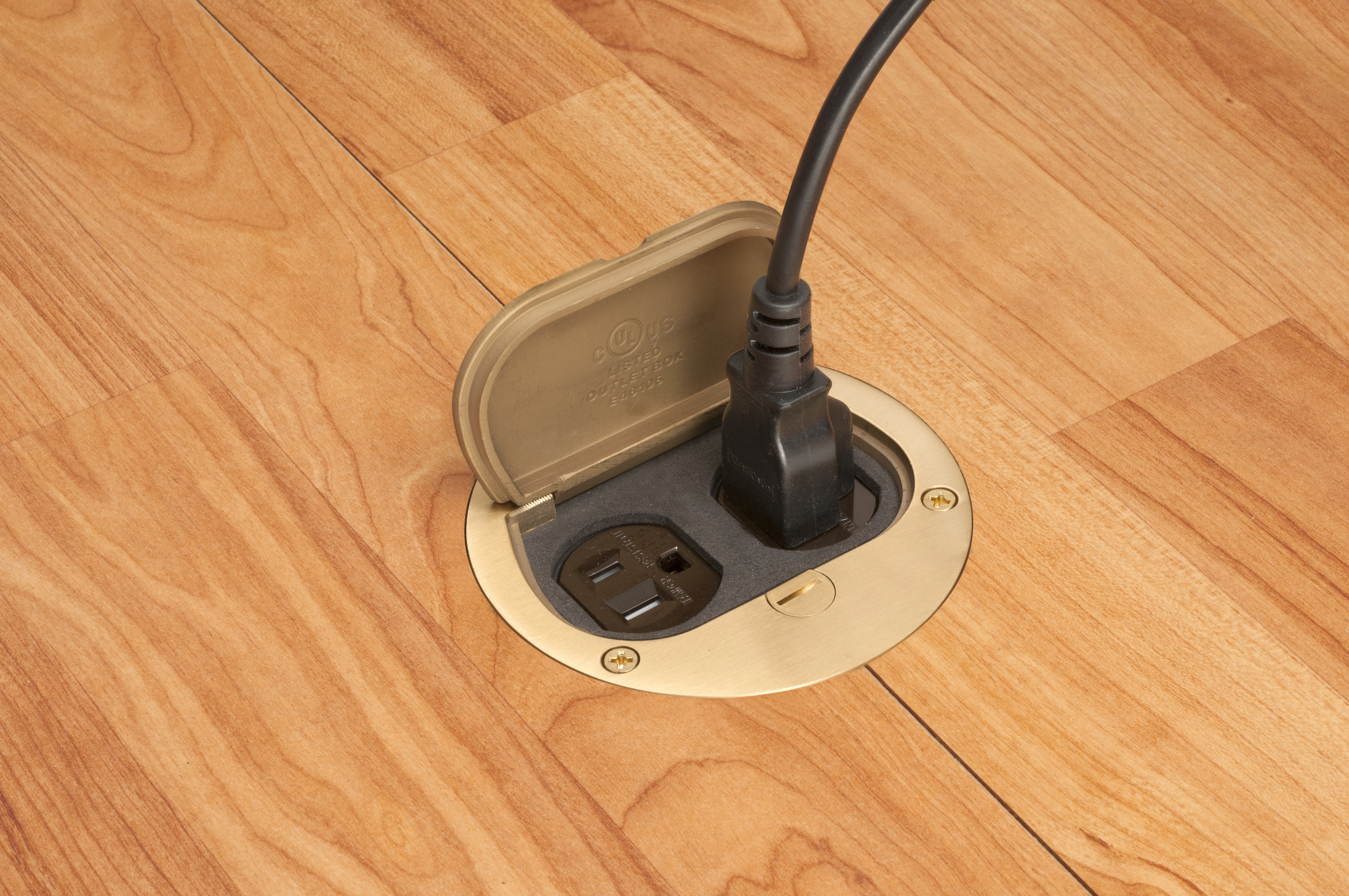

exploded view of components included in floor box kit floor box in wooden floor with device plugged into receptacle

Basic Information

Part Number FLB3531MB
Description Flush to the floor cut in box kit with brass cover with one flip lid.
UPC 018997007452
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Weight0.950 lbs/each
Height6.250"
Width6.250"
ColorBrass
Material(s)Brass

Technical Information

Line Drawing FLB3531MB Line Drawing
Trade Size1-Gang

Comes With

(1)NM95 Cable Connector
(1)NM94 Cable Connector
(1)Gasket support plate
(1)Gasket
(1)Cover
(1)Box
(1)15A Tamper-Resistant Duplex Receptacle
(3)#8 x 1/2" Long Screws
(1)#6 x 1/2" Long Screw
