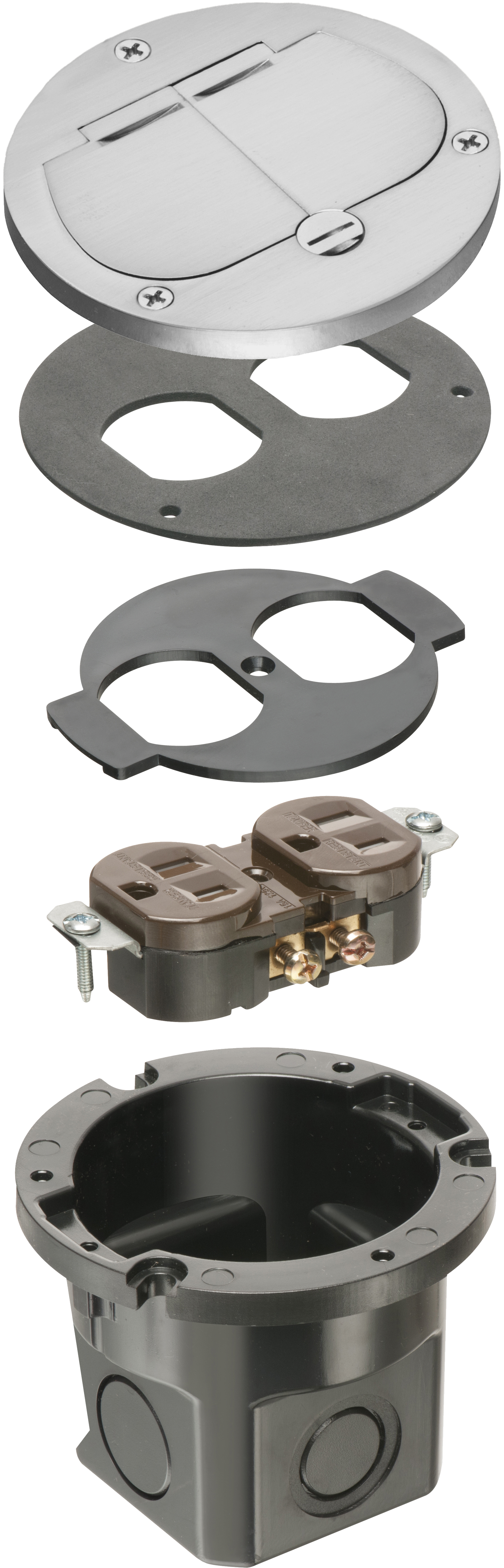

exploded view of components included in floor box kit

FLB3532NL Product Information

Arlingtons round CUT IN Floor Box Kits offer installers the low cost, convenient way to install a duplex receptacle flush with the floor. CUT IN Boxes take a little longer to install than the DROPIN™ box, but you get an installation that is TR.
Specification SheetCatalog Page E-mail

Additional Images

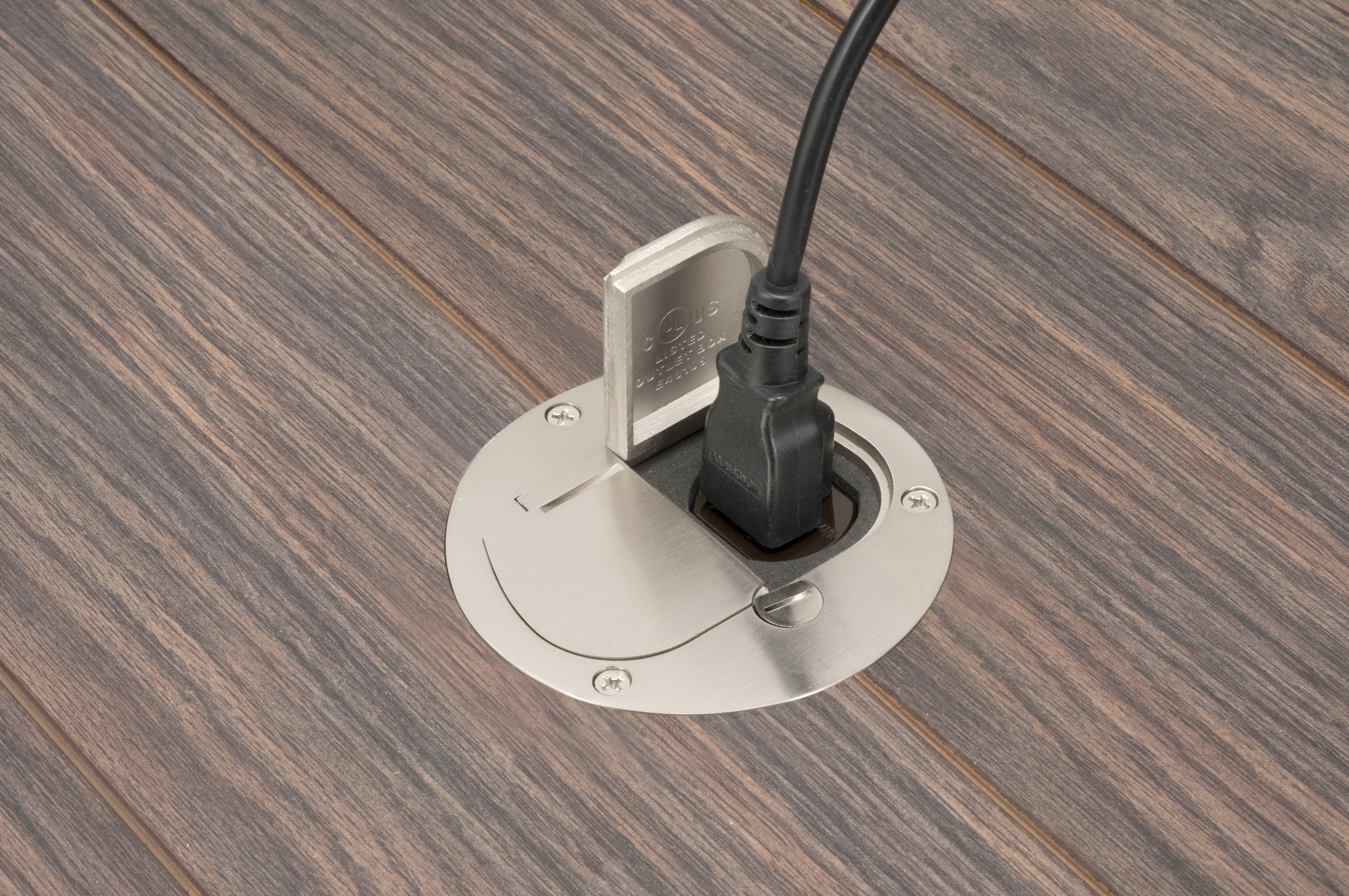

floor box in wooden floor with device plugged into receptacle

Basic Information

Part Number FLB3532NL
Description Flush to the floor cut in box kit with nickel-plated brass cover with (2) flip lid.
UPC 018997480194
Unit Packaging 1pc
Standard Packaging 1pc

Physical Information

Weight1.195 lbs/each

Technical Information

Line Drawing FLB3532NL Line Drawing
Trade Size1-Gang

Comes With

(1)NM95 Cable Connector
(1)NM94 Cable Connector
(1)Gasket support plate
(1)15A Tamper-Resistant Duplex Receptacle
(3)#8 x 1/2" Long Screws
(1)#6 x 1/2" Long Screw

Suggested Products

floor box in carpeted floor with device plugged into receptacle
