FLB3520MB Product Information

Round Cut-In Box with Brass Cover with Threaded Plugs
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLB3520MB

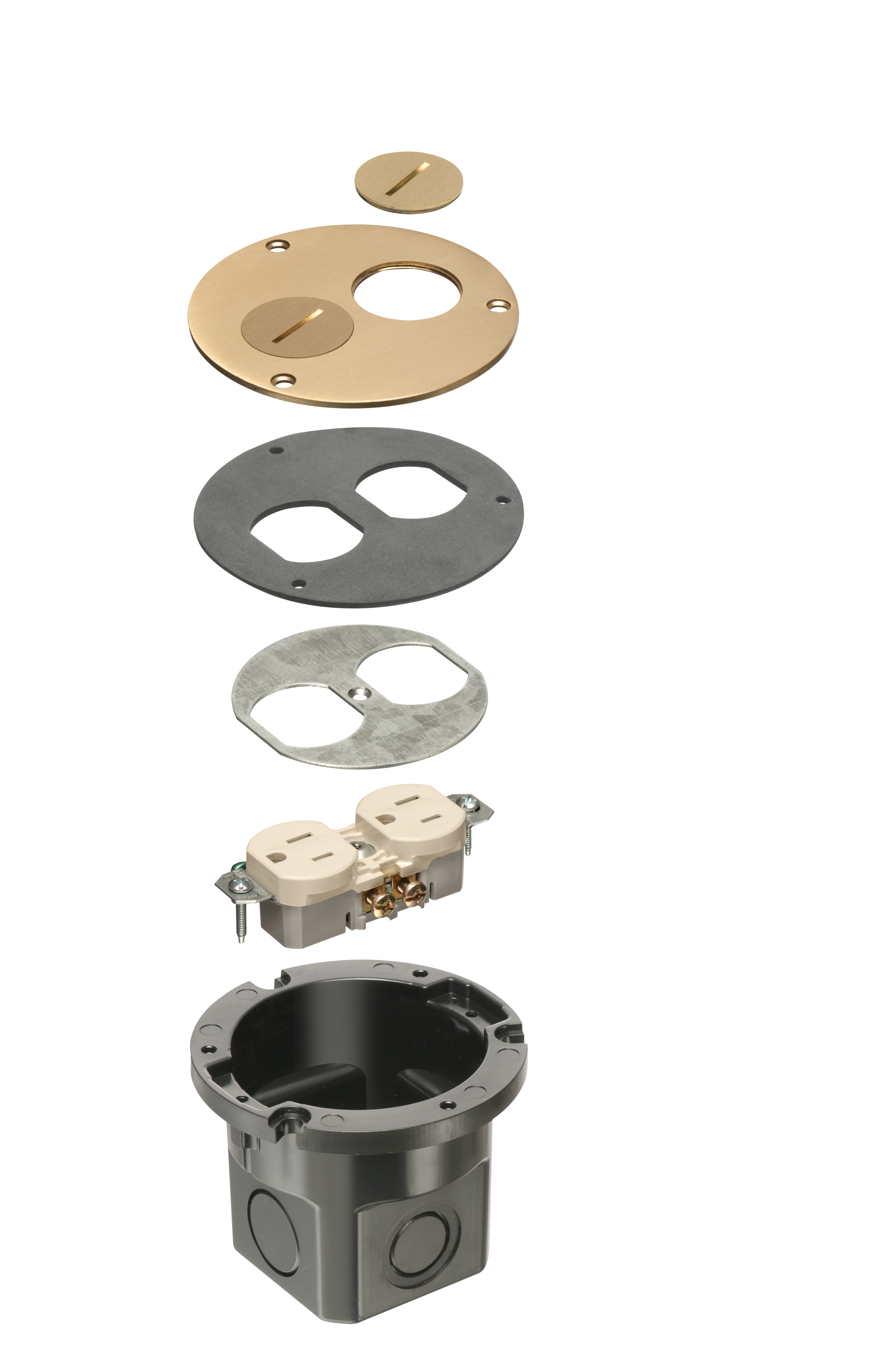

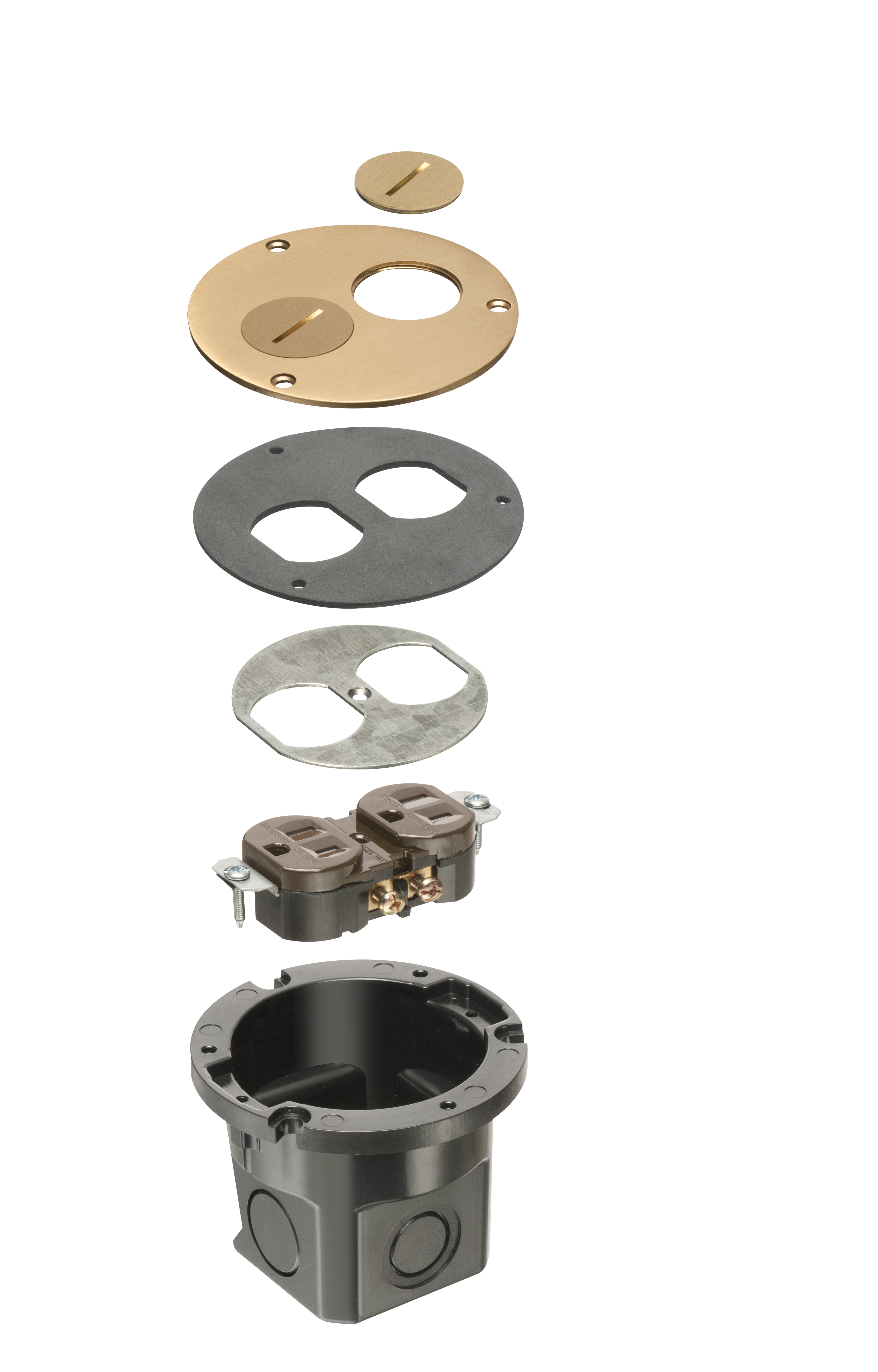

Description For installing flush floor boxes, look no further than Arlington's Floor Box Kits. Can be installed in an existing wood or concrete floor. Measuring 3.5" round, our UL listed non-metallic floor box offers a convenient way to install a duplex receptacle flush with the floor. This kit comes with non-metallic box, round metal cover, non-metallic gasket support plate, gasket, UL listed 15A tamper resistant duplex receptacle, NM94 and NM95 cable connectors, (3) #8 x 1/2" flat head screws, and (1) #6 x 1/2" screw. Box has a volume of 15.0 cubic inches. Metal cover is brass with threaded plugs.
UPC 018997007346
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Weight1.050 lbs/each
Height3.995"
Width3.995"
ColorBrass
Additional Color OptionsAvailable in Nickel - Part#: FLB3520NL
Material(s)Brass

Technical Information

Line Drawing FLB3520MB Line Drawing
StyleNon-metallic round cut-in box with brass cover with threaded plugs
Trade Size1-Gang
UsageFor existing floor
