FLBC8510NL Product Information

Single Gang Frame
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC8510NL

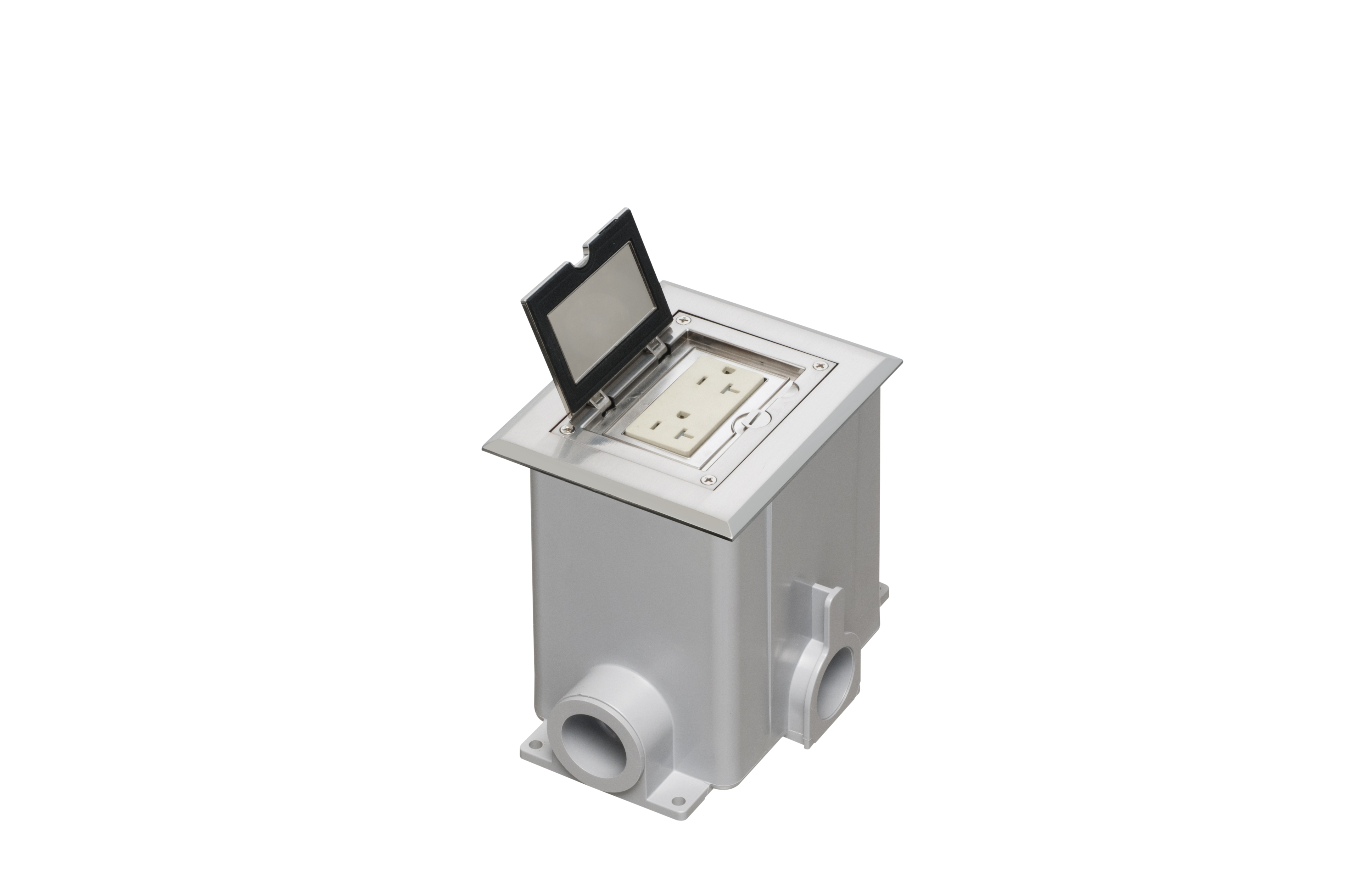

Description Nickel single gang frame kit with Flip lid cover. Includes (1) 20A decorator style receptacle, (1) gasket, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229540
Unit Packaging 1pc
Standard Packaging 1pc
Listing
Available w/ Grounding Clip Yes - Order Part Number FLBC8510NLGC

Physical Information

Instructional Video FLBC8510NL Instructional Video
Instruction Sheet FLBC8510NL Instruction Sheet
Weight1.566 lbs/each
Height6.094"
Width5.006"
ColorNickel
Material(s)Nickel

Technical Information

Line Drawing FLBC8510NL Line Drawing
Trade Size1-Gang

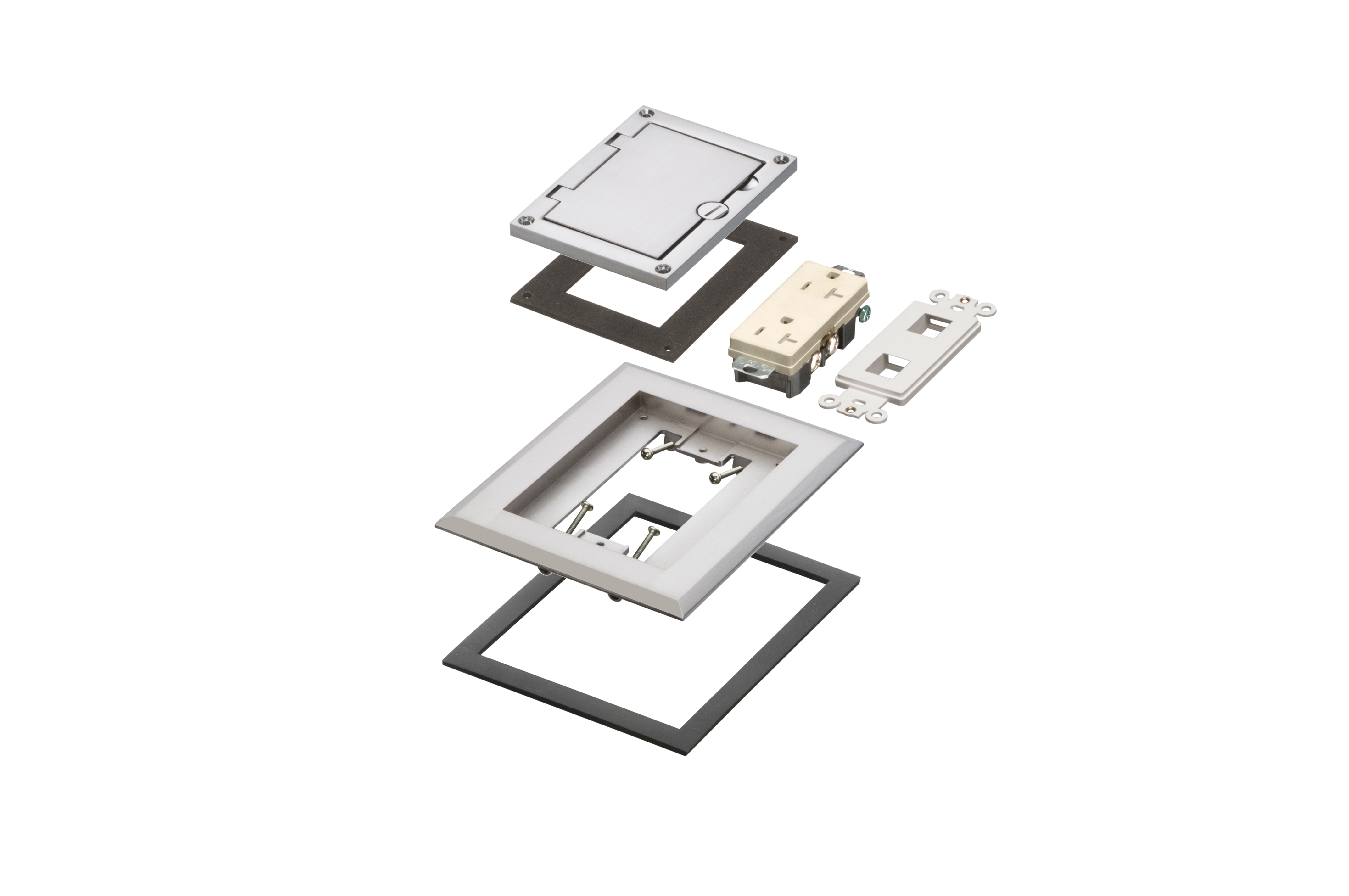

Comes With

(2)Low-voltage spacers
(1)Low-voltage insert

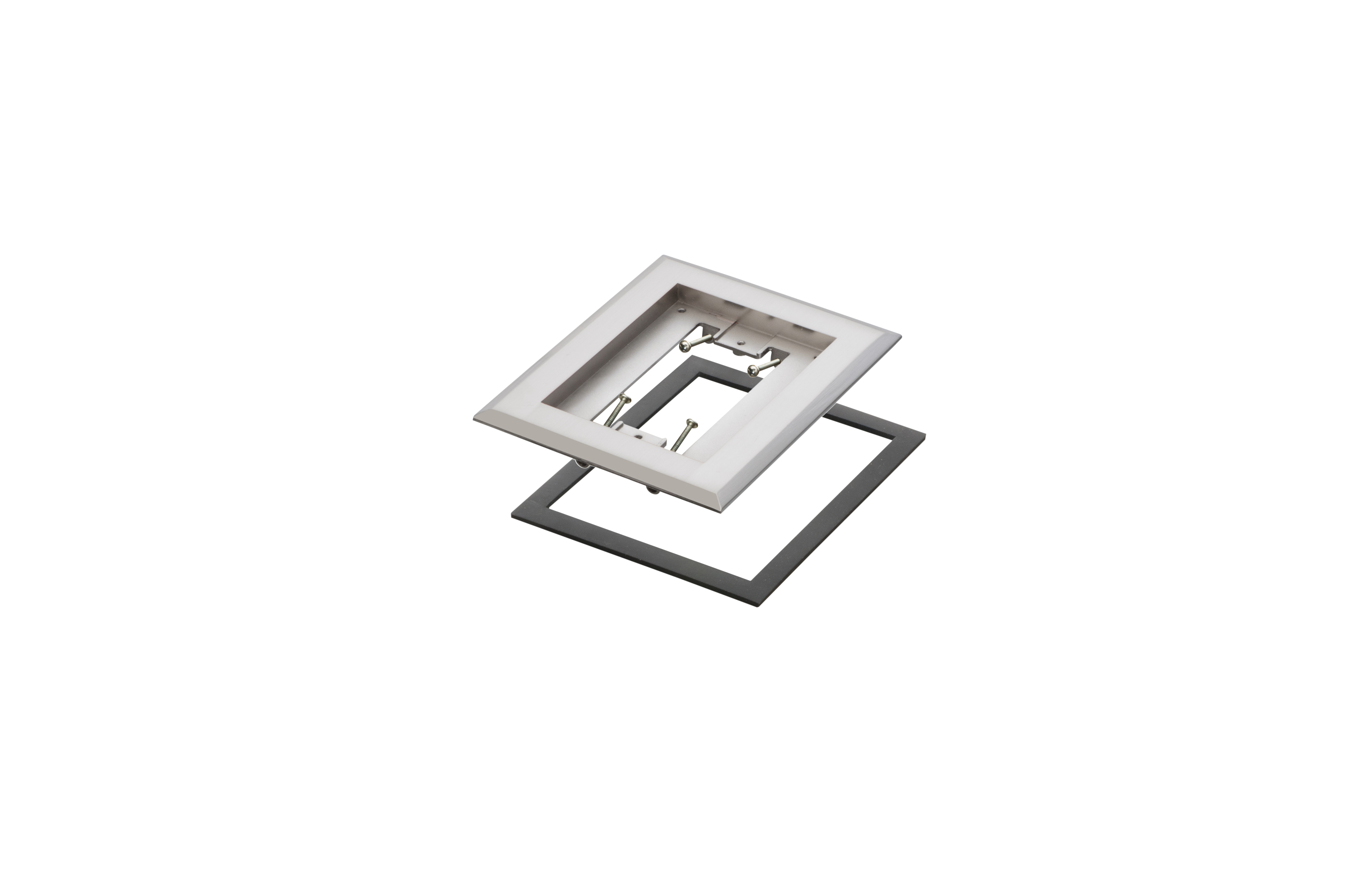

(1)Frame Gasket
(1)Frame

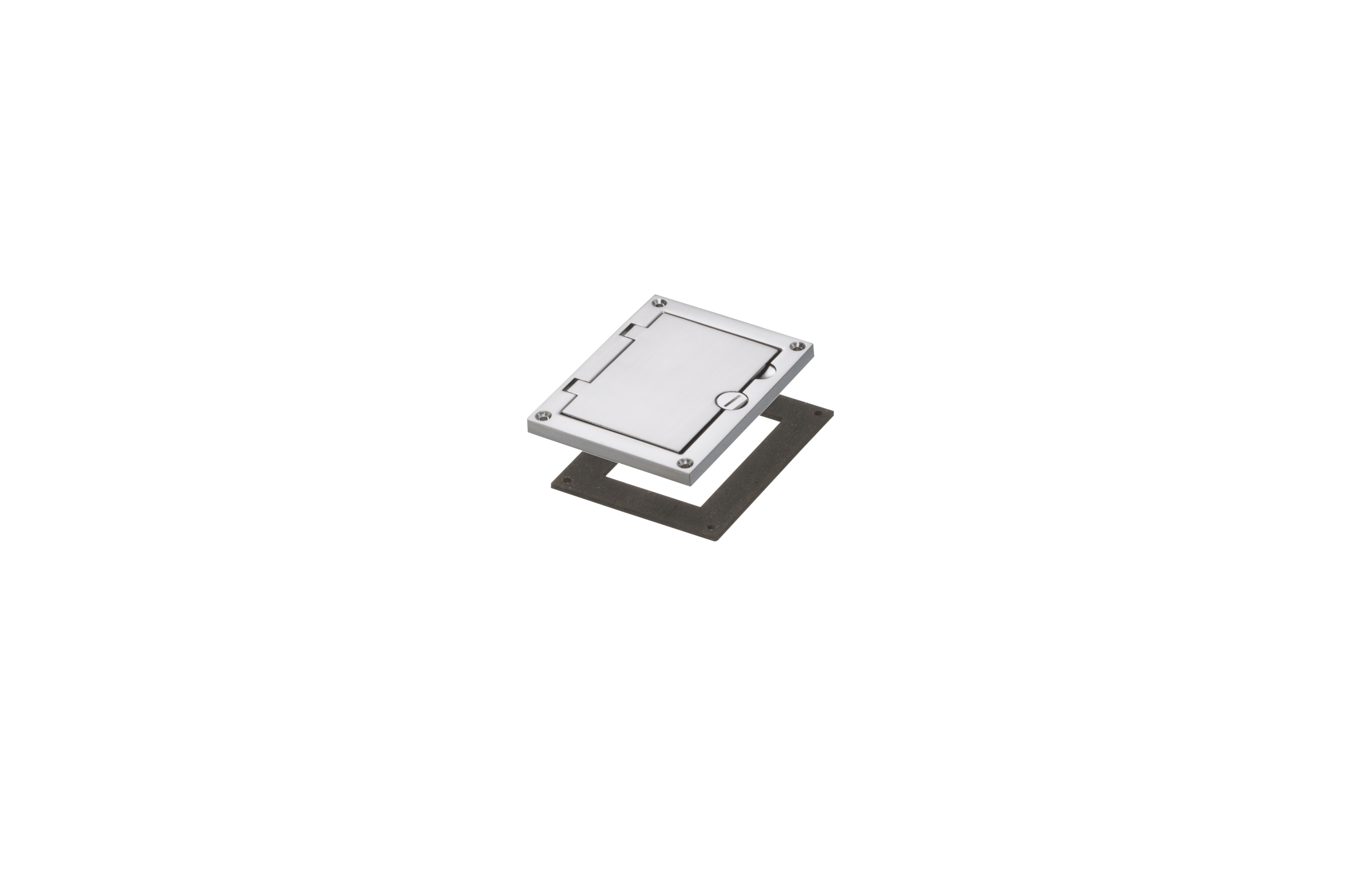

(1)Cover Gasket
(1)Cover
(1)20A Tamper-Resistant Decorator-Style Duplex Receptacle
(6)#6-32 x 3/4" Long Screws
(4)#6-32 x 1" Long Screws
