FLBC8510BR Product Information

Single Gang Plastic Cover Frame Kits
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC8510BR

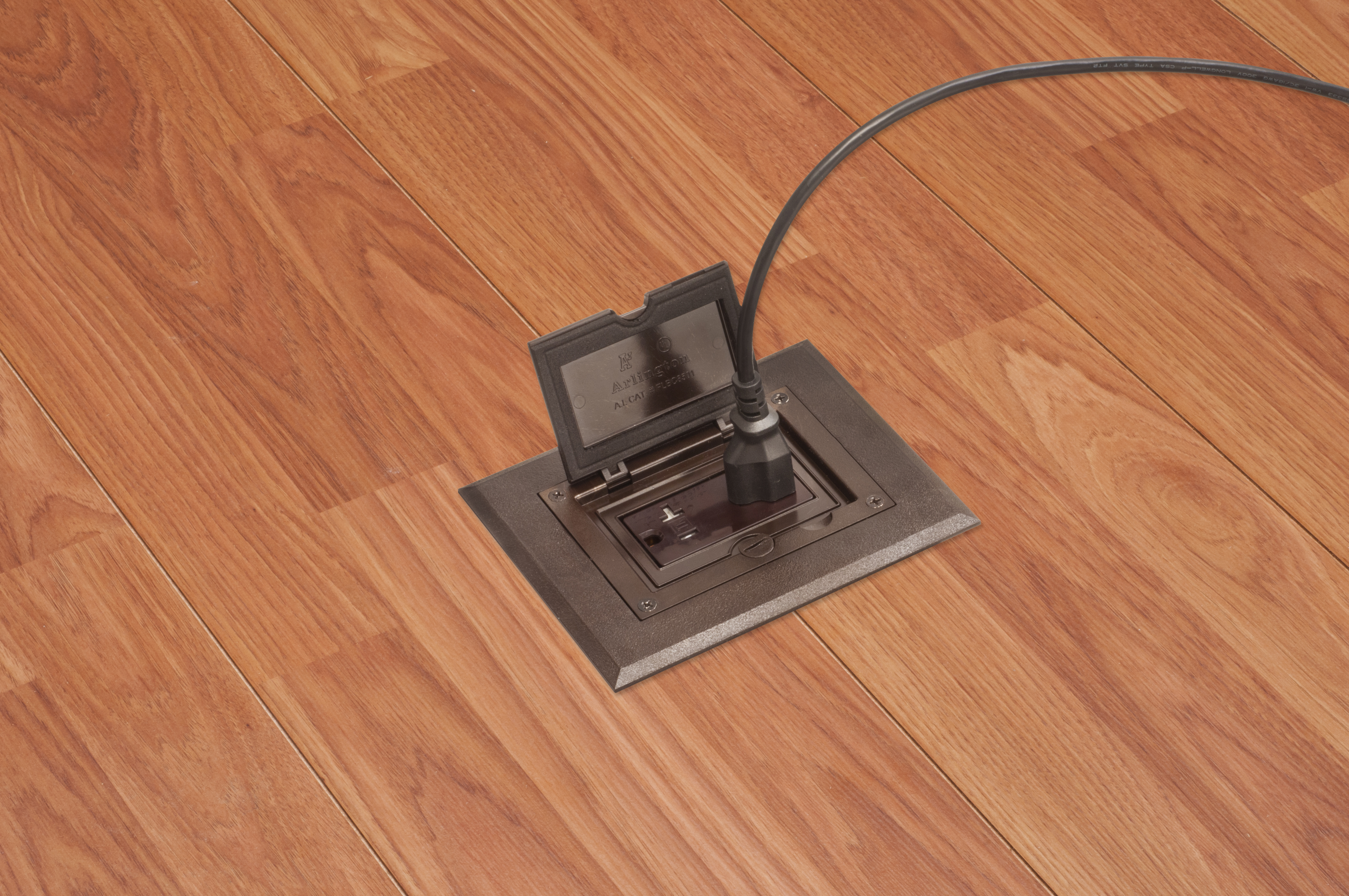

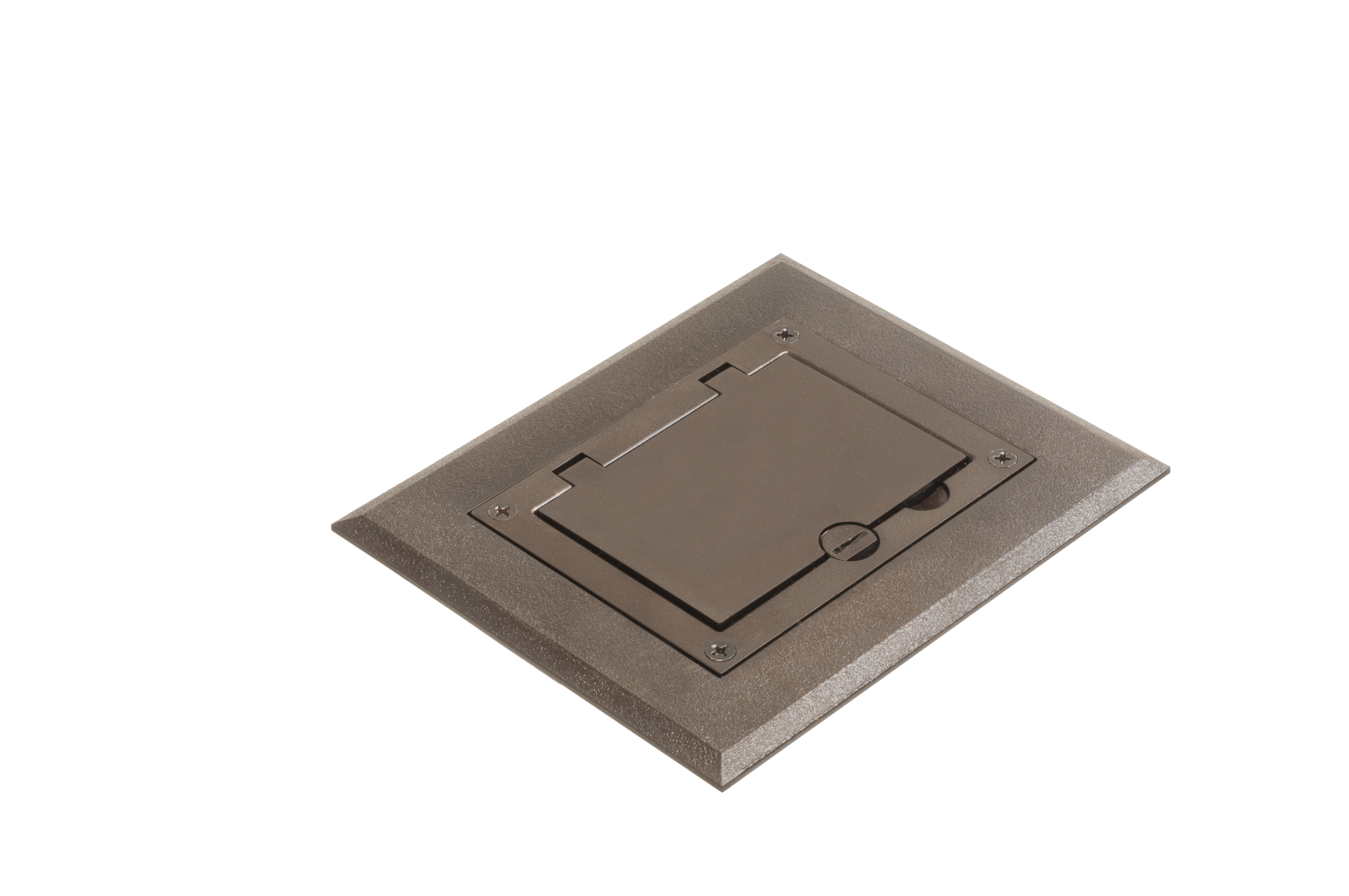

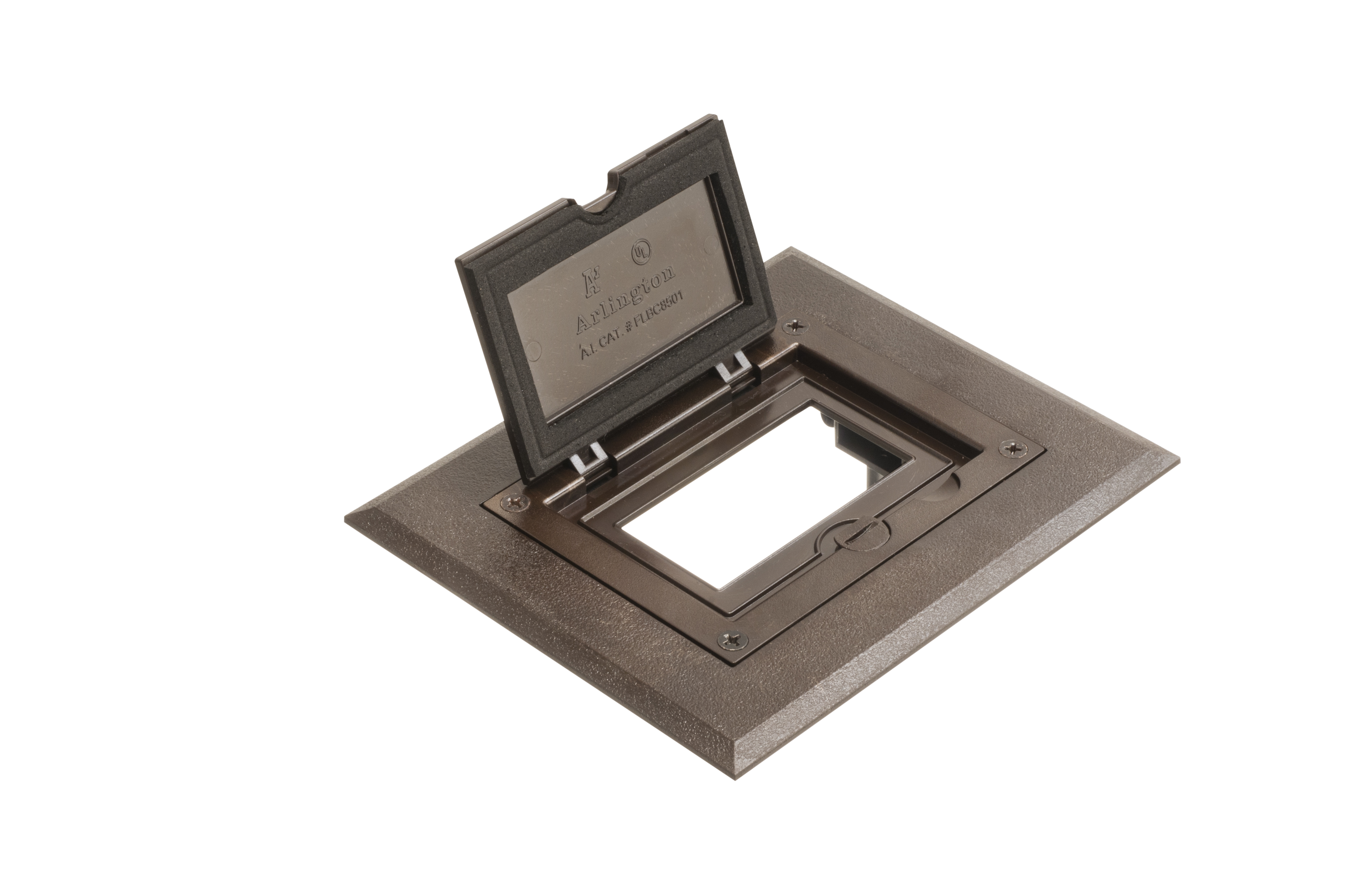

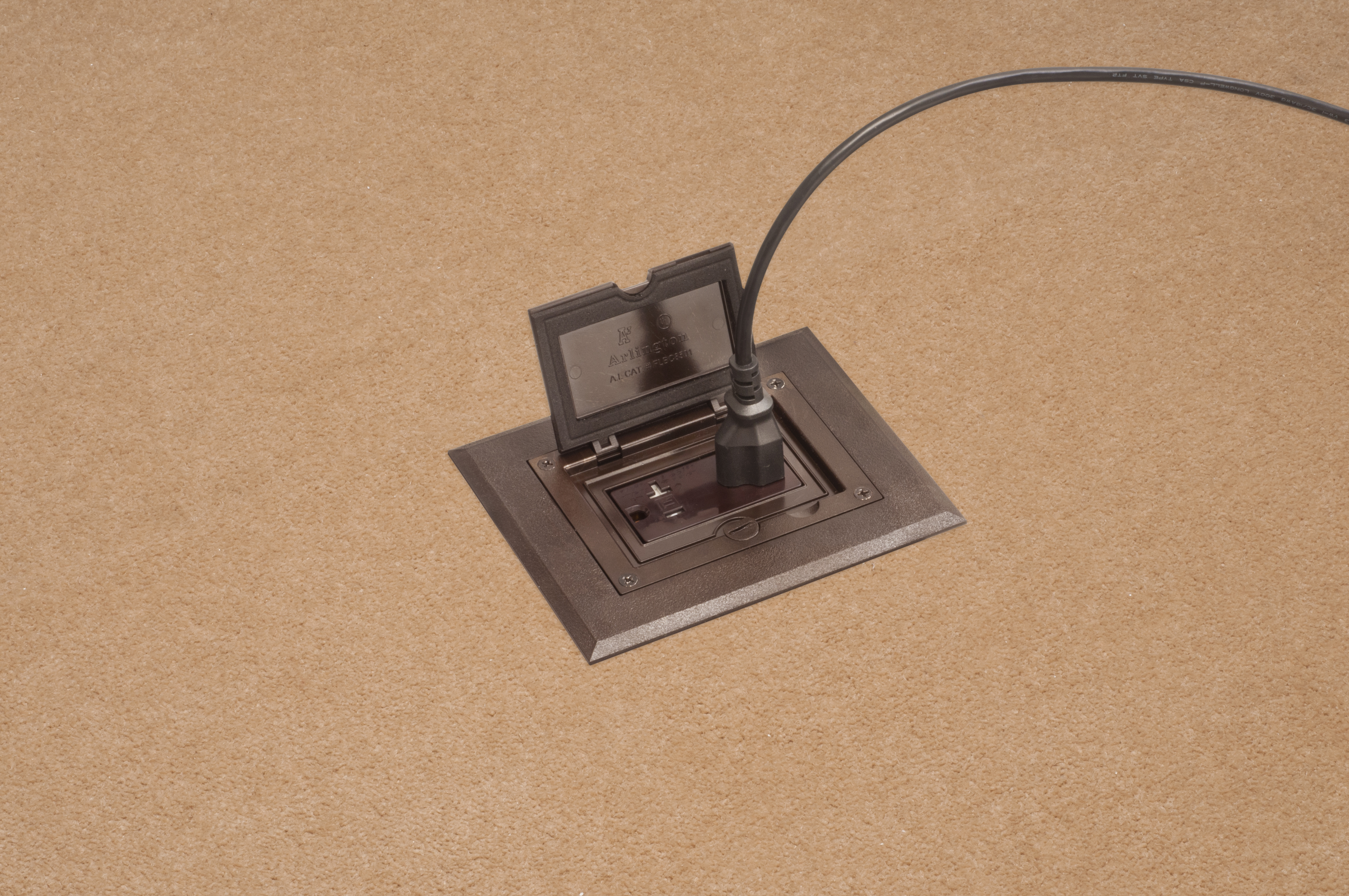

Description Brown non-metallic single gang frame kit with flip lid cover. Includes (1) 20A decorator style receptacle, (1) gasket, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229656
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instruction Sheet FLBC8510BR Instruction Sheet
Weight0.574 lbs/each
Height4.260"
Width3.260"
Cover Color Brown
Material(s)Plastic

Technical Information

Line Drawing FLBC8510BR Line Drawing
Trade Size1-Gang

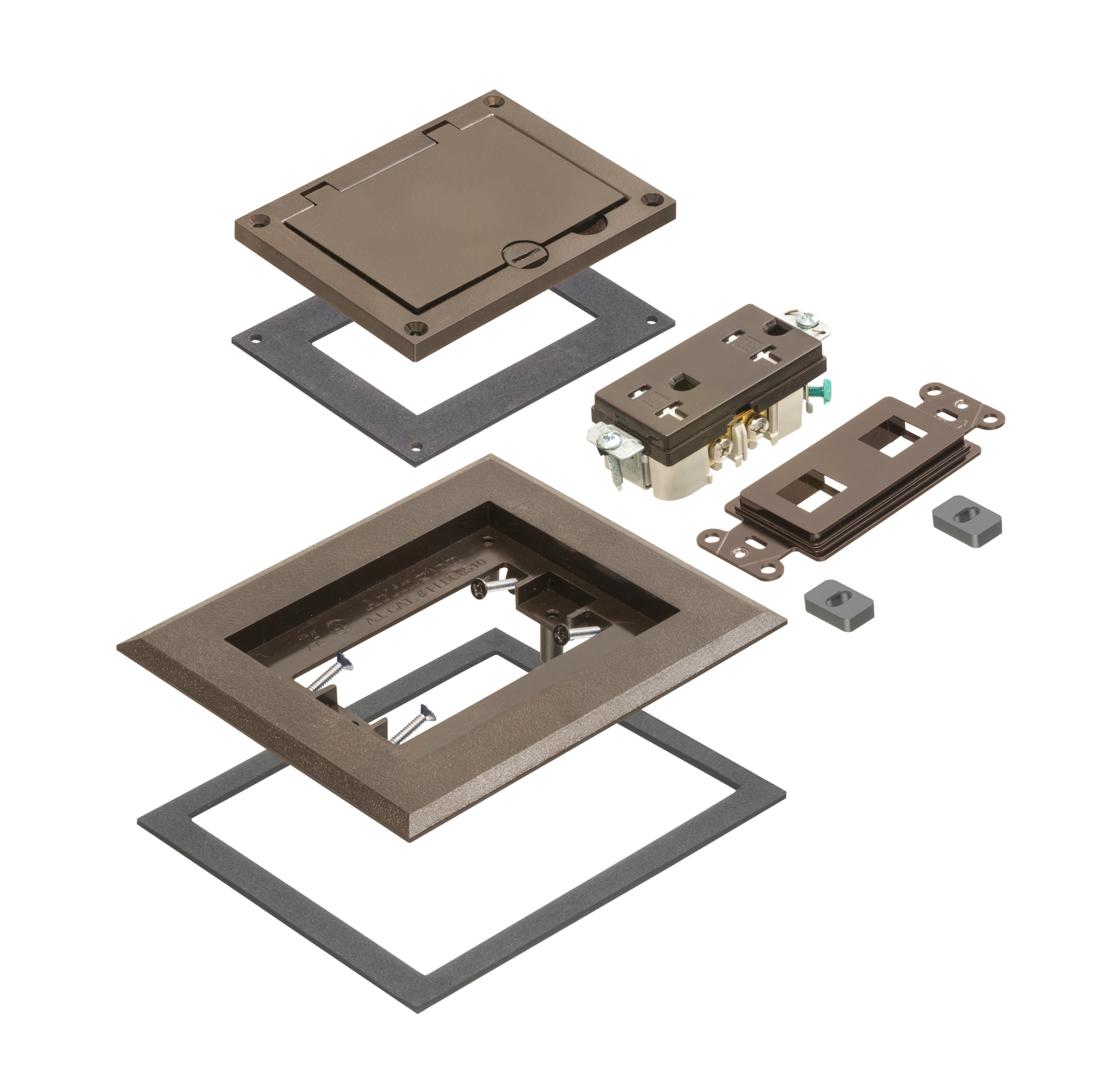

Comes With

(2)Low-voltage spacers
(1)Low-voltage insert
(1)Frame Gasket
(1)Frame
(1)Cover Gasket
(1)Cover
(1)20A Tamper-Resistant Decorator-Style Duplex Receptacle
(6)#6-32 x 3/4" Long Screws
(4)#6-32 x 1" Long Screws
