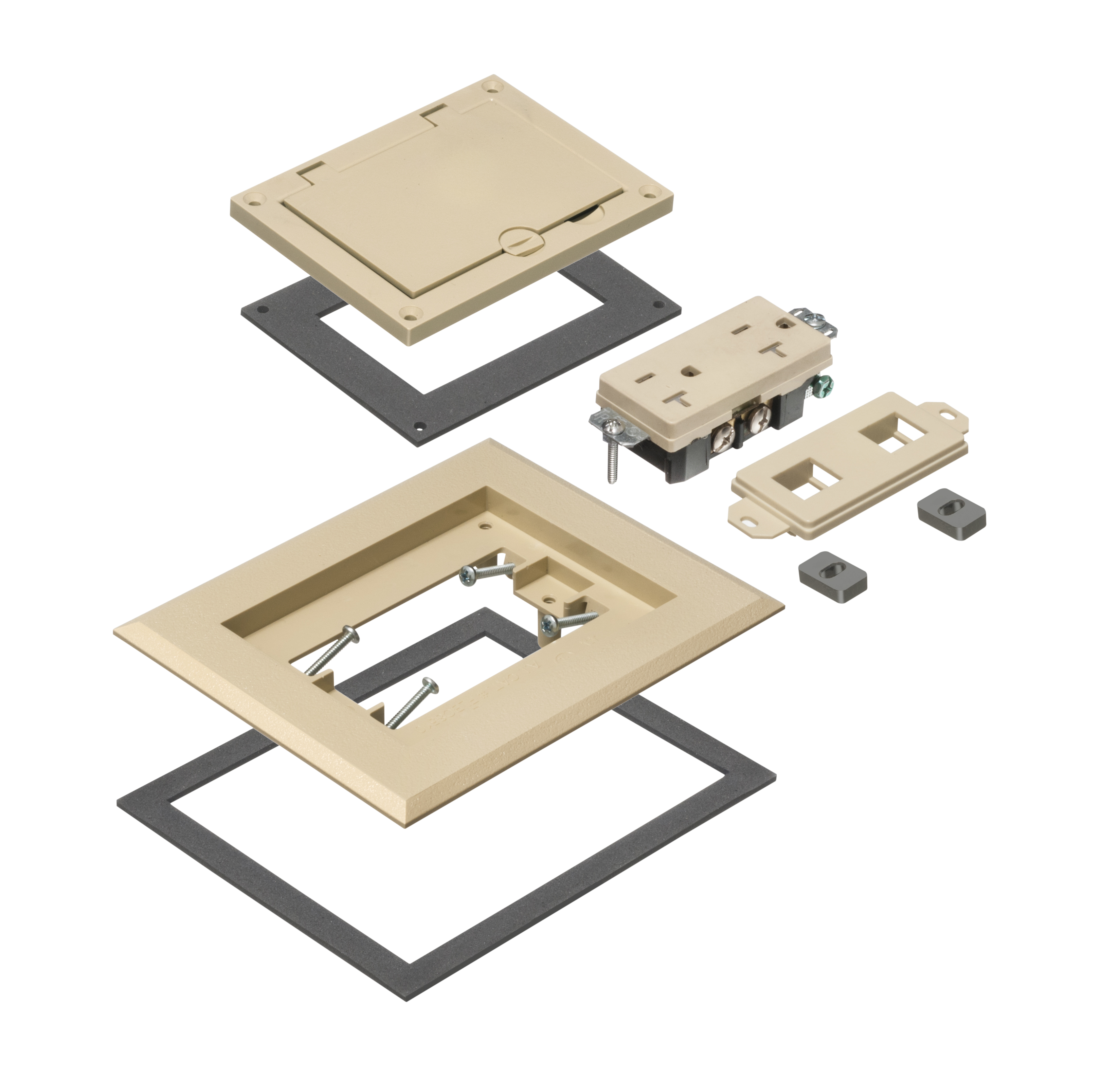

exploded view of components included in cover frame kit

FLBC8510LA Product Information

Single Gang Plastic Cover Frame Kits
Specification SheetCatalog Page E-mail

Additional Images

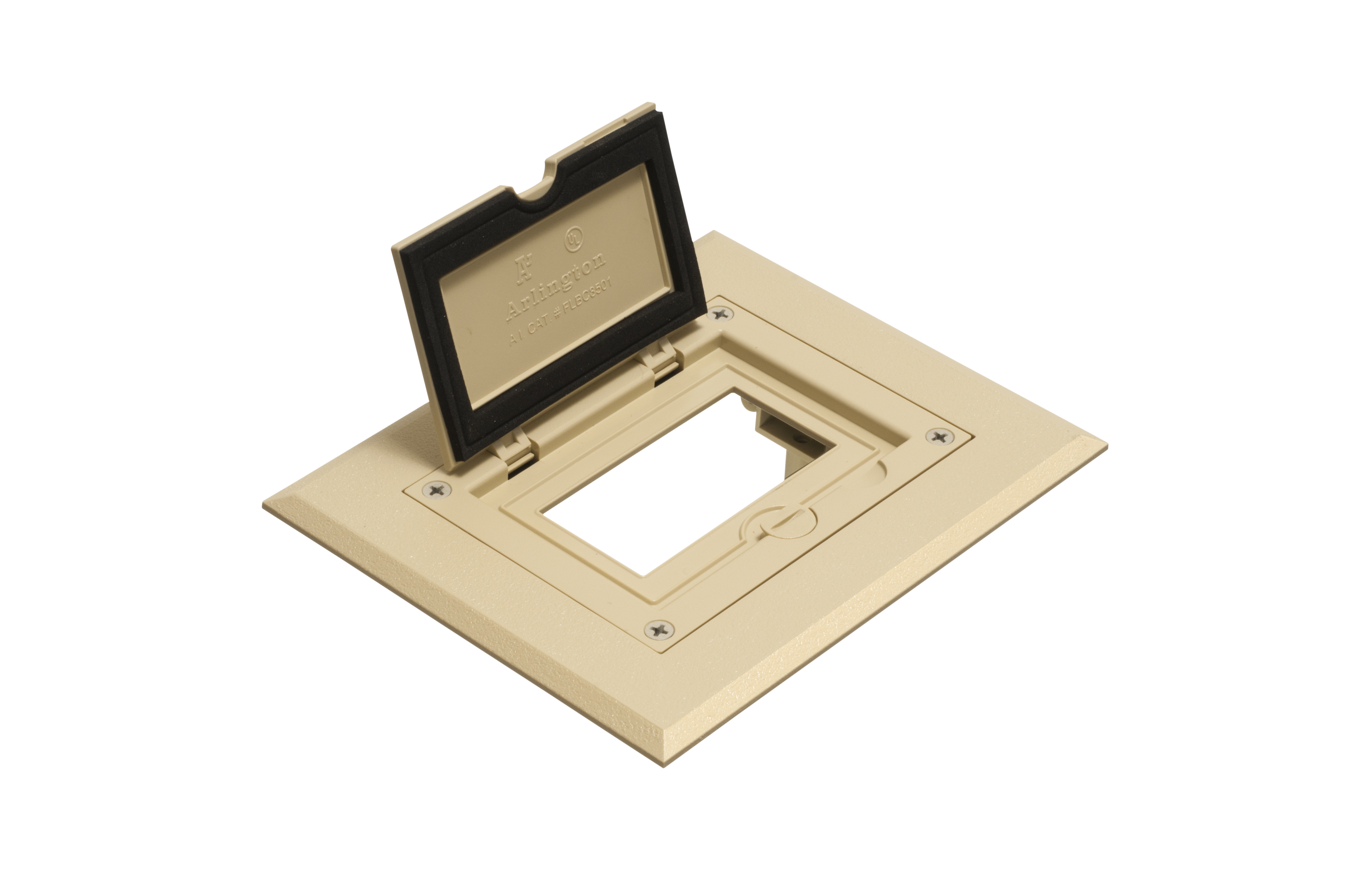

single gang cover frame kit single gang cover frame kit

Basic Information

Part Number FLBC8510LA
Description Light almond non-metallic single gang frame kit with flip lid cover. Includes (1) 20A decorator style receptacle, (1) gasket, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229762
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instruction Sheet FLBC8510LA Instruction Sheet
Weight0.574 lbs/each
Height4.260"
Width3.260"
Color Light Almond
Material(s)Plastic

Technical Information

Line Drawing FLBC8510LA Line Drawing
Trade Size1-Gang

Comes With

(2)Low-voltage spacers
(1)Low-voltage insert
(1)Frame Gasket
(1)Frame
(1)Cover Gasket
(1)Cover
(1)20A Tamper-Resistant Decorator-Style Duplex Receptacle
(6)#6-32 x 3/4" Long Screws
(4)#6-32 x 1" Long Screws
