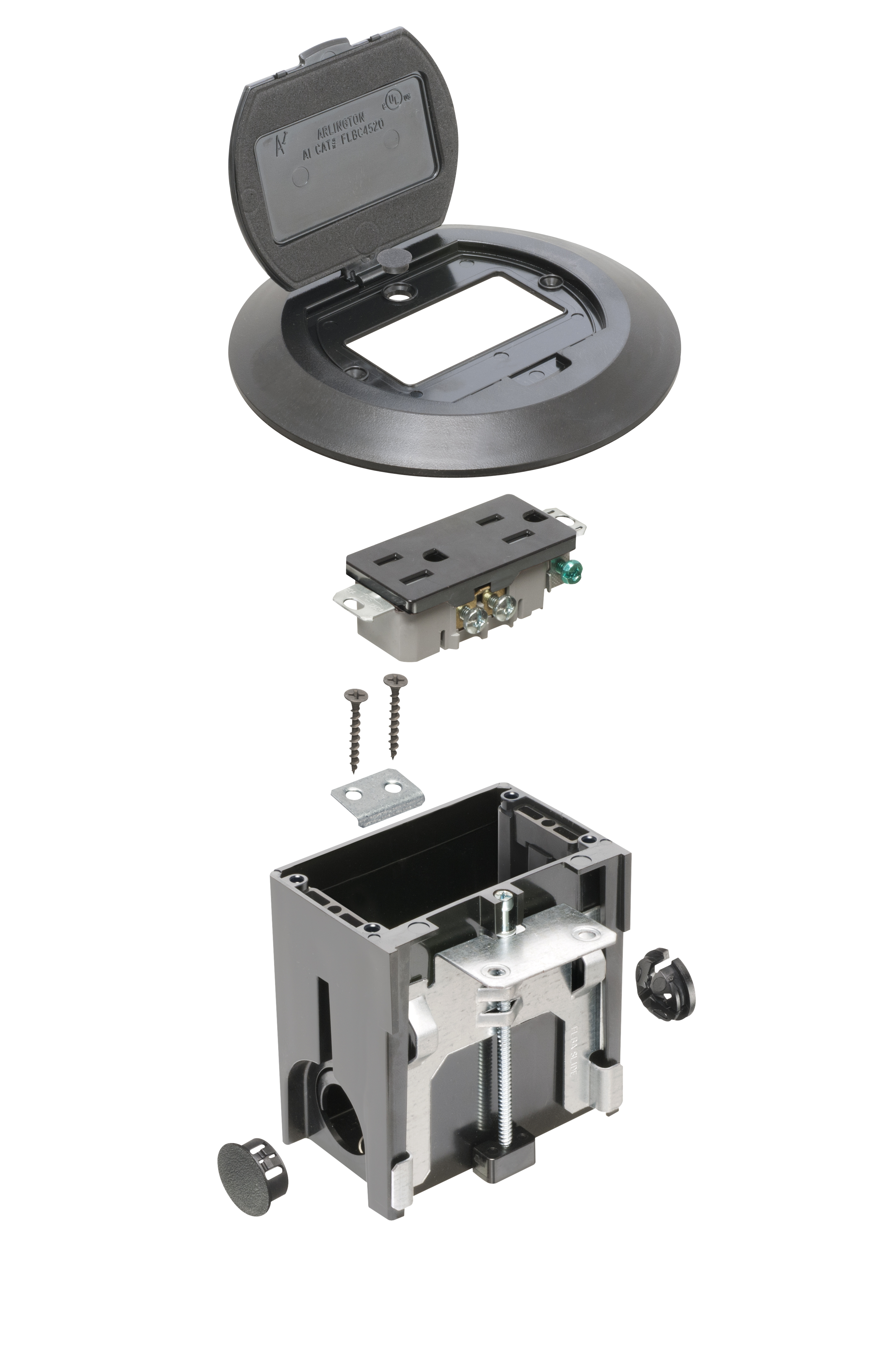

exploded view of components included in adjustable floor box kit

FLBAFR101BL Product Information

Arlingtons UL listed Adjustable Floor Boxes give installers a low cost, convenient way to install a box in a variety of floors.
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBAFR101BL
Description Non Metallic adjustable floor box. Black with flip lids. Includes tamper resistant duplex receptacle, cover plate with gasket and Arlington NM94 connector and Arlington NM900 knockout plug.
UPC 018997007100
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing

Physical Information

Weight0.850 lbs/each
Height5.750"
Width5.750"
Color Black
Cover Color Black
Material(s)Plastic

Technical Information

Line Drawing FLBAFR101BL Line Drawing
Trade Size1-Gang
UsageNew and existing floors

Comes With

(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)NM900 Snap-In Blank
(1)Metal Clip
(1)Cover
(1)Adjustment Screw Cap
(1)Adjustable Floor Box
(2)#6-32 x 1" Long Screws
(4)#6 Drywall Screws
