Arlington

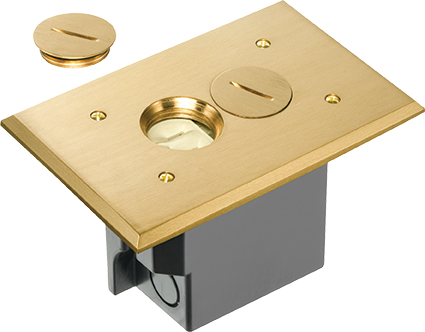

single gang floor box kit

FLBR101MB Product Information

Non-Metallic Floor Boxes with Metallic Covers for Installed Floors
Specification SheetCatalog Page E-mail

Additional Images

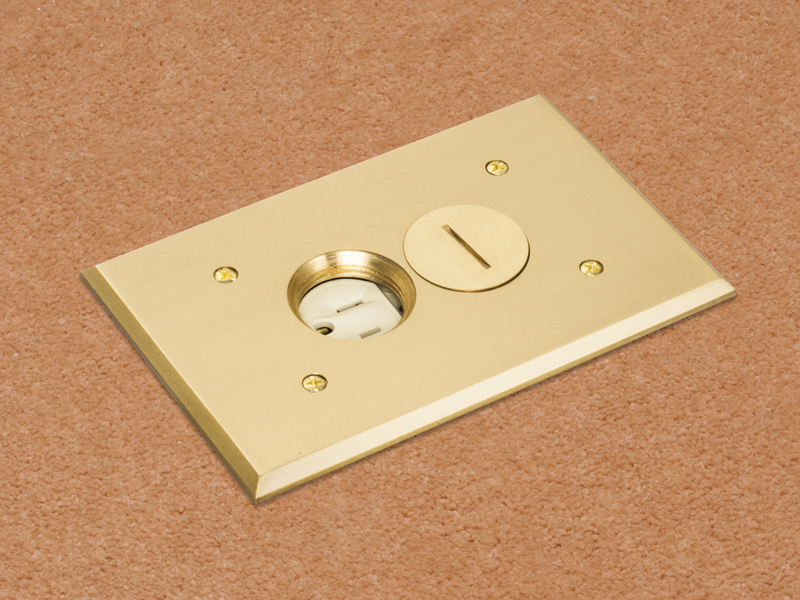

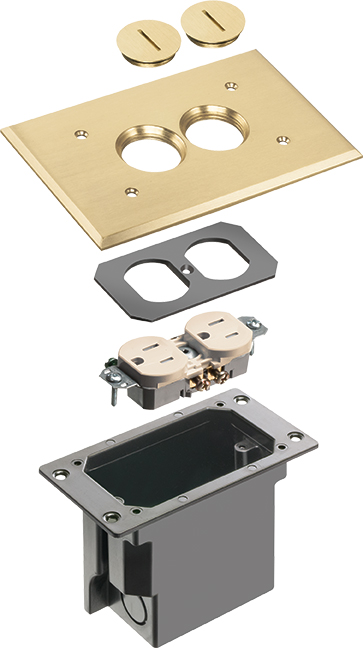

exploded view of single gang floor box kit single gang floor box in tiled floor

Basic Information

Part Number FLBR101MB
Description Non Metallic Box with metal covers for existing floors. Rectangular gasketed, metallic brass cover with threaded plugs.
UPC 018997522634
Unit Packaging 1pc
Standard Packaging 4pcs
Listing
Available w/ Grounding Clip Yes - Order Part Number FLBR101MBGC

Physical Information

Instructional Video FLBR101MB Instructional Video
Weight1.532 lbs/each
Height6.500"
Width4.125"
ColorBrass (Cover)
Material(s)Plastic (Box)

Technical Information

Line Drawing FLBR101MB Line Drawing
Cubic Inches20.0
StyleNon-metallic box with metallic rectangular cover and threaded plugs
Trade Size1-Gang
UsageInstall a receptacle in existing floors

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)Cover
(1)Box
(1)Back Plate
(5)#6-32 x 1/2" Long Screws
