rectangular single gang floor box kit

FLBRF101NL Product Information

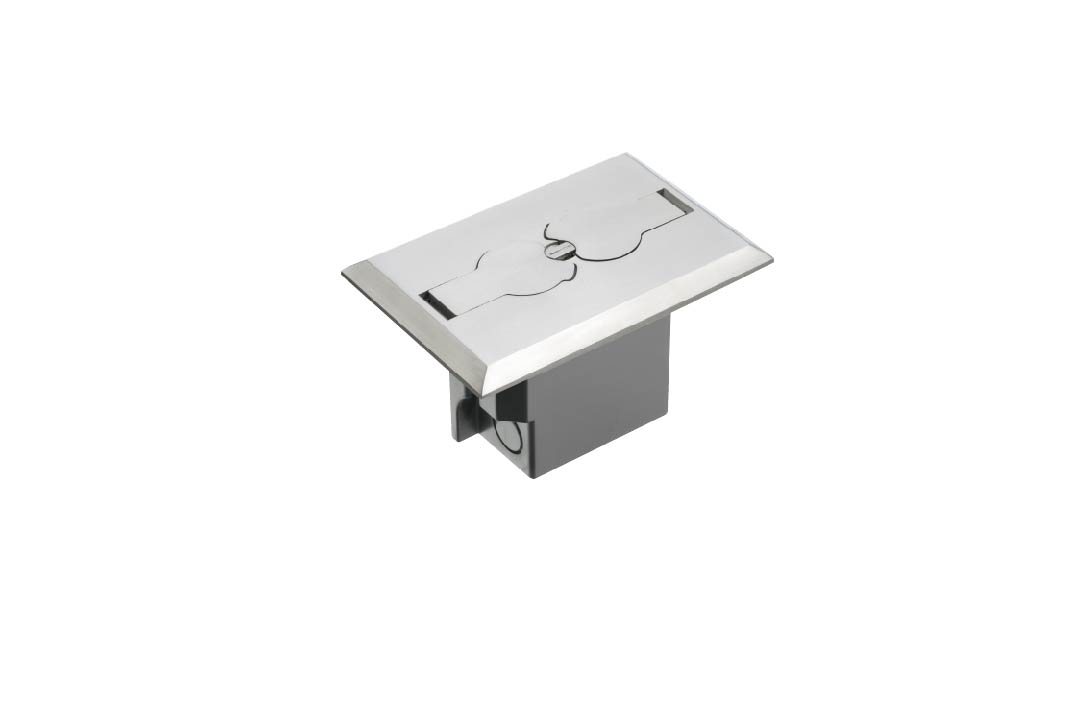

Non-Metallic Floor Boxes with Metallic Covers for Installed Floors
Specification SheetCatalog Page E-mail

Additional Images

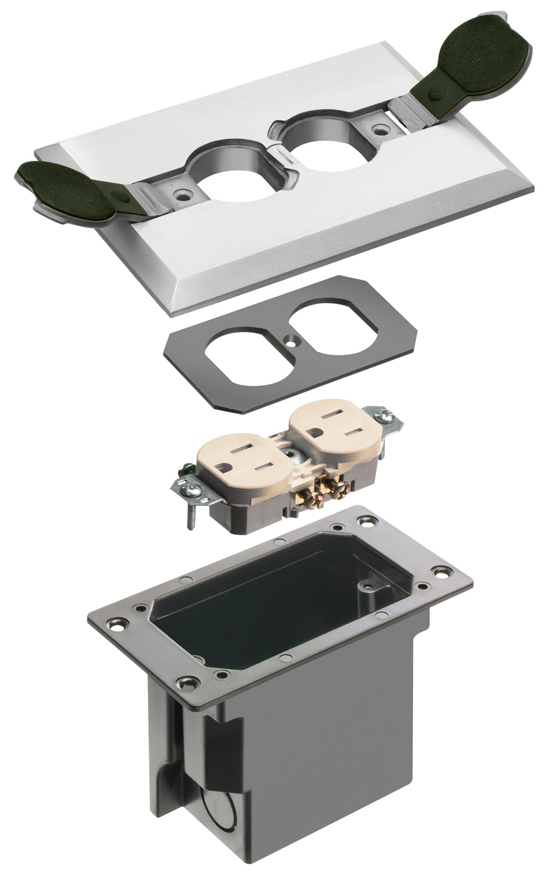

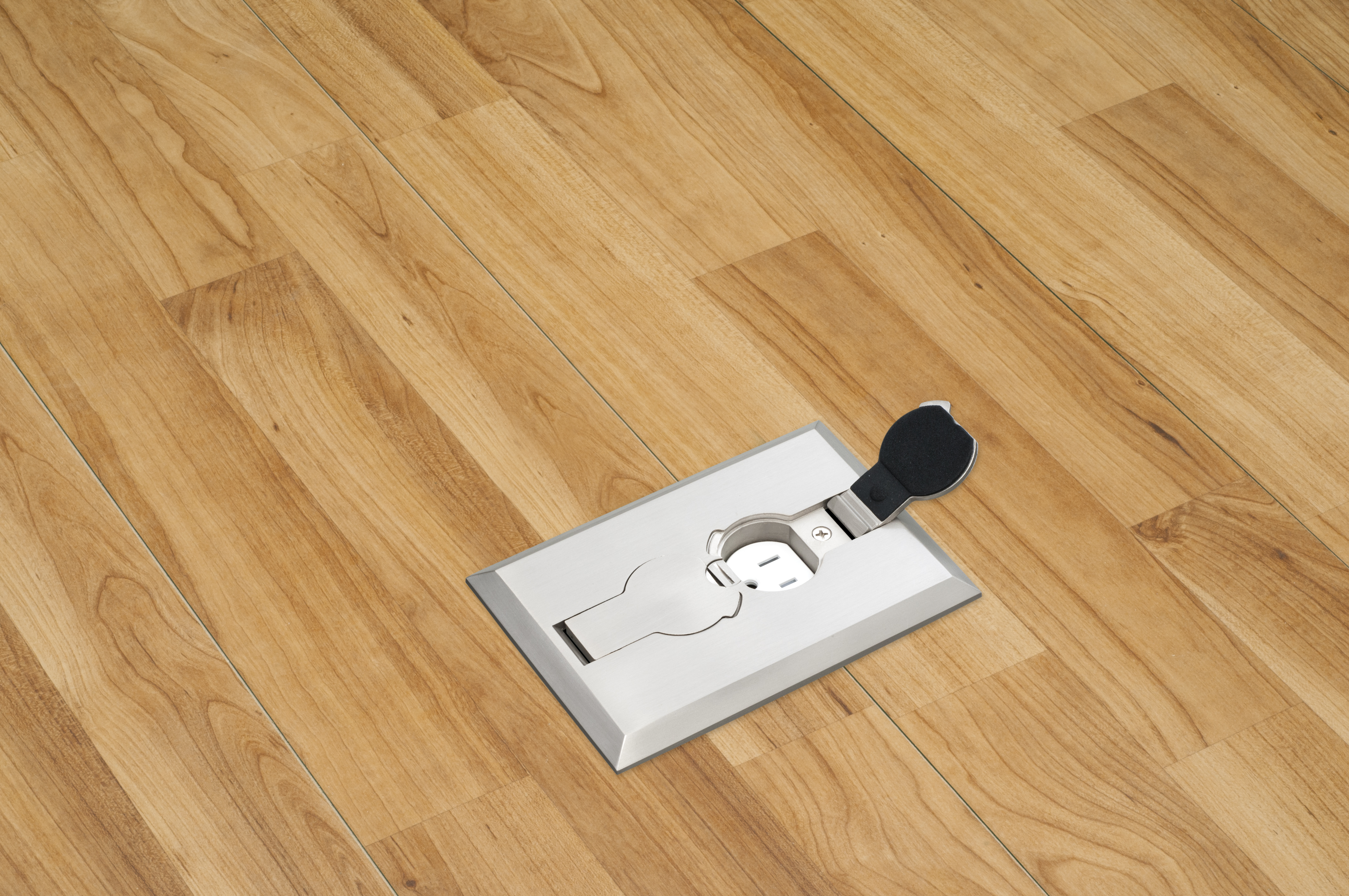

exploded view of components included in floor box kit floor box with flip lid open in wooden floor

Basic Information

Part Number FLBRF101NL
Description Non Metallic Box with metal covers for existing floors. Rectangular gasketed, metallic nickel cover with flip lids.
UPC 018997162557
Unit Packaging 1pc
Standard Packaging 4pcs
Available w/ Grounding Clip Yes - Order Part Number FLBRF101NLGC

Physical Information

Weight1.750 lbs/each
ColorNickel-Plated (Cover)
Material(s)Plastic (Box)

Technical Information

Line Drawing FLBRF101NL Line Drawing
Cubic Inches20.0
StyleNon-metallic box with metallic cover and flip lids for existing floors
Trade Size1-Gang
UsageFor existing floors

Comes With

(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)Back Plate
(5)#6-32 x 1/2" Long Screws
