FLBCF101W Product InformationNon-Metallic Floor Boxes for New Concrete Pours Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | FLBCF101W |

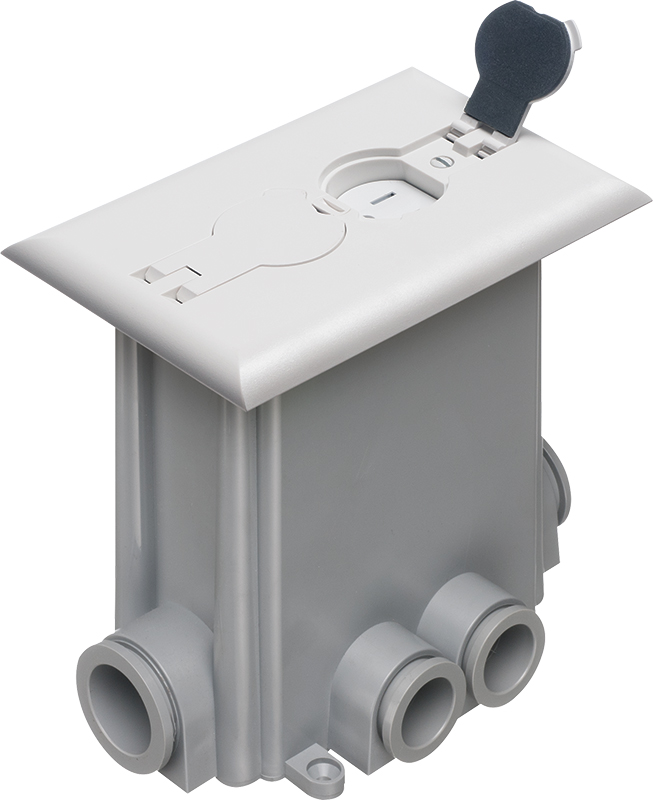

| Description | Non Metallic concrete floor box with non metallic covers for new concrete pours. White with flips lids. Includes Box, Mud Cover, Four 3-1/4 plugs, two 1" plugs, 1/8" spacer 1/4" spacer. one 1/2" spacer, one 3/4" spacer, Mounting bracket, Duplex receptacle, Gasketed cover plate. |
| UPC-A | 018997069504 |
| Unit Packaging | 1pc |
| Standard Packaging | 1pc |
| Country of Origin |  |
| Listing |
|
| Available w/ Grounding Clip | Yes - Order Part Number FLBCF101WGC |
Physical Information
| Instructional Video | FLBCF101W Instructional Video |
| Weight | 0.646 lbs/each |
| Height | 6.500" |
| Width | 4.125" |
| Color |  White (Cover) |
| Material(s) | Plastic |
Technical Information
| Line Drawing | FLBCF101W Line Drawing |
| Submittal Drawing | FLBCF101W Submittal Drawing |

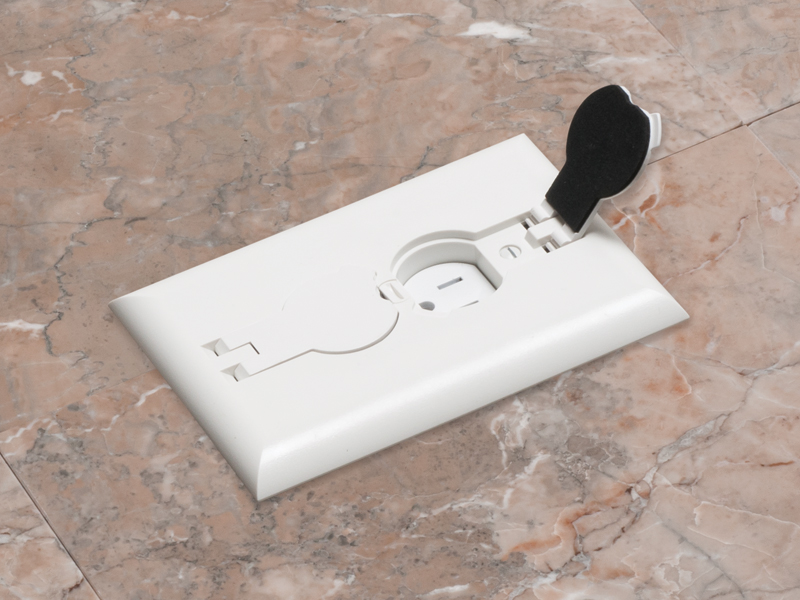

| Style | Non-metallic floor box, rectangular cover with flip lids |
| Trade Size | 1-Gang |
| Usage | For new concrete |
Comes With
| (1) | Mud Cover |
| (1) | Mounting bracket with gasket |
| (1) | Duplex Receptacle |
| (1) | Cover plate with gasket |
| (1) | Concrete Box |
| (1) | Back Plate |
| (1) | 3/4" Spacer Set |
| (4) | 3/4" Plugs |
| (1) | 1/8" Spacer Set |
| (1) | 1/4" Spacer Set |
| (1) | 1/2" Spacer Set |
| (2) | 1" Plugs |
| (4) | #8 x 5/8" Long Sheet Metal Screws |
| (4) | #8 x 1-1/4" Long Sheet Metal Screws |
| (5) | #6-32 x 1/2" Long Screws |
