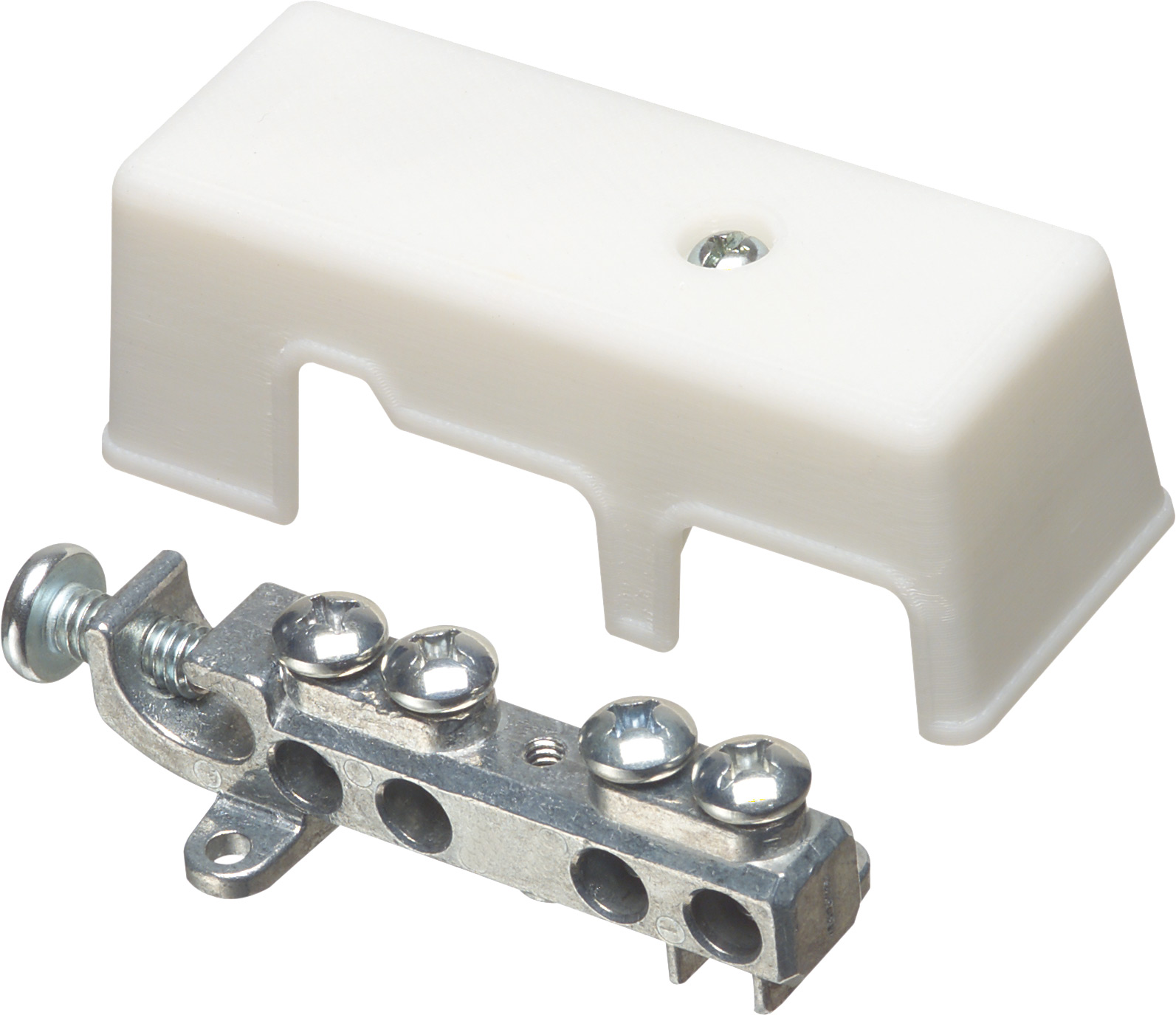

intersystem grounding bridge with cover

GB5 Product Information

Intersystem Grounding Bridge
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number GB5

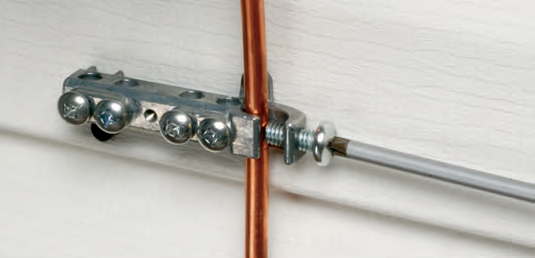

Description Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Attaches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc with white Cover.
UPC 018997760951
Unit Packaging 1pc
Standard Packaging 10pcs
Country of Origin
Listing

Physical Information

Instructional Video GB5 Instructional Video
Instruction Sheet GB5 Instruction Sheet
Weight0.500 lbs/each
Height1.497"
Width4.398"
Color Silver
Material(s)Zinc (Bridge) / Paintable Plastic (Cover)

Technical Information

Line Drawing GB5 Line Drawing

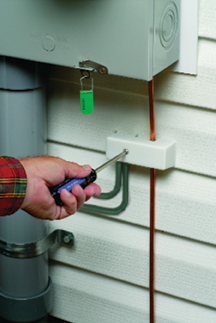

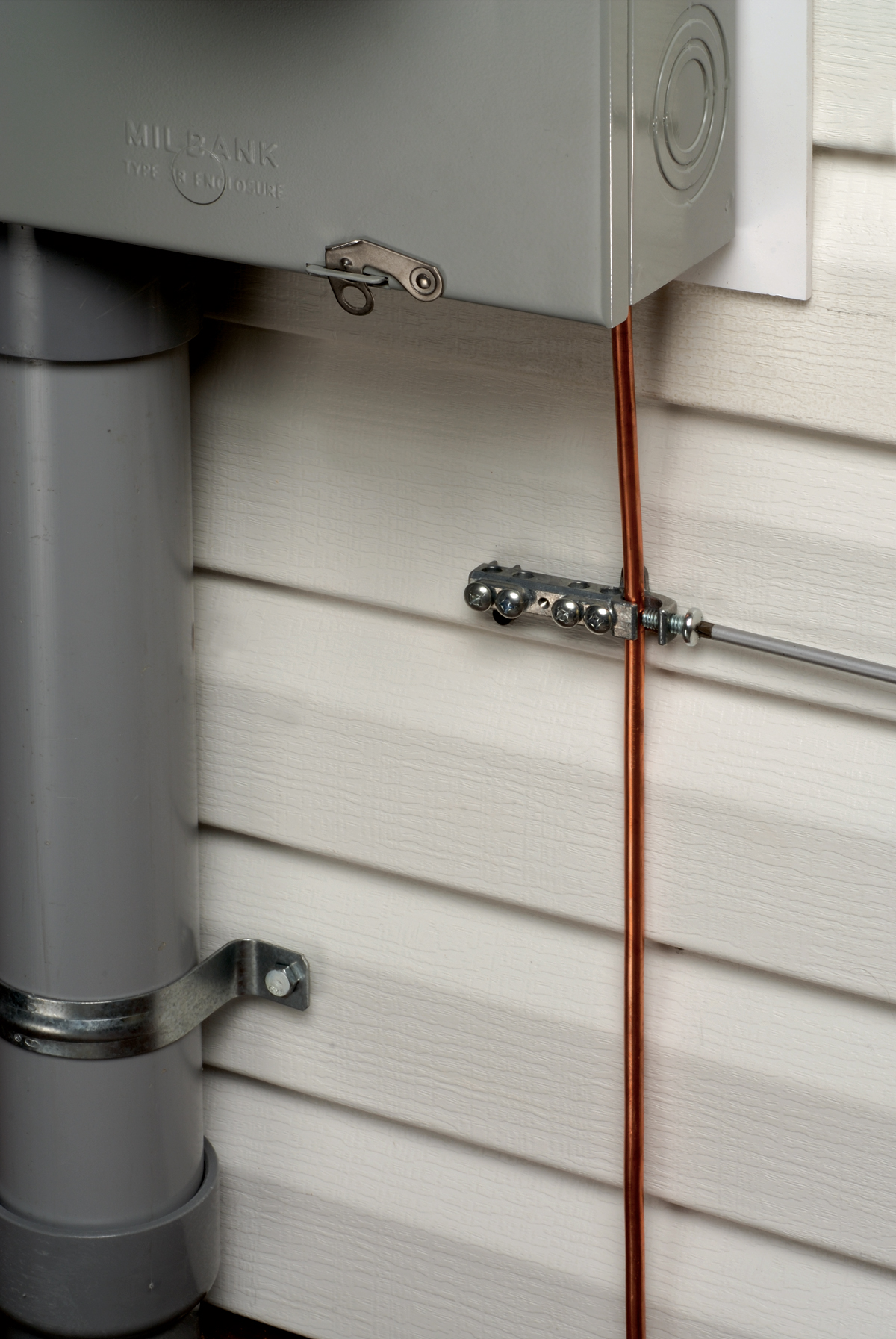

ApplicationProvides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Equipment Grounding Conductor#6 to #2 Copper or Aluminum - Solid or Stranded
Grounding Electrode#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Termination Points(4) Four
Trade Size#6 to #2 Grounding Electrode

Comes With

(1)Grounding Bridge
(1)Cover
(1)5/16"-18 x 3/4" Long Screw
(4)1/4"-20 x 5/8" Long Screws
(1)#10-24 x 1" Long Screw (Cover)
