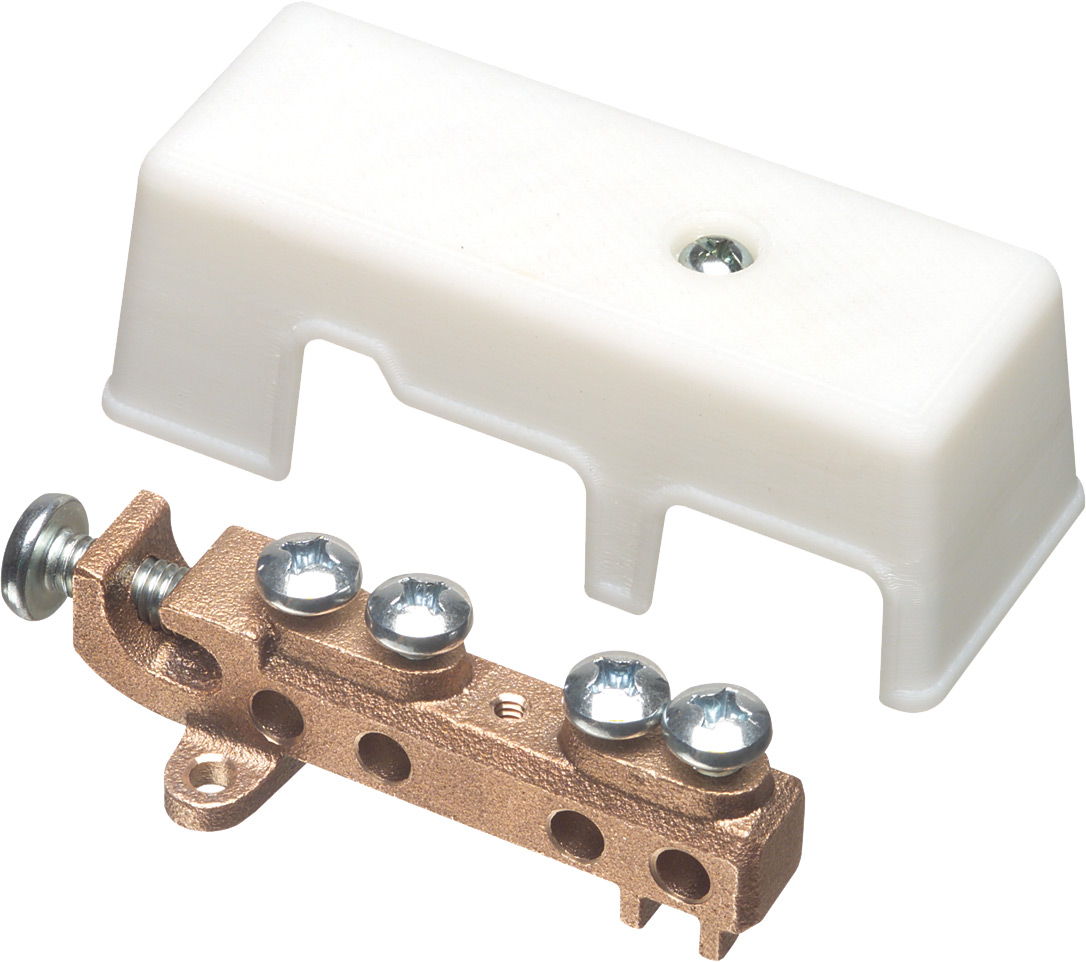

intersystem grounding bridge with cover

GBB5 Product Information

Intersystem Grounding Bridge
Specification SheetCatalog Page E-mail

Additional Images

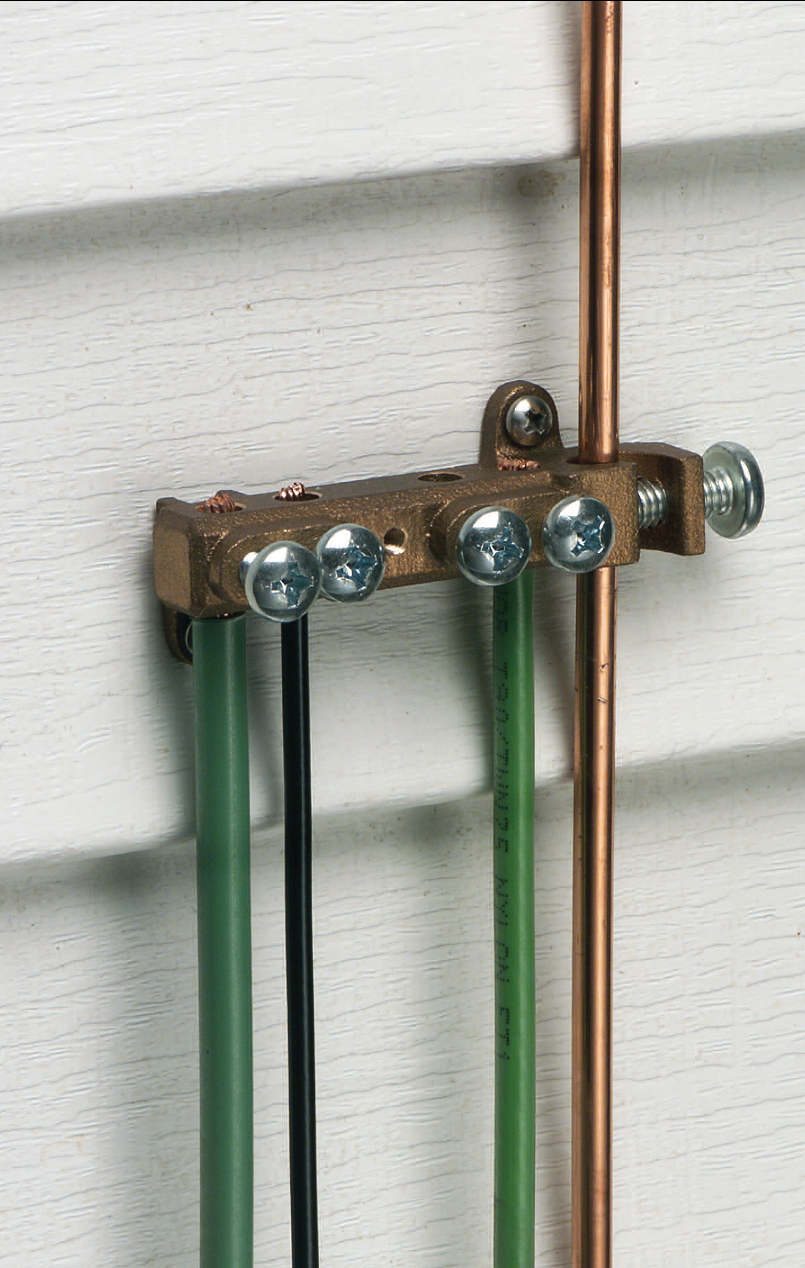

grounding bridge mounted to siding with 4 ground wires attached

Basic Information

Part Number GBB5
Description Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Attaches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Bronze with white Cover.
UPC 018997760968
Unit Packaging 1pc
Standard Packaging 10pcs

Physical Information

Instructional Video GBB5 Instructional Video
Instruction Sheet GBB5 Instruction Sheet
Weight0.550 lbs/each
Color Bronze
Material(s)Bronze (Bridge) / Paintable Plastic (Cover)

Technical Information

Line Drawing GBB5 Line Drawing
ApplicationProvides Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Equipment Grounding Conductor#6 to #2 Copper or Aluminum - Solid or Stranded
Grounding Electrode#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Termination Points(4) Four
Trade Size#6 to #2 Grounding Electrode

Comes With

(1)Grounding Bridge
(1)5/16"-18 x 3/4" Long Screw
(4)1/4"-20 x 5/8" Long Screws
(1)#10-24 x 1" Long Screw (Cover)
