GBB5250 Product InformationIntersystem Grounding Bridge Catalog Page E-mail |
Additional Images
Basic Information
| Part Number | GBB5250 |

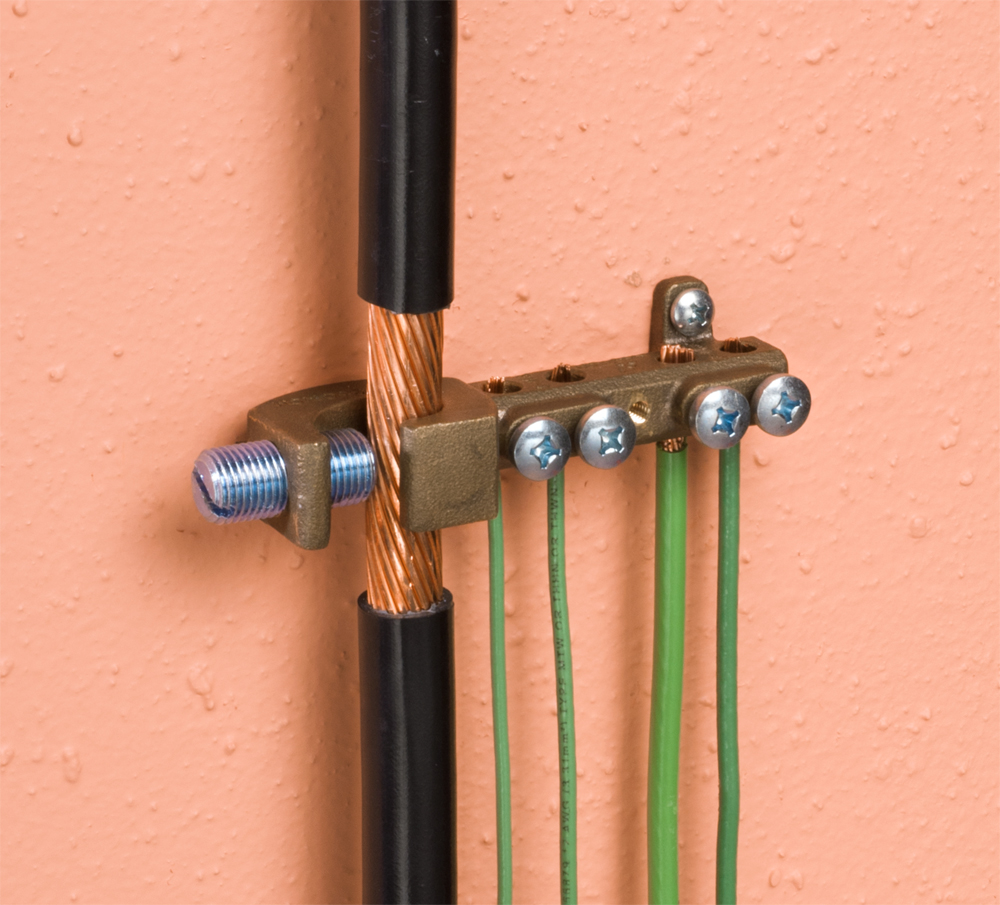

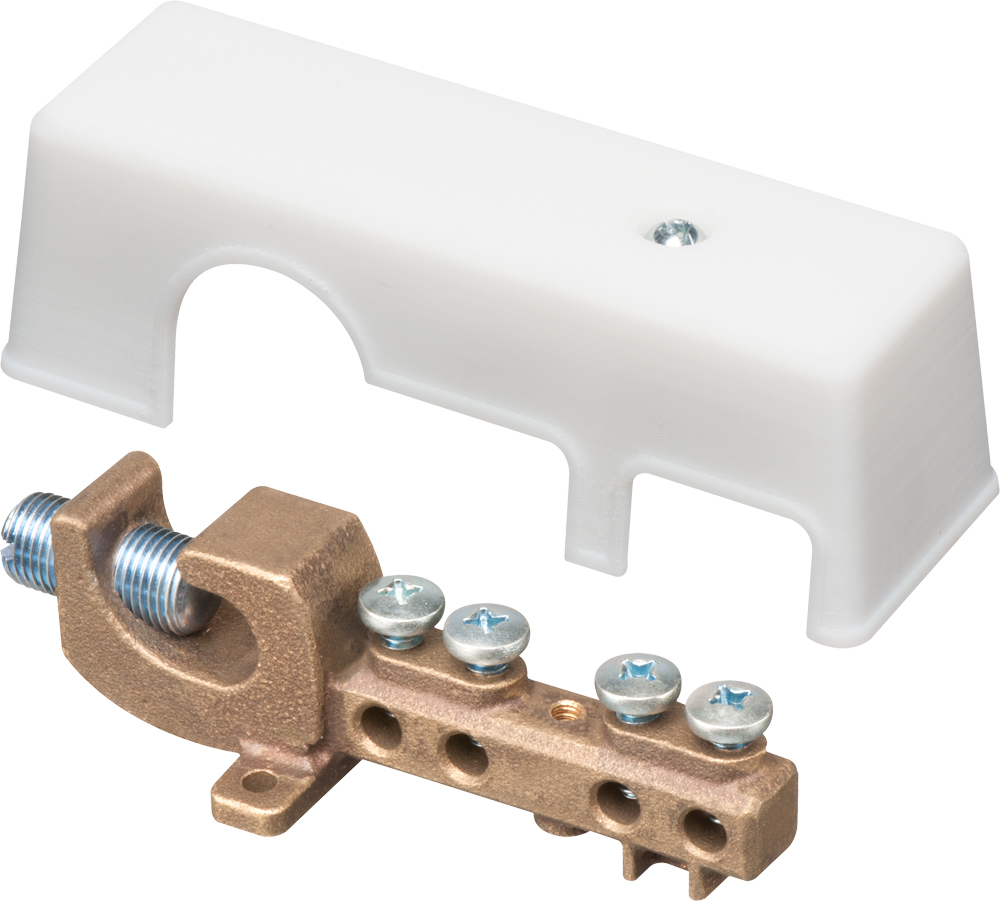

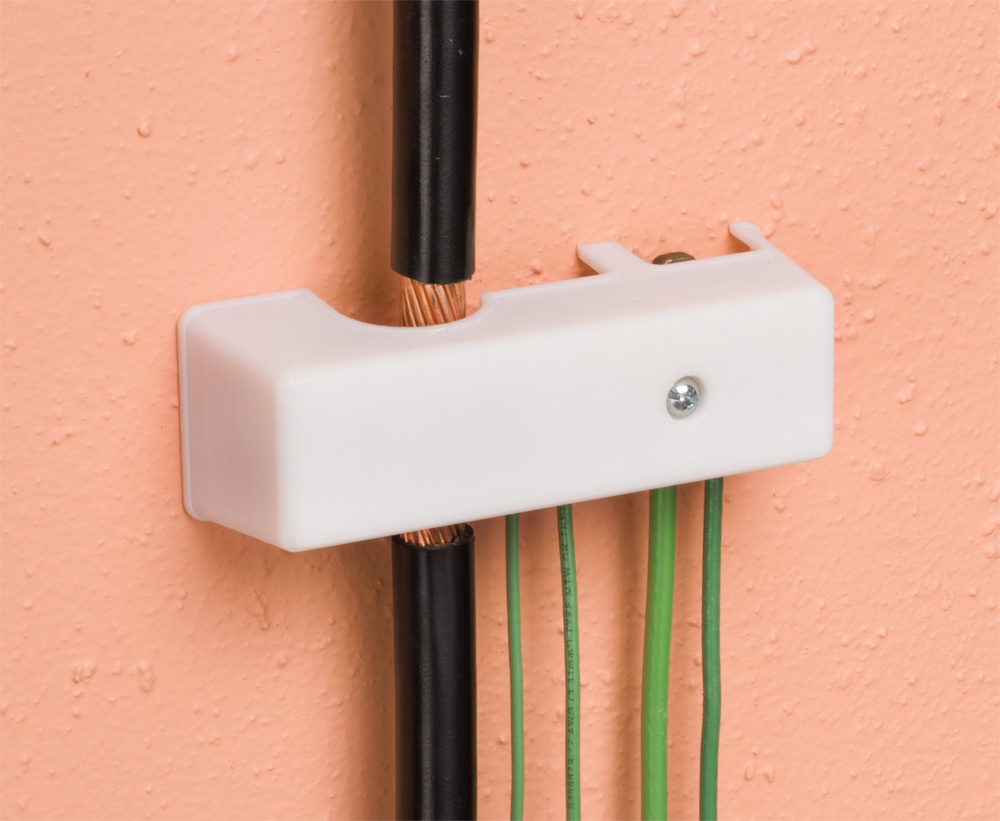

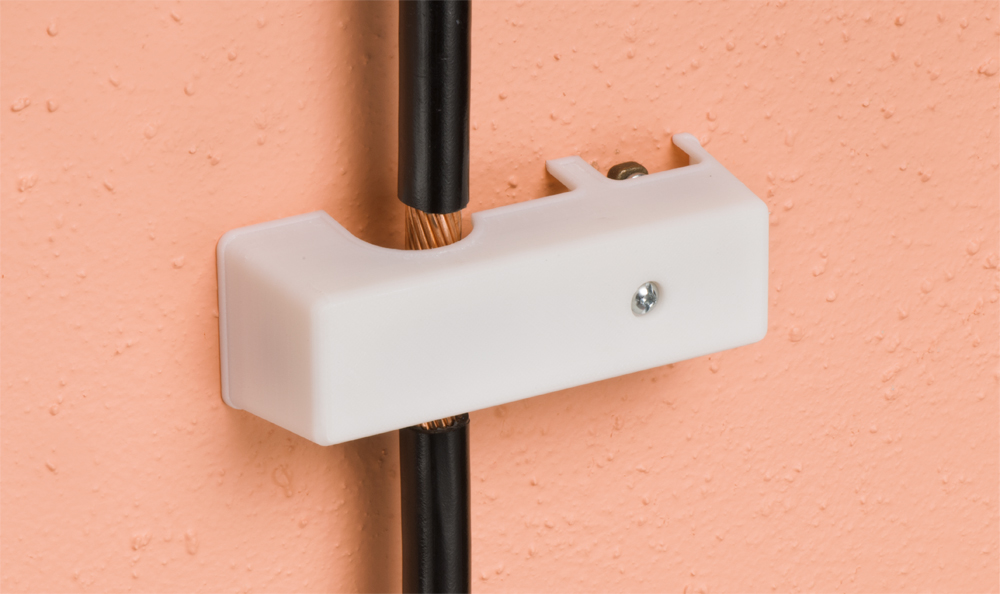

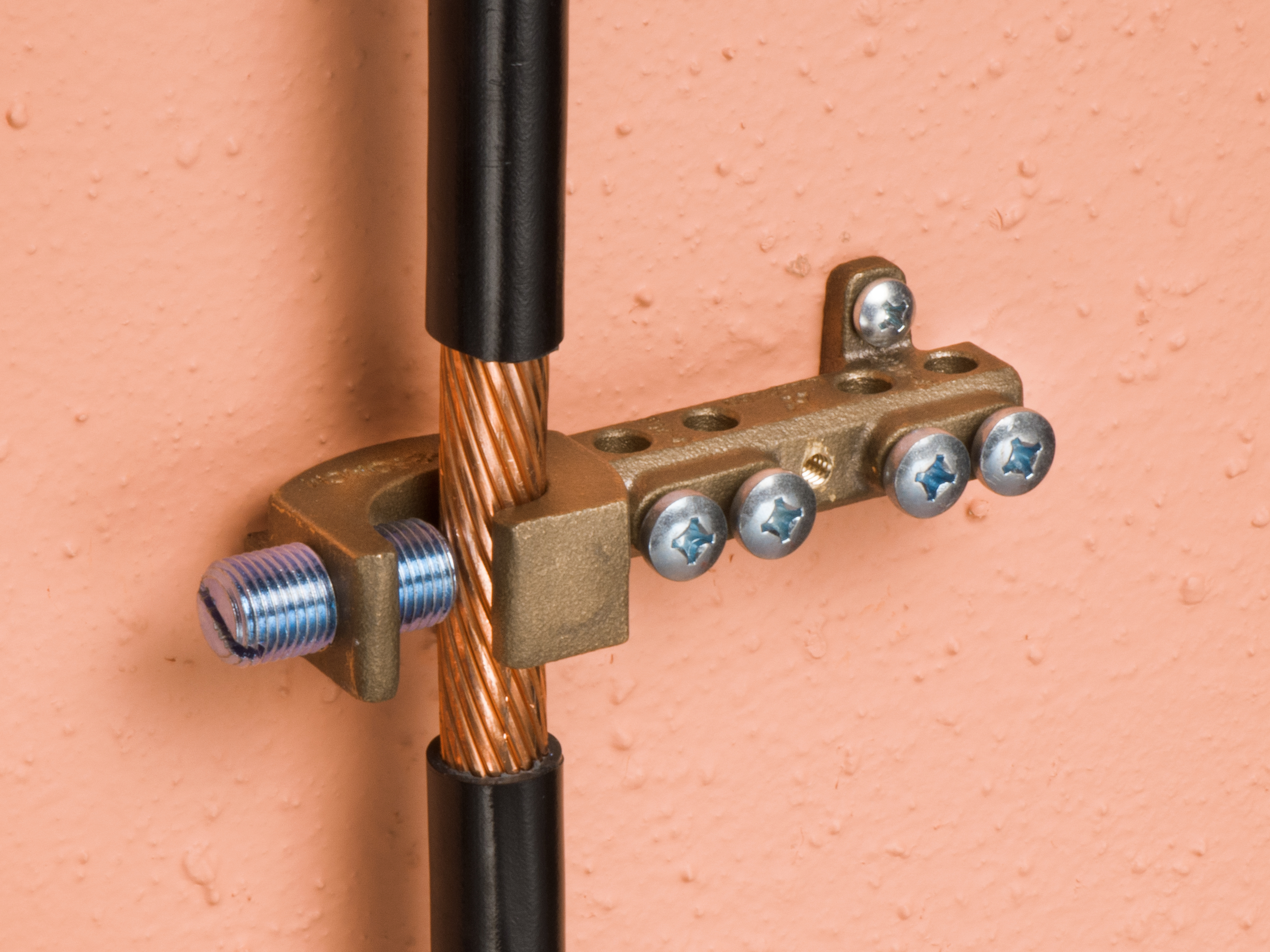

| Description | Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Attaches to grounding conductor with lay in style lug with a cable range of #6 to 250MCM grounding wire solid or stranded. Bronze with white Cover. |
| UPC | 018997097569 |
| Unit Packaging | 1pc |
| Standard Packaging | 10pcs |
| Listing |
|
Physical Information
| Weight | 0.837 lbs/each |
| Height | 1.869" |
| Width | 5.462" |
| Color |  Bronze |
| Material(s) | Bronze (Bridge) / Paintable Plastic (Cover) |
Technical Information
| Line Drawing | GBB5250 Line Drawing |
| Application | Provides Reliable Intersystem Bonding Between Power and Communication Grounding Systems |
| Equipment Grounding Conductor | 250MCM Copper or Aluminum - Solid or Stranded |
| Grounding Electrode | 250MCM Copper or Aluminum - Solid or Stranded |
| Intersystem Bonding and Grounding Conductors | #14 to #4 Copper or Aluminum - Solid or Stranded |
| Termination Points | (4) Four |
| Trade Size | 250MCM Grounding Electrode |
