TV bridge kit

TVB712BK Product Information

TV Bridge® II Kit with Angled Power Box
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number TVB712BK

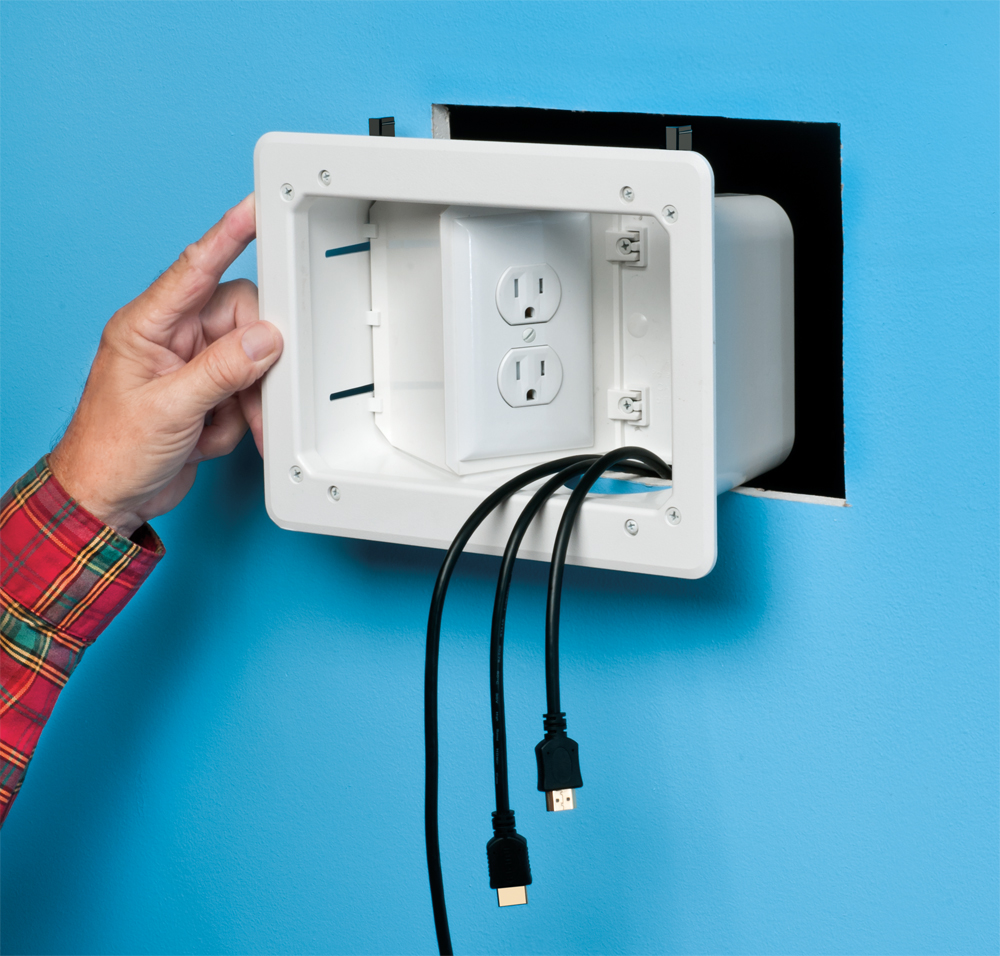

Description Recessed prewired TV BRIDGE® kit with angled 1 gang power. Allows power to be bridged from one stud bay to the bridge kit.
UPC-A 018997127815
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Weight2.826 lbs/each
Height7.561"
Width10.210"
Color White
Material(s)Plastic

Technical Information

Line Drawing TVB712BK Line Drawing
Knockout Size(s)1/2" and 3/4"
Style(2) 2-Gang Boxes for Power/Low-Voltage
Trade Size(2) 2-Gang
UsageMount a Flat Screen TV Flush Against the Wall

Comes With

(1)Upper single-gang recessed box containing an angled power outlet connected to 7ft. of NM cable
(1)Trim Plate
(1)Pre-wired 4 ft. 110V outlet plug
(1)Lower 2-gang recessed box containing low voltage and power wired to the upper box
(1)2-Gang Decorator-Style / GFCI Wall Plate with screws
(4)#6-32 x 1/2" Long Screws
