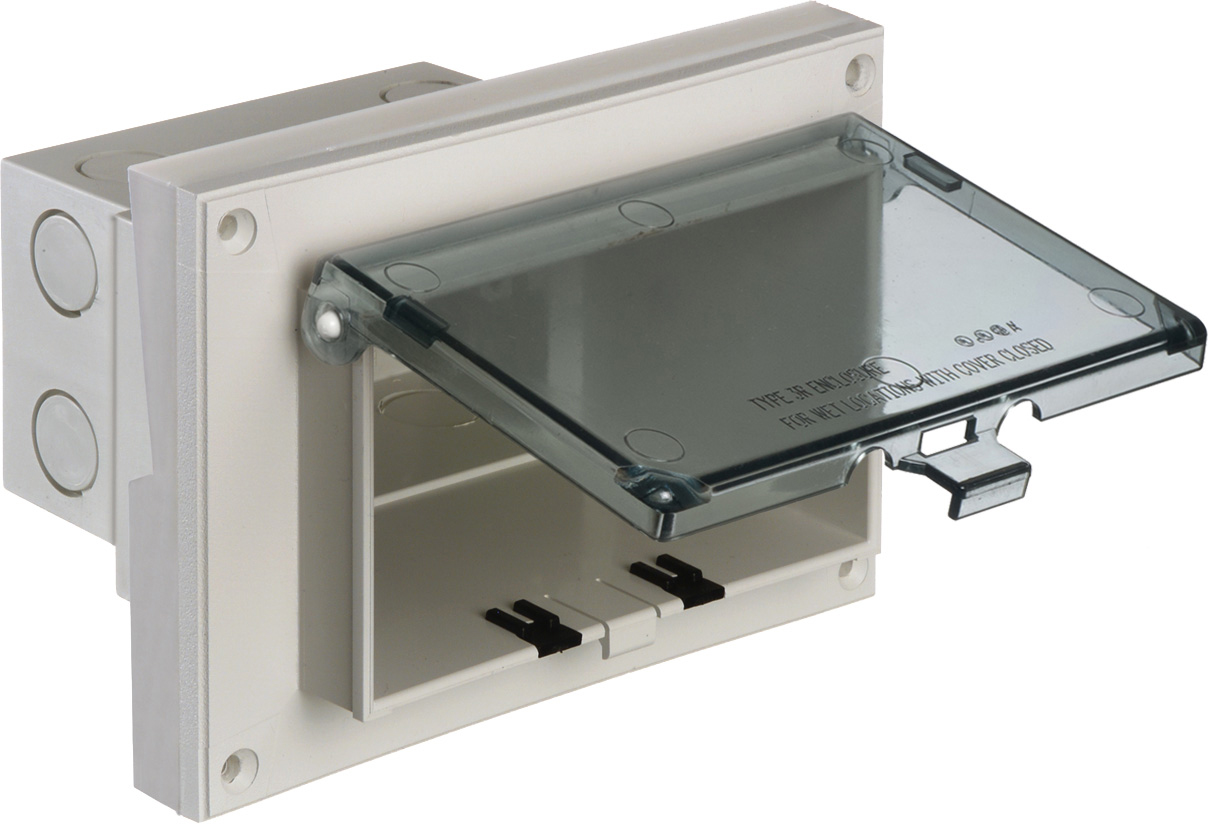

DBHR131C Product InformationLow Profile InBox™ for Retrofit Siding Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | DBHR131C |
| Description | Low profile Inbox for retrofit siding construction. Horizontal with clear cover. Siding Lap size 1/4 or 5/16 |
| UPC-A | 018997776129 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
| Available w/ Grounding Clip | Yes - Order Part Number DBHR131CGC |
Physical Information
| Instructional Video | DBHR131C Instructional Video |
| Instruction Sheet | DBHR131C Instruction Sheet |
| Weight | 1.488 lbs/each |
| Height | 7.188" |
| Width | 4.937" |
| Color |  White |
| Cover Color |  Clear |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | DBHR131C Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9; for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Siding Type | 1/4" or 5/16" Lap |
| Style | Horizontal |
| Trade Size | 1-Gang |
Comes With
| (1) | Weatherproof-in-use extra-duty cover |
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | Siding profile adapter plate |
| (2) | Rolls of caulk |
| (1) | NM94 Cable Connector |
| (2) | Bug Plugs |
| (1) | Box |
| (4) | #8 x 2" Long Screws |
| (4) | #8 x 1-1/2" Long Screws |
