low profile in-box

DBHR151W Product Information

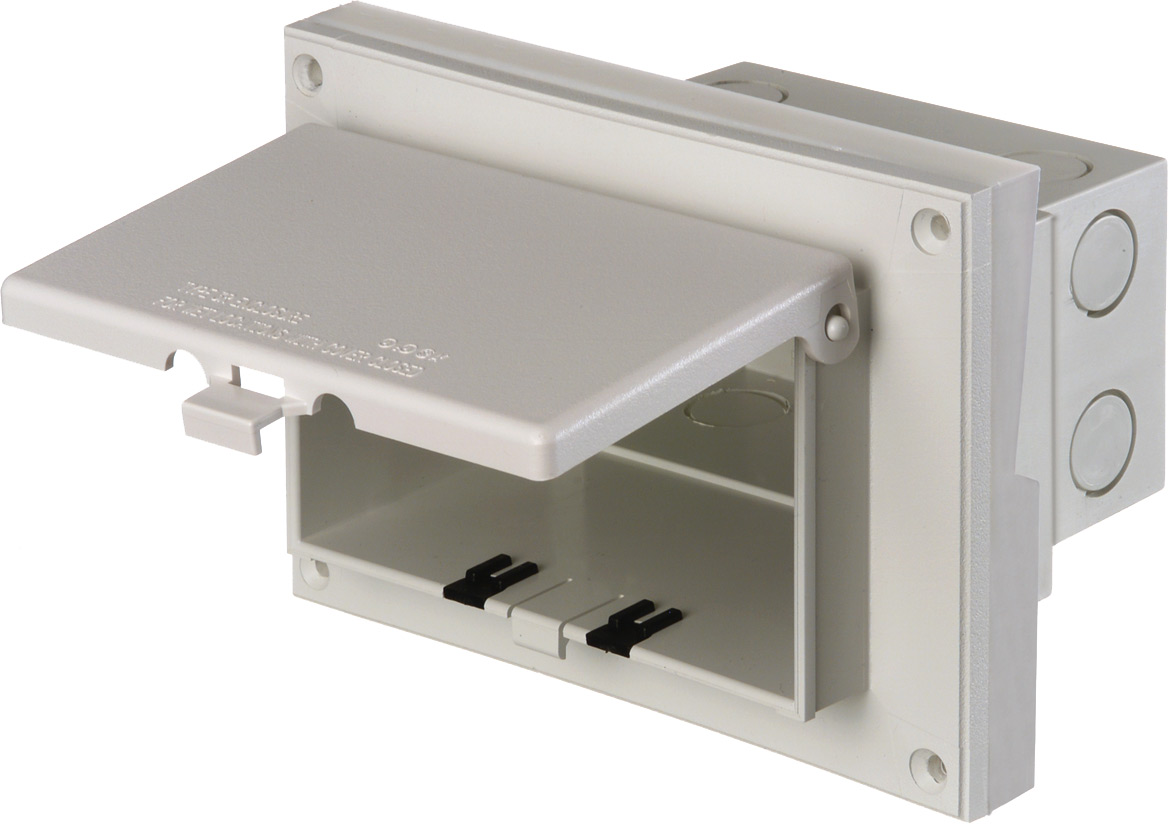

Low Profile InBox™ for Retrofit Siding
Specification SheetCatalog Page E-mail

Additional Images

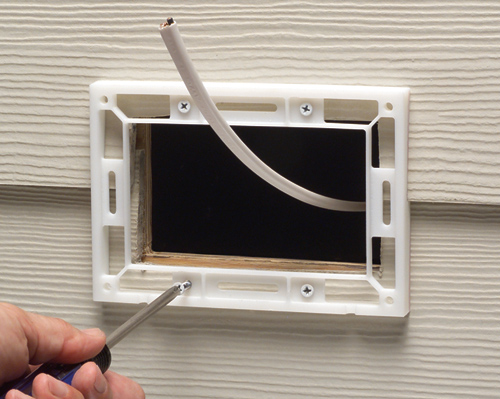

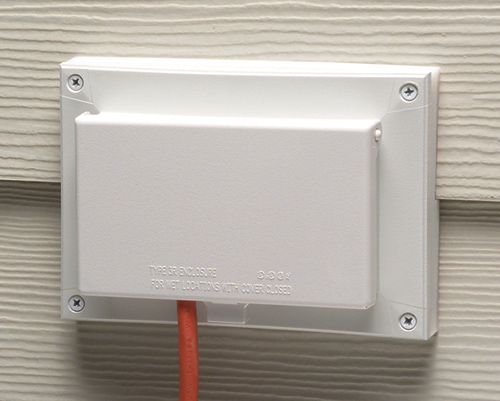

person attaching siding profile to house siding with screwdriver extension cord plugged into outdoor electrical box with cover closed

Basic Information

Part Number DBHR151W
Description Low profile Inbox for retrofit siding construction. Horizontal with white cover. Siding Lap size 5/8"
UPC 018997776228
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number DBHR151WGC

Physical Information

Instructional Video DBHR151W Instructional Video
Instruction Sheet DBHR151W Instruction Sheet
Weight1.576 lbs/each
Height7.188"
Width4.937"
Color White
Material(s)UV-Rated Plastic

Technical Information

Line Drawing DBHR151W Line Drawing
NEC ComplianceMeets 2014 NEC Section 406.9; for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
Siding Type5/8" Lap
StyleHorizontal
Trade Size1-Gang

Comes With

(1)Weatherproof-in-use extra-duty cover
(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)Siding profile adapter plate
(2)Rolls of caulk
(1)NM94 Cable Connector
(2)Bug Plugs
(1)Box
(4)#8 x 2" Long Screws
(4)#8 x 1-1/2" Long Screws
