60VW Product InformationLow Profile IN-and-OUT® Covers for New or Existing Construction Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | 60VW |

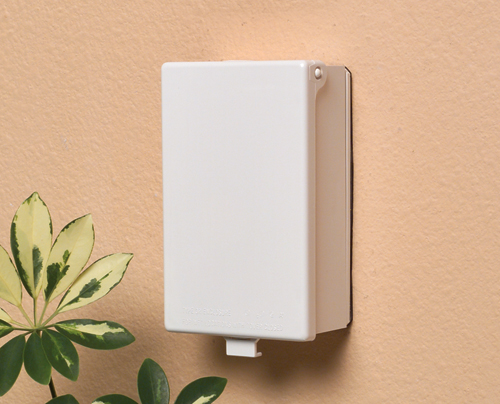

| Description | 1 Gang Low Profile, IN and OUT® cover for new and existing construction. Weatherproof in-use. Meets extra-duty code requirements when cord is plugged in. UV rated plastic. Vertical. Color - White, Paintable. |
| UPC-A | 018997006806 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Instructional Video | 60VW Instructional Video |
| Instruction Sheet | 60VW Instruction Sheet |
| Weight | 0.648 lbs/each |
| Height | 6.274" |
| Width | 3.752" |
| Color |  White |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | 60VW Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Style | Vertical |
| Trade Size | 1-Gang |
Comes With
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | IN and OUT™ Cover |
| (2) | #6-32 x 1-1/4" Long Screws |
