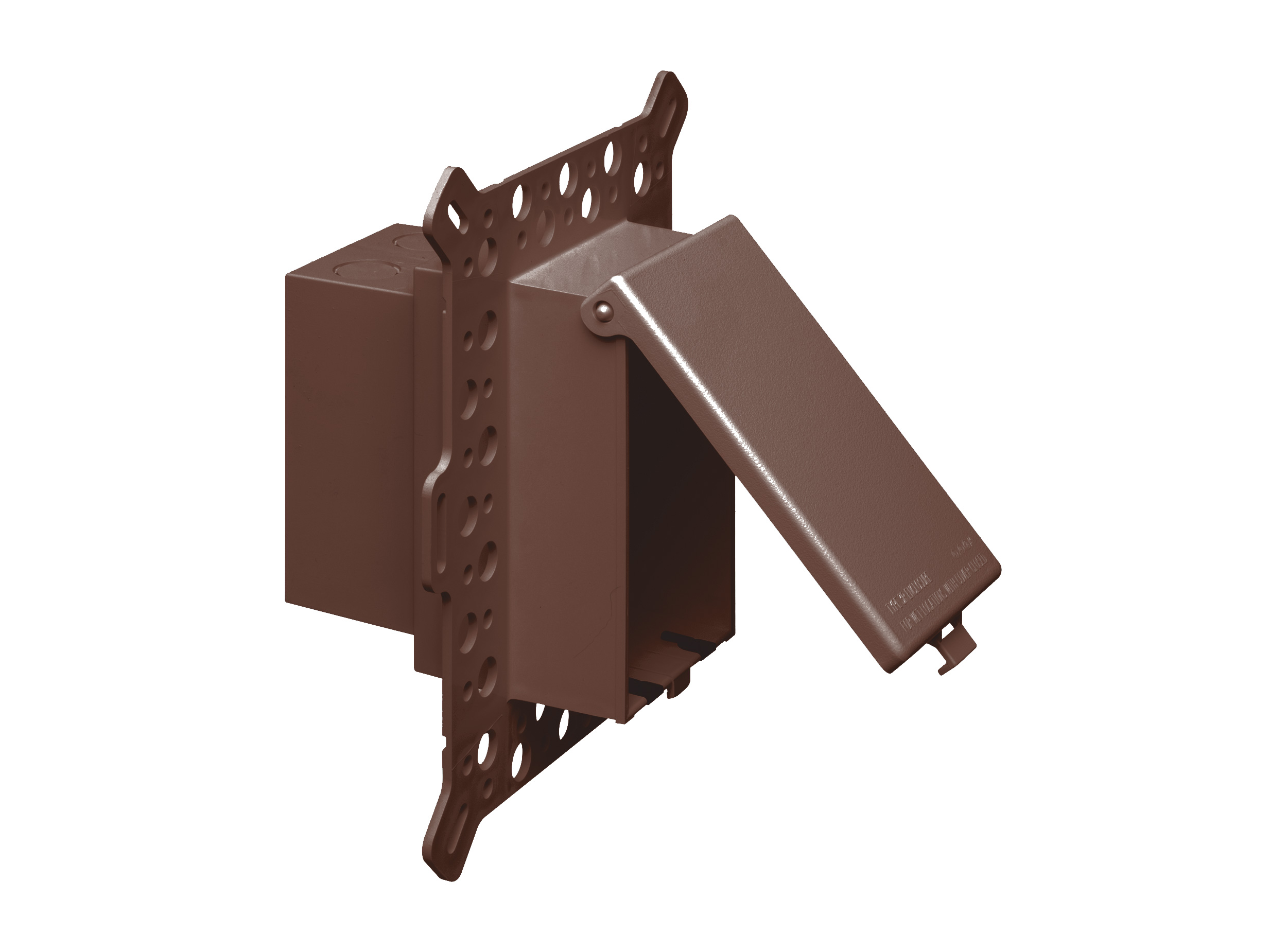

DBVM1BR Product InformationLow Profile, Recessed Electrical Box with Weatherproof-in-use Cover Specification SheetCatalog Page E-mail |
Basic Information
| Part Number | DBVM1BR |
| Description | Low Profile Inbox for new construction for stucco, textured and rigid siding. Vertical with weatherproof while in use. Extra Duty brown cover. |
| UPC-A | 018997090263 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Weight | 1.150 lbs/each |
| Height | 9.058" |
| Width | 7.012" |
| Color |  Brown |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | DBVM1BR Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Trade Size | 1-Gang |
Comes With
| (1) | Weatherproof-in-use extra-duty cover |
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | NM94 Cable Connector |
| (1) | Mud Cover |
| (2) | Bug Plugs |
| (1) | Box |
| (1) | Block bushing with washer |
