DHB1BR Product Information

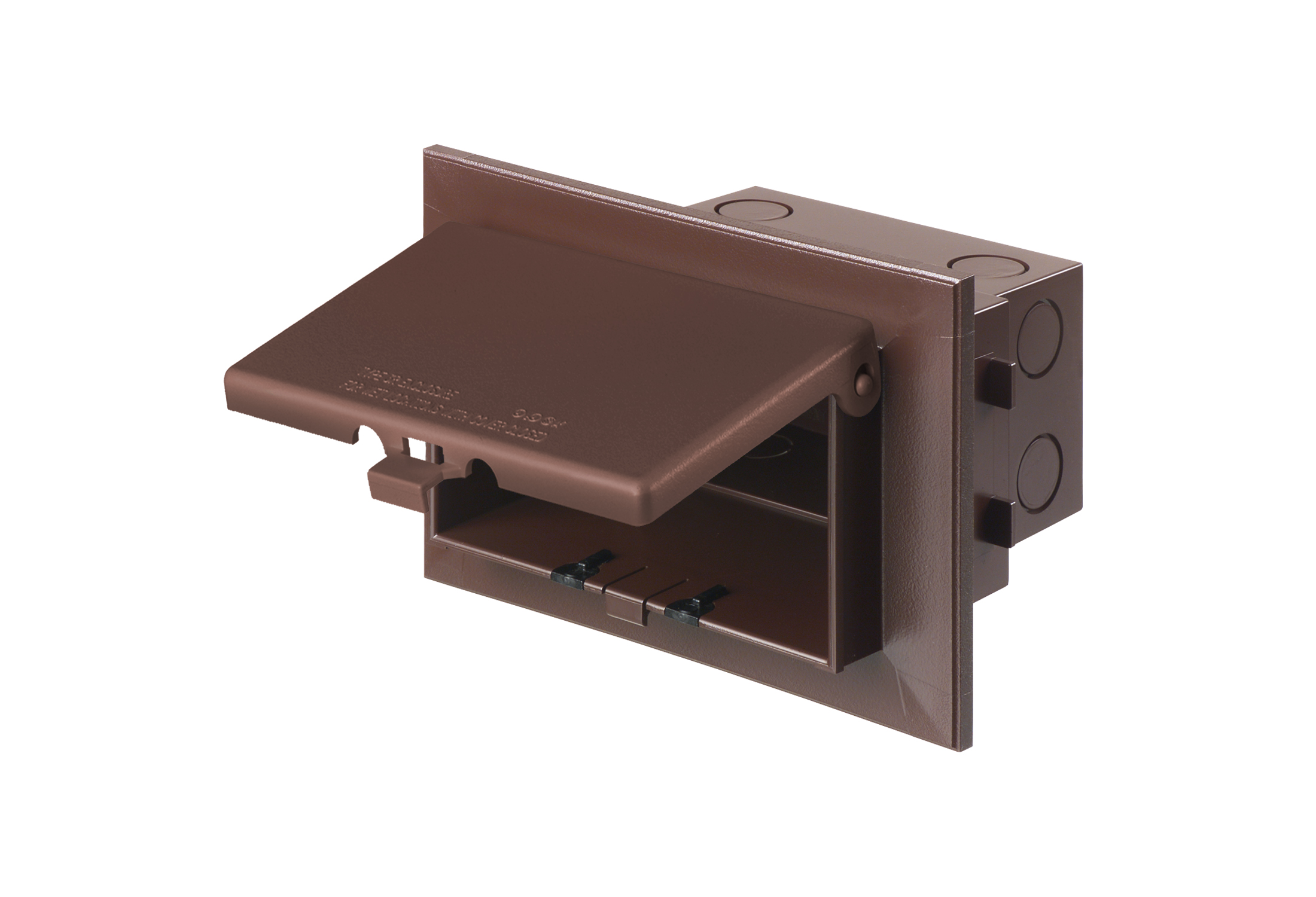

Low Profile InBox™ with Adapter Sleeve for New Brick Construction
Specification SheetCatalog Page E-mail

Additional Images

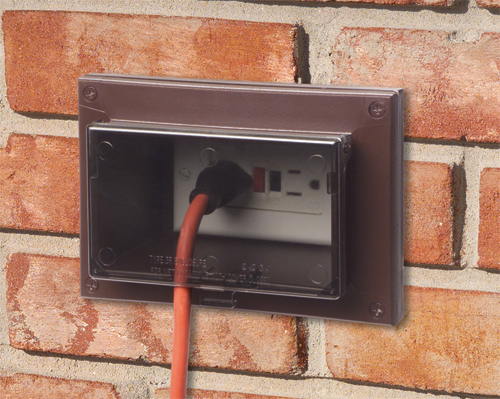

extension cord plugged into outdoor electrical box with cover closed

Basic Information

Part Number DHB1BR
Description Low profile Inbox with adapter sleeve for new brick. Horizontal with weatherproof while in use brown cover and brown box.
UPC 018997548757
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number DHB1BRGC

Physical Information

Weight1.541 lbs/each
Height7.186"
Width4.934"
Color Brown
Material(s)UV-Rated Plastic

Technical Information

Line Drawing DHB1BR Line Drawing
NEC ComplianceMeets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
StyleHorizontal
Trade Size1-Gang

Comes With

(1)Weatherproof-in-use extra-duty cover
(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)Roll of caulk
(1)NM94 Cable Connector
(1)Mud Cover
(2)Bug Plugs
(1)Box
(1)Adapter Sleeve
(4)#8-32 x 5/8" Long Screws
