DHB1W Product InformationLow Profile InBox™ with Adapter Sleeve for New Brick Construction Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | DHB1W |
| Description | Low profile Inbox with adapter sleeve for new brick. Horizontal with weatherproof while in use white cover and white box. |
| UPC | 018997548825 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
| Available w/ Grounding Clip | Yes - Order Part Number DHB1WGC |
Physical Information
| Weight | 1.800 lbs/each |
| Height | 4.934" |
| Width | 7.186" |
| Color |  White |
| Material(s) | UV-Rated Plastic |
| Paintable | Yes |
Technical Information
| Line Drawing | DHB1W Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Style | Horizontal |
| Trade Size | 1-Gang |

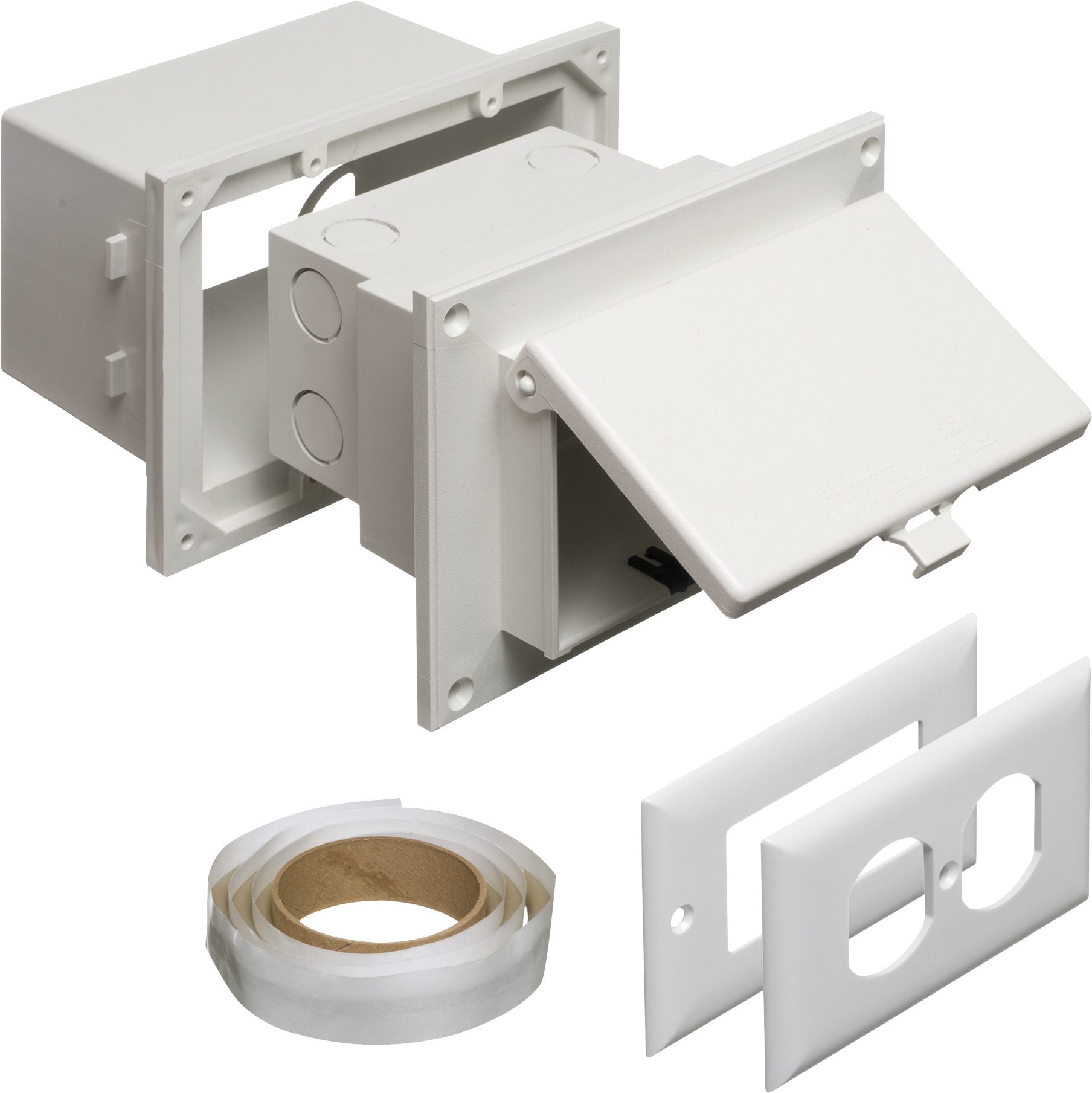

Comes With
| (1) | Weatherproof-in-use extra-duty cover |
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | Roll of caulk |
| (1) | NM94 Cable Connector |
| (1) | Mud Cover |
| (2) | Bug Plugs |
| (1) | Box |
| (1) | Adapter Sleeve |
| (4) | #8-32 x 5/8" Long Screws |
