PVC entrance cap with adapters and sleeves

PVC1040 Product Information

PVC Entrance Cap with Adapters and Sleeves
Specification SheetCatalog Page E-mail

Additional Images

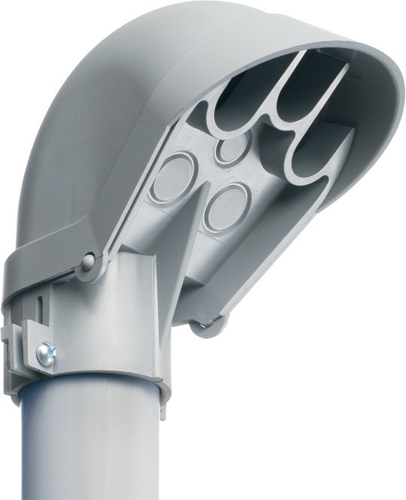

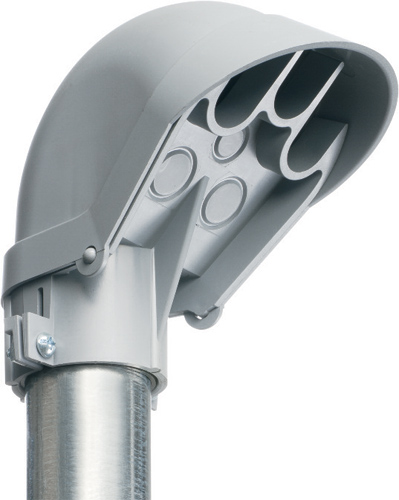

PVC entrance cap mounted on pipe PVC entrance cap mounted on pipe

Basic Information

Part Number PVC1040
Description PVC Entrance cap for rigid, IMC, EMT, Rigid PVC. Trade Size 1-1/2", 1-1/4". Mast size 1-1/2", 1-1/4". Wire Holes two at .823 and one at .635.
UPC 018997731470
Unit Packaging 1pc
Standard Packaging 10pcs
Country of Origin

Physical Information

Instructional Video PVC1040 Instructional Video
Weight0.528 lbs/each
Color Gray
Material(s)UV-Rated Plastic

Technical Information

Line Drawing PVC1040 Line Drawing
EMT Size1-1/4", 1-1/2"
Rigid Cable Size1-1/4", 1-1/2"
Trade Size1-1/4", 1-1/2"

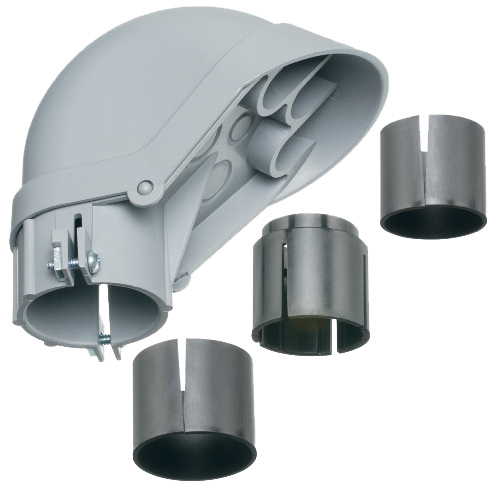

Comes With

(1)Clamp-On Entrance Cap
(1)1-1/4" Reducing Bushing
(1)1-1/4" EMT Sleeve
(1)1-1/2" EMT Sleeve
