8081 Product Information

Siding Box Kits (Fixtures and Receptacles)
Catalog Page E-mail

Basic Information

Part Number 8081

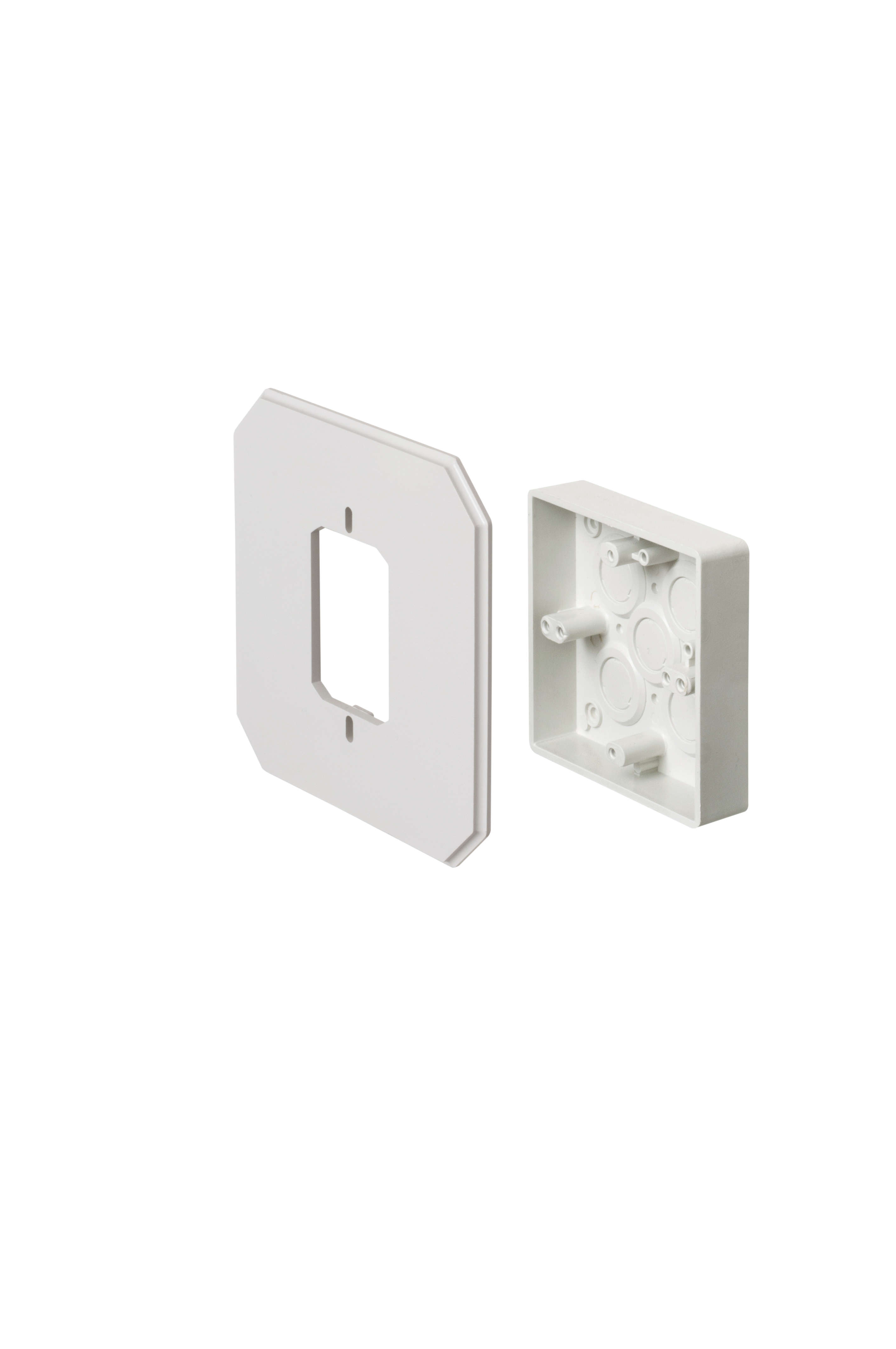

Description This siding box kit includes the box, siding block, and a non-metallic (NM) cable connector. It works on all siding types, and can be installed before or after siding is up (new construction or retrofit). Mounting holes are provided on the inside of the box. Both the box and siding block are UV rated, textured, and paintable to match any siding or trim. The cover measures 6.650" x 6.650", the depth of the box is 1.125", and the box has a volume of 15-1/2" cubic inches.
UPC 018997808127
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number 8081GC

Physical Information

Weight0.654 lbs/each
Height6.650"
Width6.650"
Color White
Material(s)UV-Rated Plastic
PaintableYes

Technical Information

Line Drawing 8081 Line Drawing
Siding TypeAll Types
Stylew/o Flange
UsageFixtures, Devices
