8091F Product Information

Siding Box Kits (Fixtures and GFCIs)
Catalog Page E-mail

Basic Information

Part Number 8091F

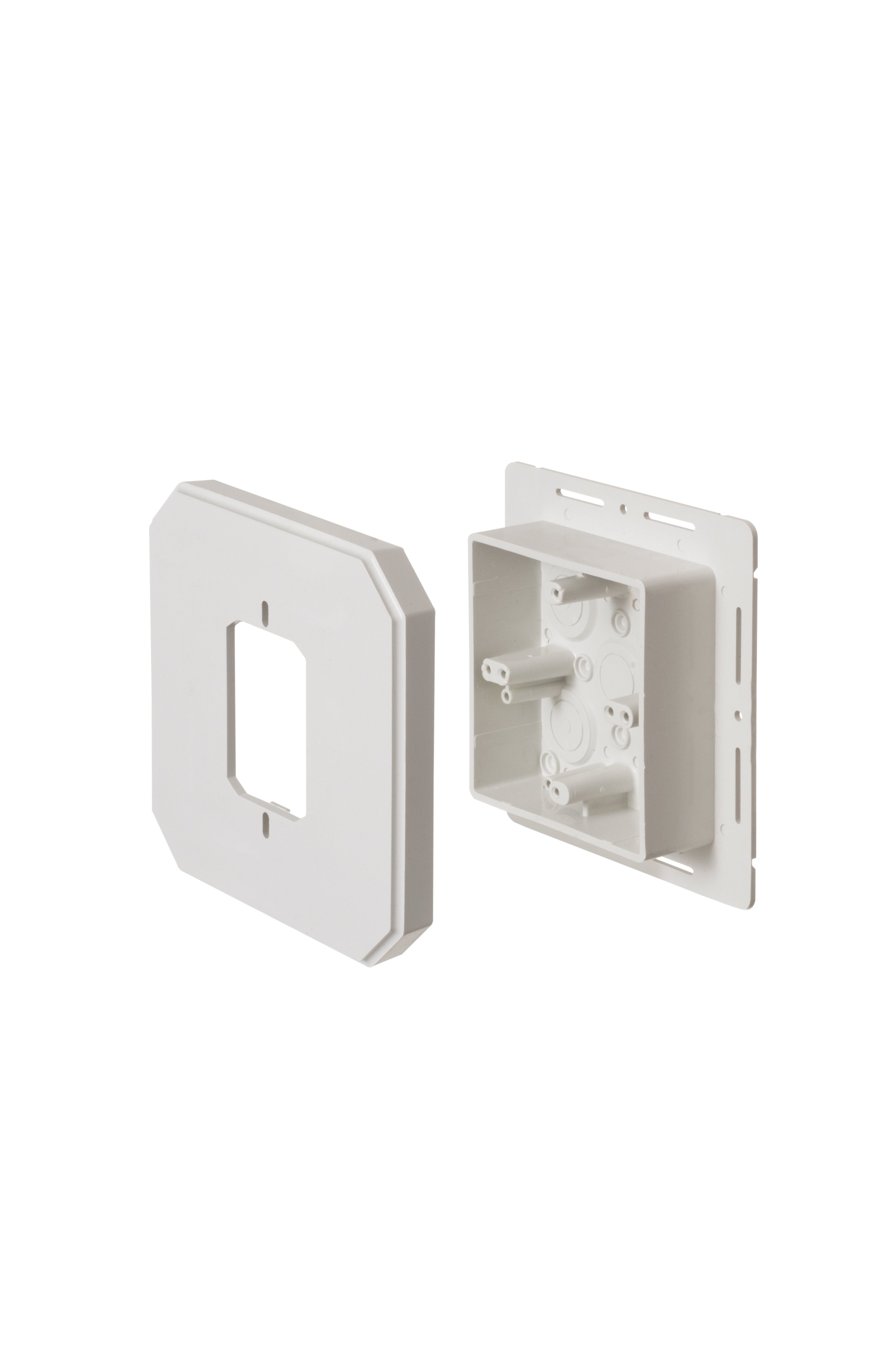

Description This siding box kit includes the box w/flange, siding block, and a non-metallic (NM) cable connector. It works on all siding types, and can be installed before or after siding is up (new construction or retrofit). Mounting holes are provided on the inside of the box and along the flange. Both the box and siding block are UV rated, textured, and paintable to match any siding or trim. The cover measures 6.650" x 6.650", the depth of the box is 1.625", and the box has a volume of 24-1/2" cubic inches. To mount this box with siding already up, simply score and break off flanges before mounting.
UPC 018997178565
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number 8091FGC

Physical Information

Weight0.976 lbs/each
Height6.650"
Width6.650"
Color White
Material(s)UV-Rated Plastic
PaintableYes

Technical Information

Line Drawing 8091F Line Drawing
Siding TypeAll Types
Stylew/ Flange
UsageGFCIs, Fixtures
