8091FB Product Information

Siding Box Kits (Fixtures and GFCIs)
Catalog Page E-mail

Basic Information

Part Number 8091FB

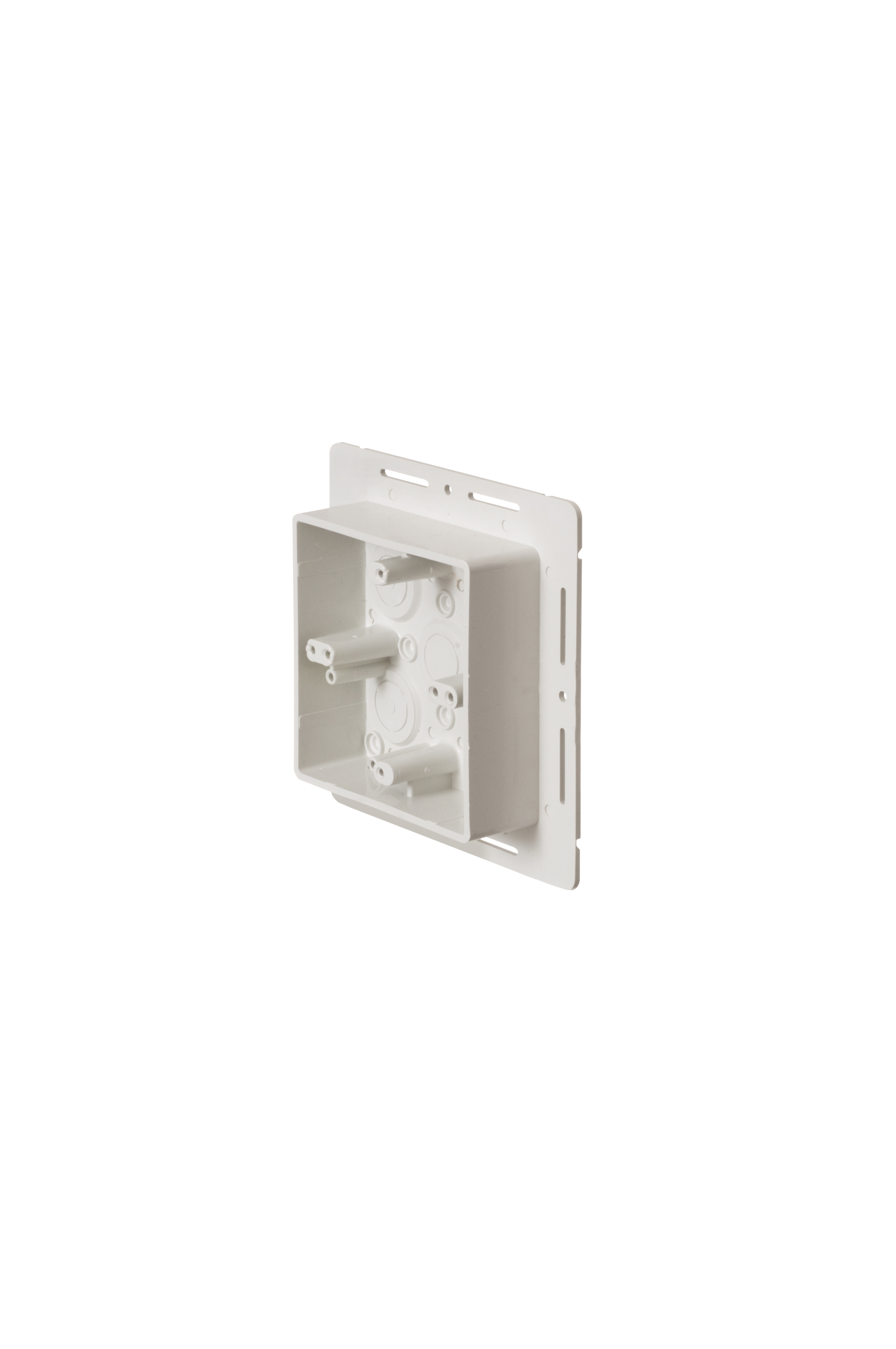

Description This siding box kit includes the box w/flange only. It works on all siding types, and can be installed before or after siding is up (new construction or retrofit). Mounting holes are provided on the inside of the box and along the flange. The box is UV rated, textured, and paintable to match any siding or trim. The box measures 6.250" x 6.250", the depth of the box is 1.531", and the box has a volume of 24-1/2" cubic inches. To mount this box with siding already up, simply score and break off flanges before mounting.
UPC 018997109453
Unit Packaging 10pcs
Standard Packaging 10pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number 8091FBGC

Physical Information

Weight0.480 lbs/each
Height6.250"
Width6.250"
Color White
Material(s)UV-Rated Plastic
PaintableYes

Technical Information

Line Drawing 8091FB Line Drawing
Siding TypeAll Types
StyleBox Only
UsageGFCIs, Fixtures
