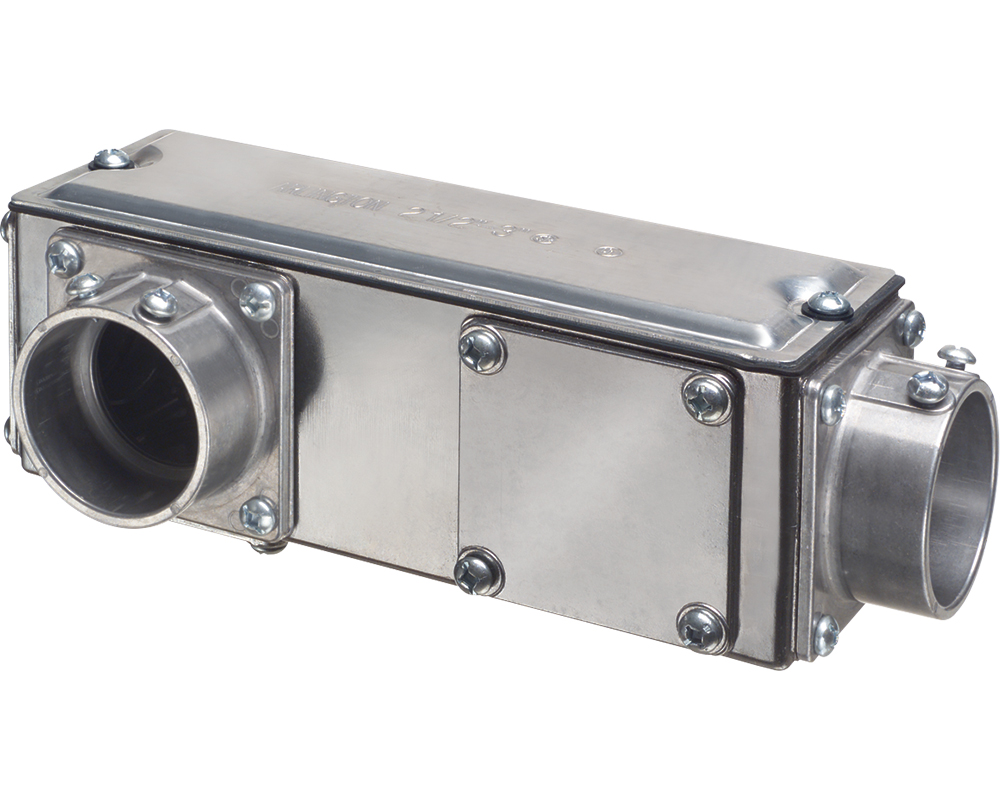

conduit body in LR configuration

16 Product Information

AnyBODY™ Set-Screw Conduit Body for EMT or Rigid
Catalog Page E-mail

Additional Images

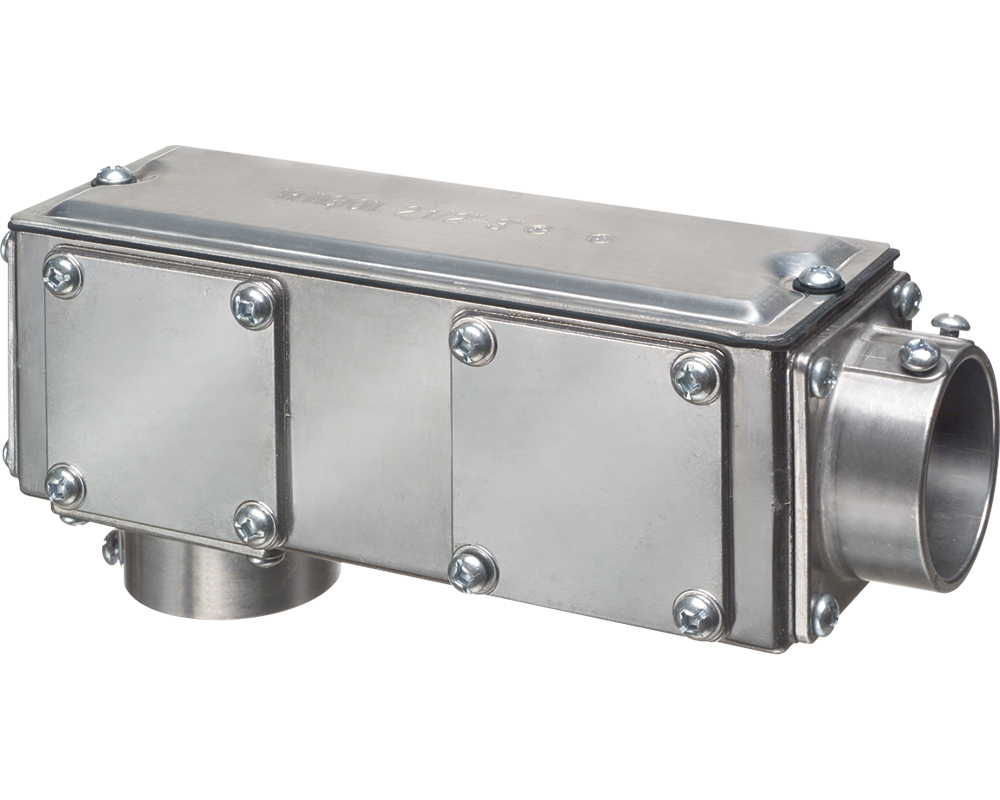

conduit body in LL configuration

Basic Information

Part Number 16
Description 2-1/2 copper free aluminum die cast, set-screw ANYBODY for EMT or RIGID. Ships as an LB but converts to a T, LL, LR or C. Five conduit bodies in one.
UPC 018997164001
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Weight3.755 lbs/each
Height4.800"
Width14.340"
Color Silver
Material(s)Copper-Free Aluminum

Technical Information

Line Drawing 16 Line Drawing
Conduit TypeEMT or Rigid
NEC ComplianceSection 314.16 (c) (2) of the 2014 NEC
Trade Size2-1/2"
Volume175.50 Cubic Inches

Comes With

(3)Set-Screw Flanges
(4)Cover Plates
(1)Aluminum Body
(1)Access Cover Gasket
(1)Access Cover
