low profile strain relief cord connector

LPCG507 Product Information

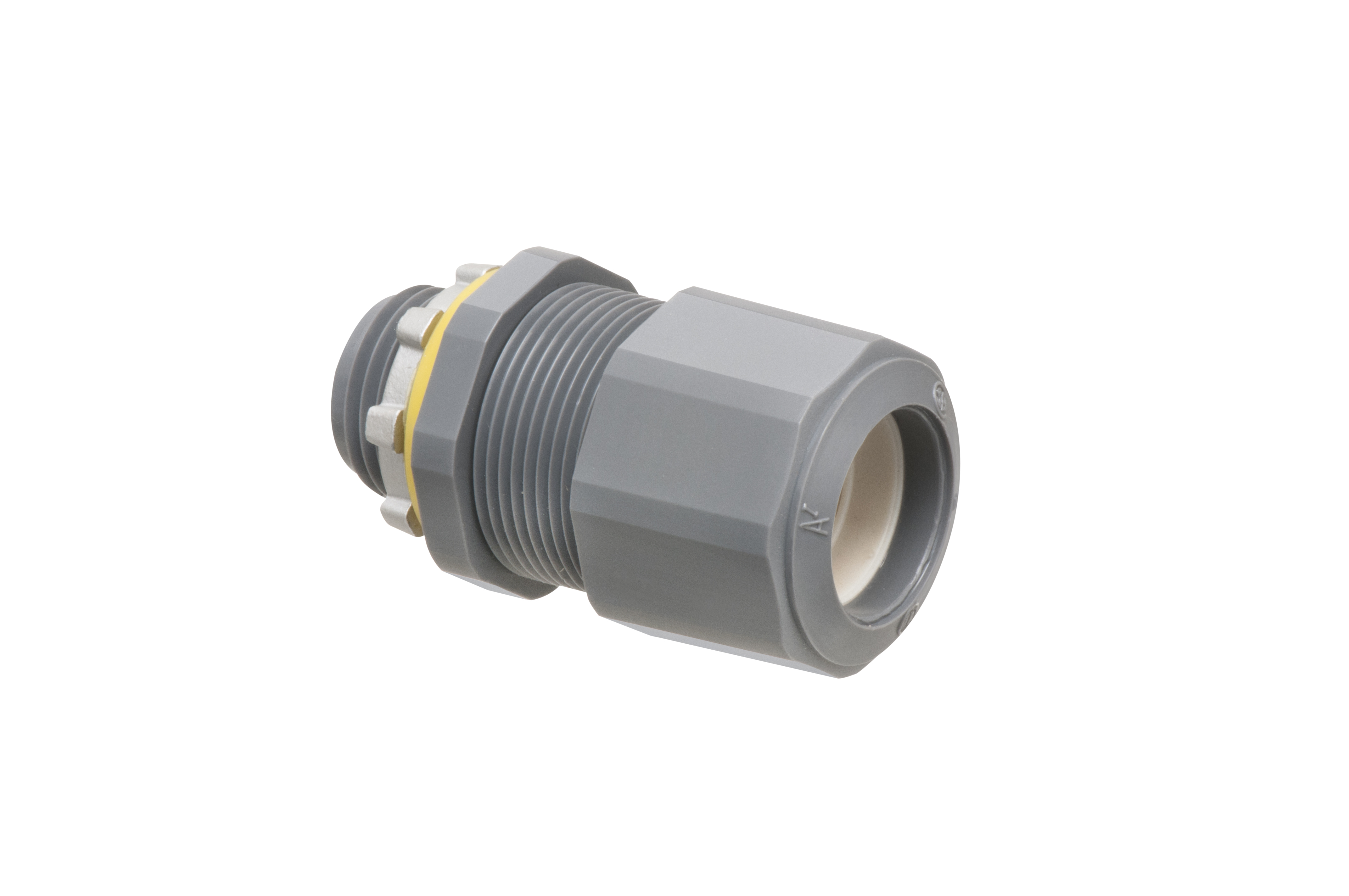

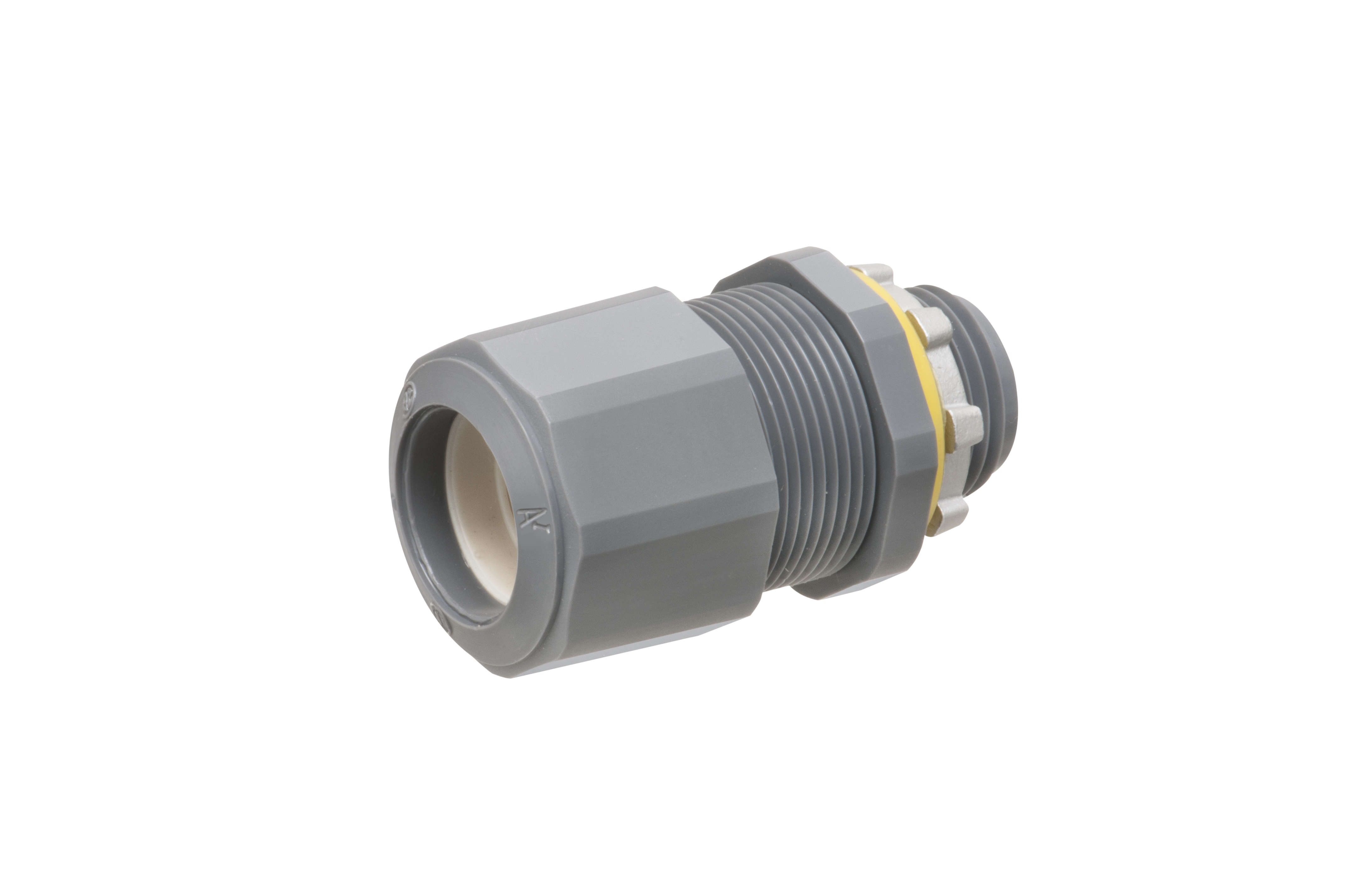

Low-Profile Strain Relief Non-Metallic Cord Connector
Specification SheetCatalog Page E-mail

Additional Images

exploded view of components that make up cord connector low profile strain relief cord connector

Basic Information

Part Number LPCG507
Description Low-profile non-metallic, liquid-tight, oil-tight, and gray strain relief cord connector furnished with a sealing ring and locknut. Supports .385 to .600 cord range with a 1/2 inch trade size.
UPC 018997503541
Unit Packaging 25pcs
Standard Packaging 100pcs
Country of Origin
Listing

Physical Information

Instructional Video LPCG507 Instructional Video
Weight0.053 lbs/each
Height1.230"
Width1.230"
Color Gray
Additional Color Options Black - LPCG507BL
White - LPCG507W
Material(s)Nylon (Body)
Santoprene® (Grommet)
Polyethylene (Sealing Ring)
Zinc (Locknut)

Technical Information

Line Drawing LPCG507 Line Drawing
Cord Range0.385" - 0.600"
Liquid TightYes
Oil TightYes
Trade Size1/2"
