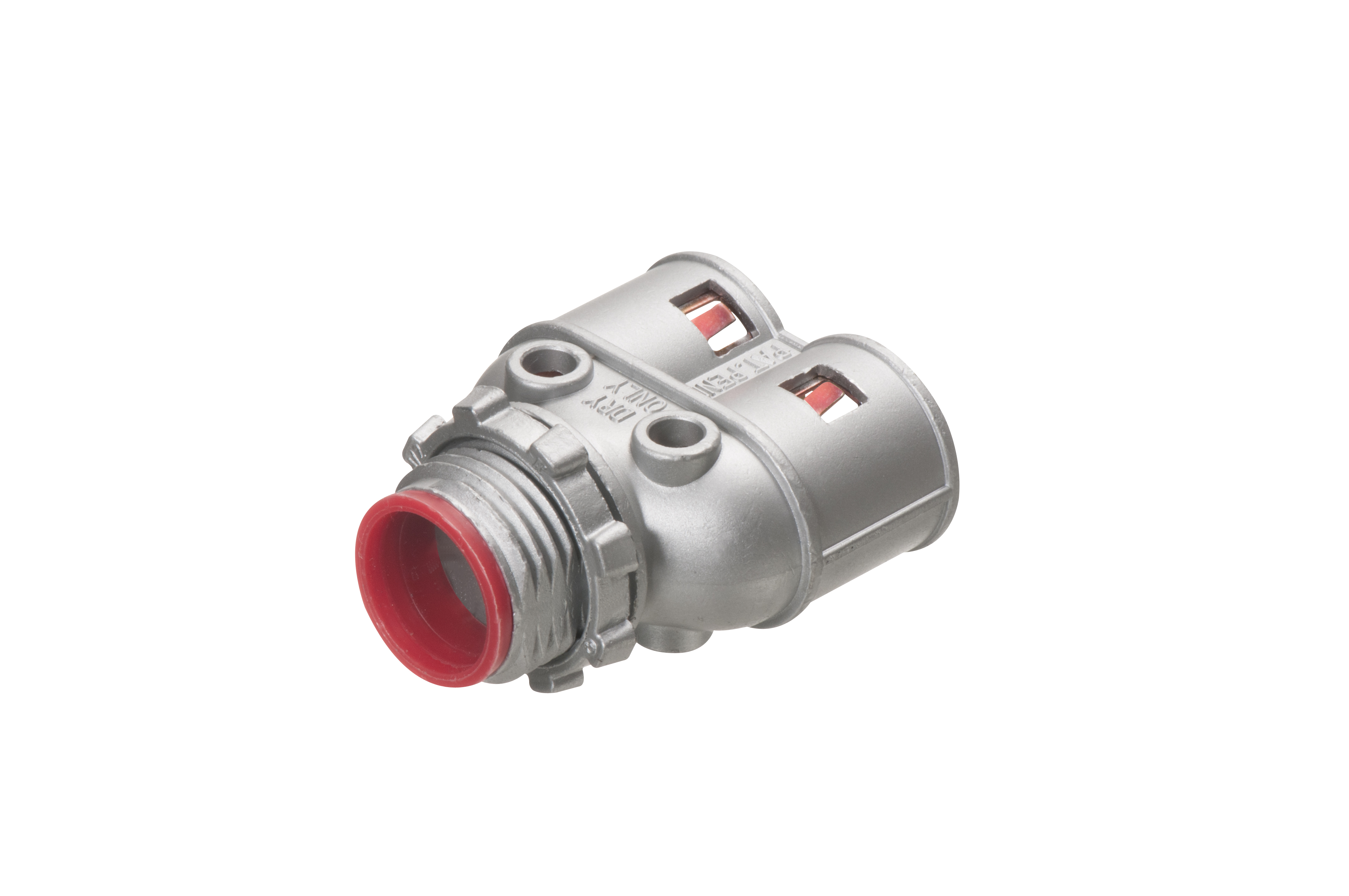

Snap 2 it duplex connector with insulated throat

4040A Product Information

Zinc die-cast. For AC, MCI-A, HCF steel and aluminum cable. Flexible metal conduit steel and aluminum. MCI Cable. Continuous corrugated aluminum, AC90.
Specification SheetCatalog Page E-mail

Additional Images

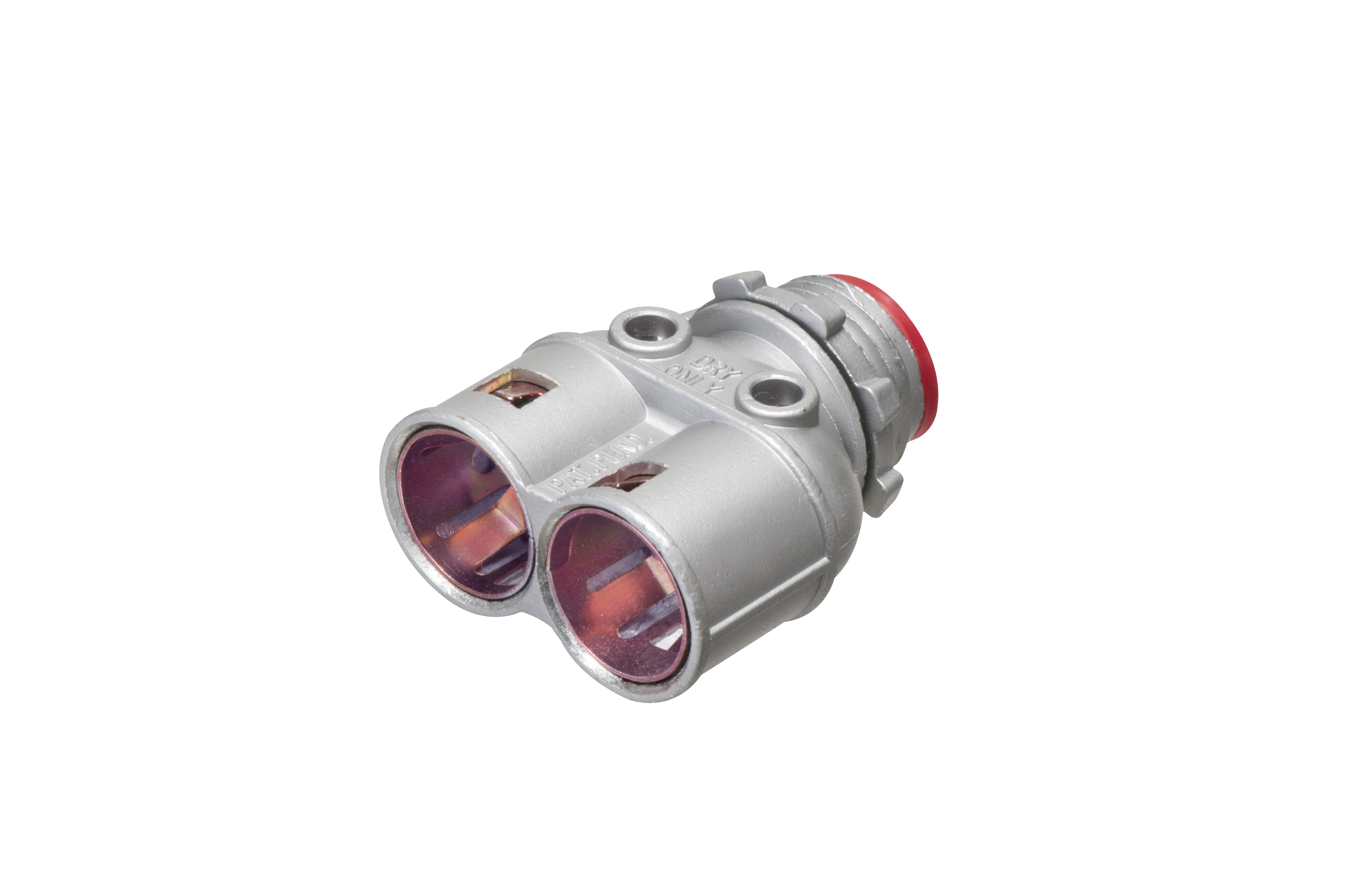

Snap 2 it duplex connector with insulated throat cable side

Basic Information

Part Number 4040A
Description Duplex zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with an internal spring steel clip and then snaps into knockout with locknut. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit.
UPC 018997403506
Unit Packaging 25pcs
Standard Packaging 100pcs
Country of Origin

Physical Information

Weight0.166 lbs/each
Color Silver

Technical Information

Line Drawing 4040A Line Drawing
Knockout Size(s)1/2"
Trade Size3/8"
