Snap 2 it duplex connector with locknut and insulating throat

505010A Product Information

SNAP²IT® Connectors with Locknut and Insulated Throat
Specification SheetCatalog Page E-mail

Additional Images

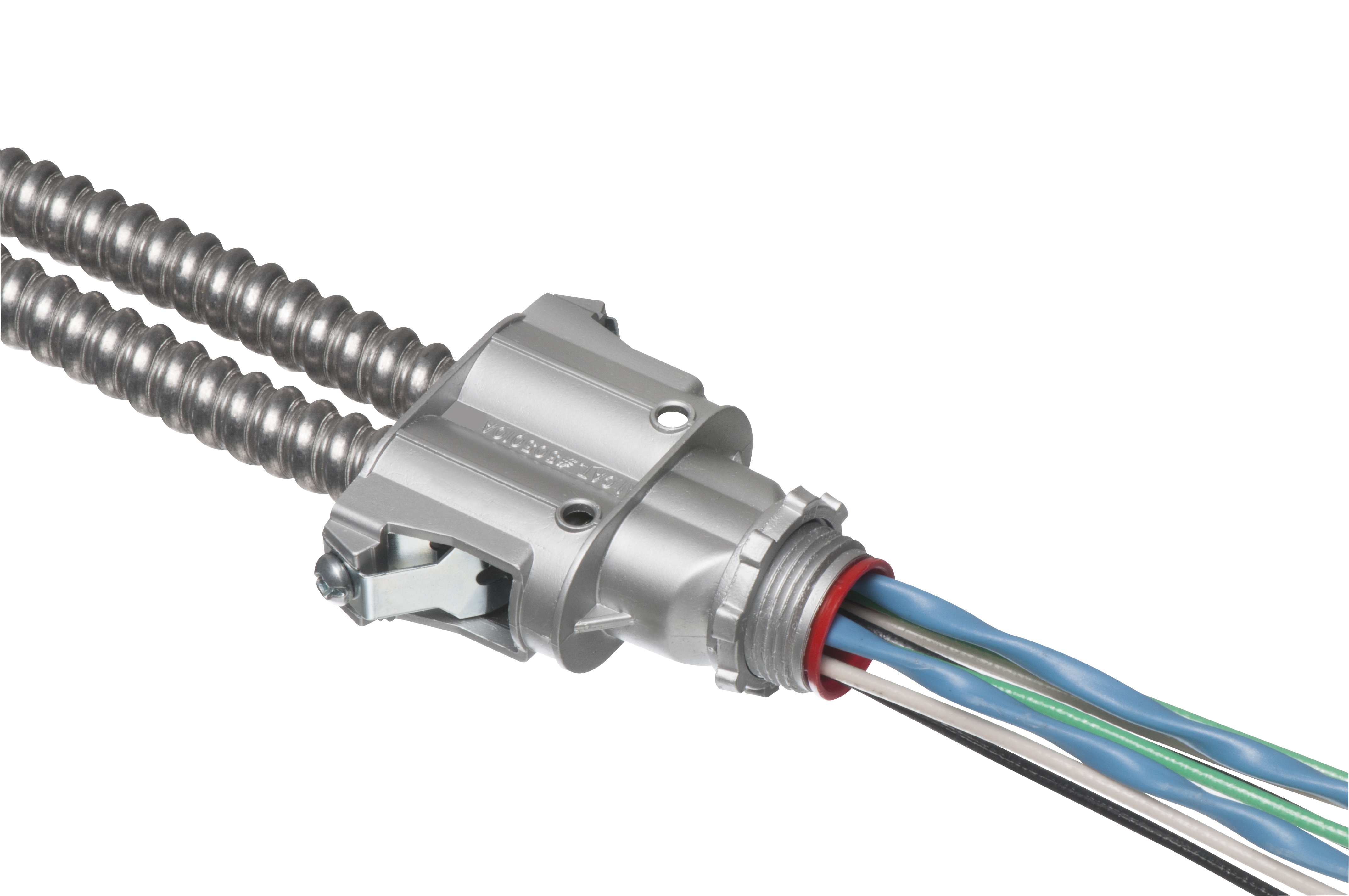

Snap 2 it duplex connector with two MC cables into one knockout

Basic Information

Part Number 505010A
Description Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly onto the conduit with an internal spring steel clip and then secures into knockout with locknut. Concrete tight when taped. Provided with insulated throat. Has a cable range of (2) 0.650 - 0.850 inches.
UPC 018997762146
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin

Physical Information

Weight0.295 lbs/each
Color Silver
Material(s)Zinc die-cast

Technical Information

Line Drawing 505010A Line Drawing
Cable Range(2) 0.650" - 0.850"
Knockout Size(s)3/4"
Trade Size1/2"
