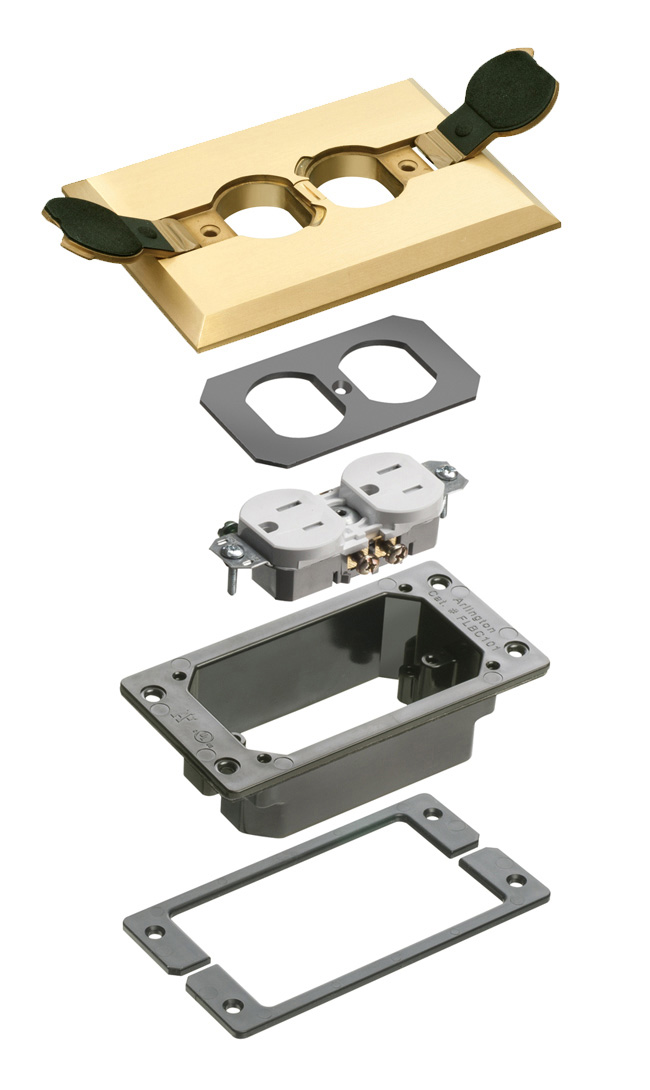

exploded view of components included in floor box trim kit

FLBCF101MBTK Product Information

Brass Cover Trim Kit with Flip Lids
Specification SheetCatalog Page E-mail

Basic Information

Part Number FLBCF101MBTK
Description Trim kits for Arlington's Metallic concrete floor boxes. Brass. Flip Lid.
UPC 018997138316
Unit Packaging 1pc
Standard Packaging 1pc

Physical Information

Instructional Video FLBCF101MBTK Instructional Video
Weight1.860 lbs/each
Height6.022"
Width4.152"
ColorBrass (Cover)
Material(s)Metallic Cover

Technical Information

Line Drawing FLBCF101MBTK Line Drawing
StyleConcrete rough-in floor box trim kit with flip lids
Trade Size1-Gang
UsageFor new concrete

Comes With

(1)Mounting bracket with gasket
(1)Duplex Receptacle
(1)Cover plate with gasket
(1)Back Plate
(1)3/4" Spacer Set
(1)1/8" Spacer Set
(1)1/4" Spacer Set
(1)1/2" Spacer Set
(4)#8 x 5/8" Long Sheet Metal Screws
(4)#8 x 1-1/4" Long Sheet Metal Screws
(5)#6-32 x 1/2" Long Screws
