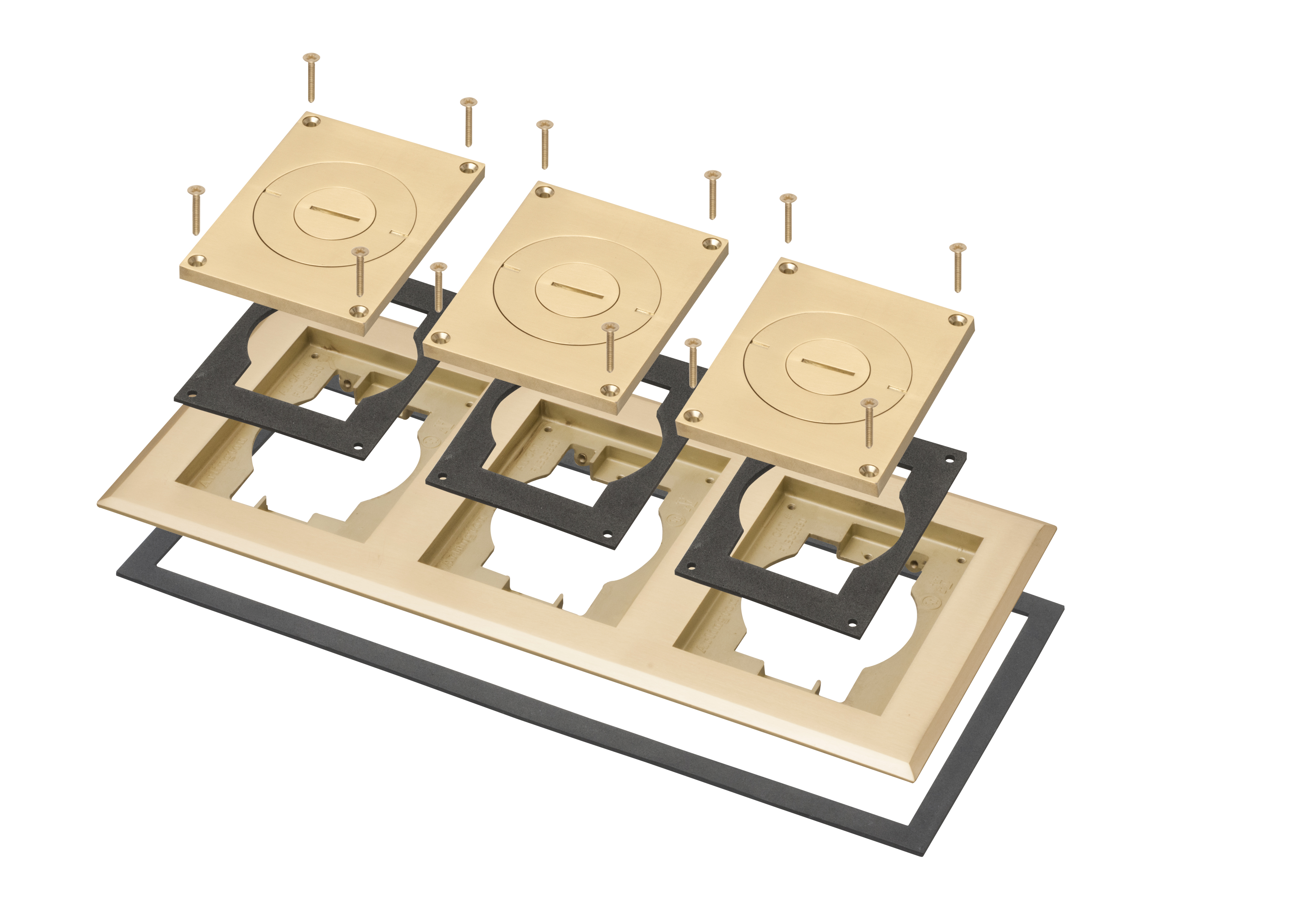

exploded view of three gang floor box cover kit

FLBC8533MB Product Information

Three Gang Frame
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC8533MB
Description Plated Brass, three gang frame and cover with furniture feed inserts. Includes three gang frame with gasket, (3) gasketed covers with combo 2" and 3/4" threaded holes and mounting screws.
UPC 018997208255
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Weight4.400 lbs/each
Height6.094"
Width13.543"
ColorBrass
Material(s)Zinc

Technical Information

Line Drawing FLBC8533MB Line Drawing
IncludesThree gang frame with gasket, (3) gasketed covers with (2) combo 2" and 3/4" threaded holes in each, and (4) mounting screws
Trade Size3-Gang
