Arlington

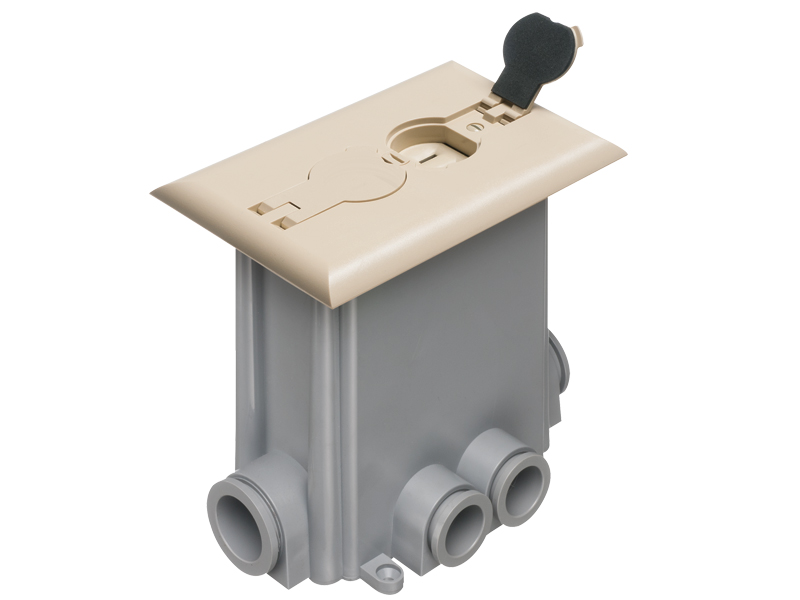

single gang floor box kit

FLBCF101LA Product Information

Non-Metallic Floor Boxes for New Concrete Pours
Specification SheetCatalog Page E-mail

Additional Images

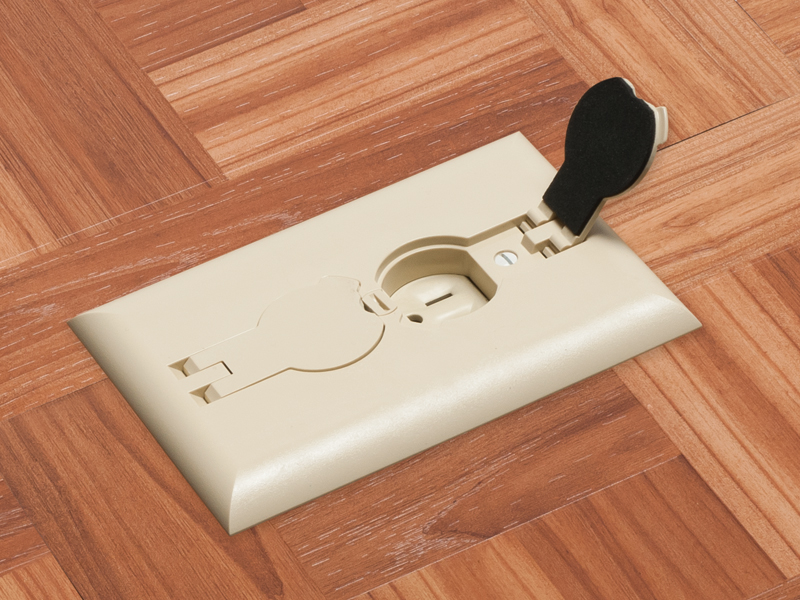

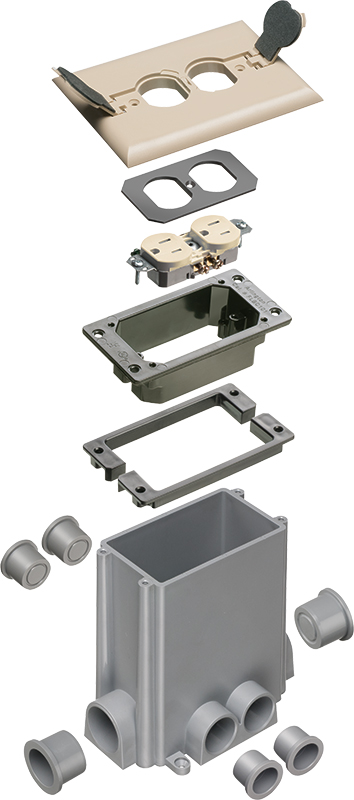

exploded view of components included in floor box kit single gang floor box in wooden floor with flip lid open

Basic Information

Part Number FLBCF101LA
Description Non Metallic concrete floor box with non metallic covers for new concrete pours. Light Almond with flips lids. Includes Box, Mud Cover, Four 3-1/4 plugs, two 1" plugs, 1/8" spacer 1/4" spacer. one 1/2" spacer, one 3/4" spacer, Mounting bracket, Duplex receptacle, Gasketed cover plate.
UPC 018997069511
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number FLBCF101LAGC

Physical Information

Instructional Video FLBCF101LA Instructional Video
Weight2.194 lbs/each
Height6.022"
Width4.152"
Color Light Almond (Cover)
Material(s)Plastic

Technical Information

Line Drawing FLBCF101LA Line Drawing
Submittal Drawing FLBCF101LA Submittal Drawing
StyleNon-metallic floor box, rectangular cover with flip lids
Trade Size1-Gang
UsageFor new concrete

Comes With

(1)Mud Cover
(1)Mounting bracket with gasket
(1)Duplex Receptacle
(1)Cover plate with gasket
(1)Concrete Box
(1)Back Plate
(1)3/4" Spacer Set
(4)3/4" Plugs
(1)1/8" Spacer Set
(1)1/4" Spacer Set
(1)1/2" Spacer Set
(2)1" Plugs
(4)#8 x 5/8" Long Sheet Metal Screws
(4)#8 x 1-1/4" Long Sheet Metal Screws
(5)#6-32 x 1/2" Long Screws
