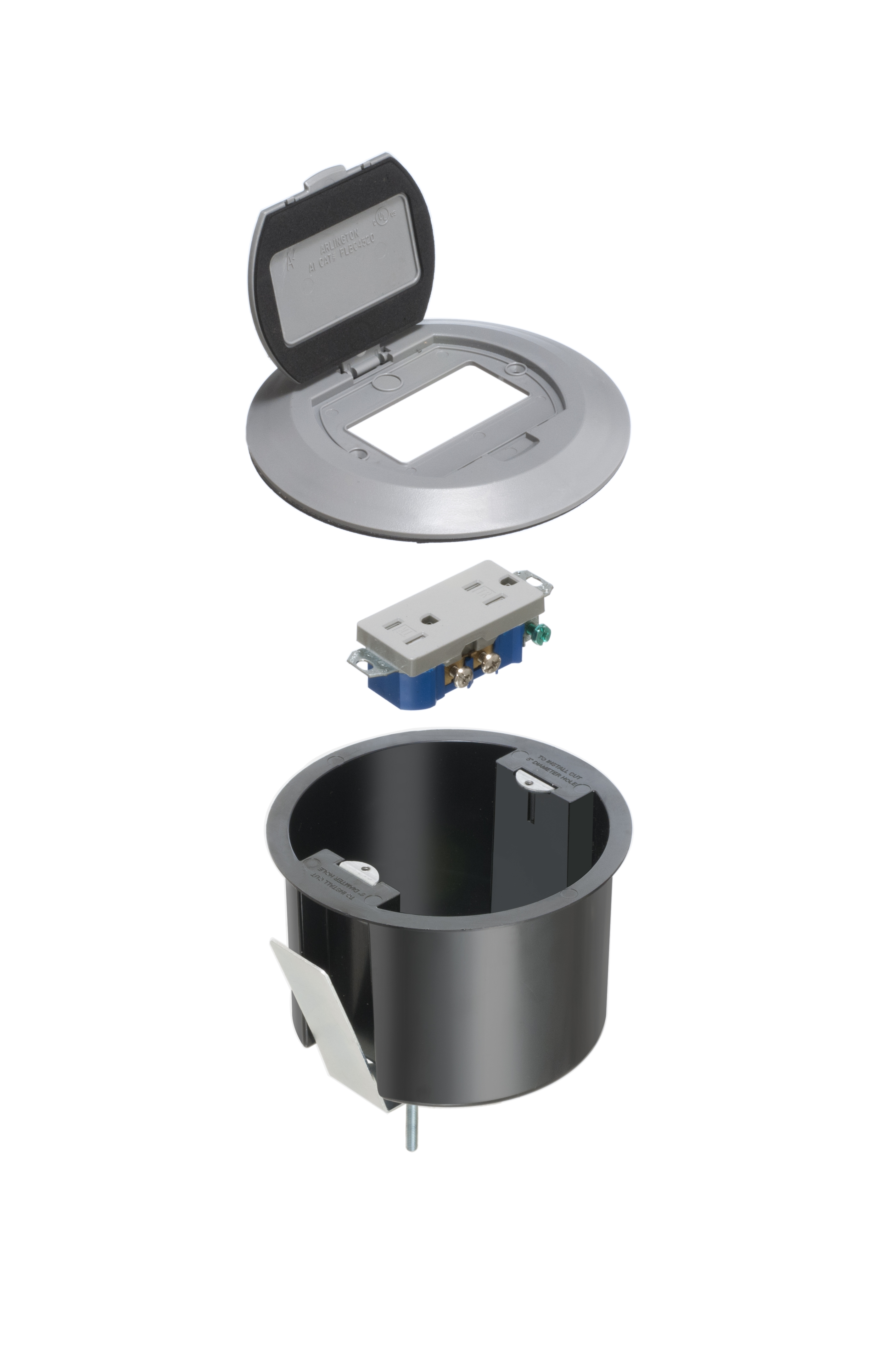

exploded view of components included in floor box kit

FLBR6500GY Product Information

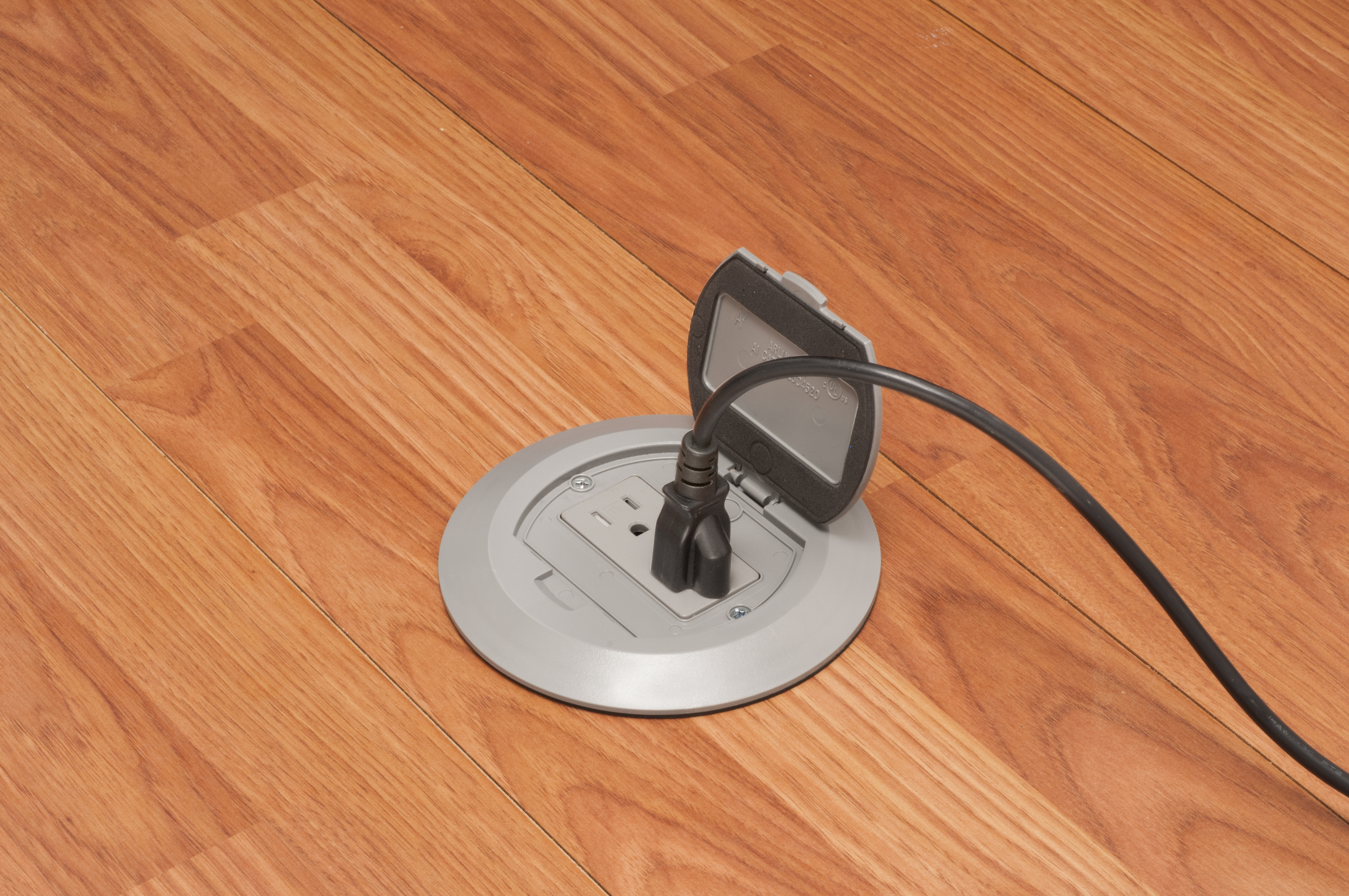

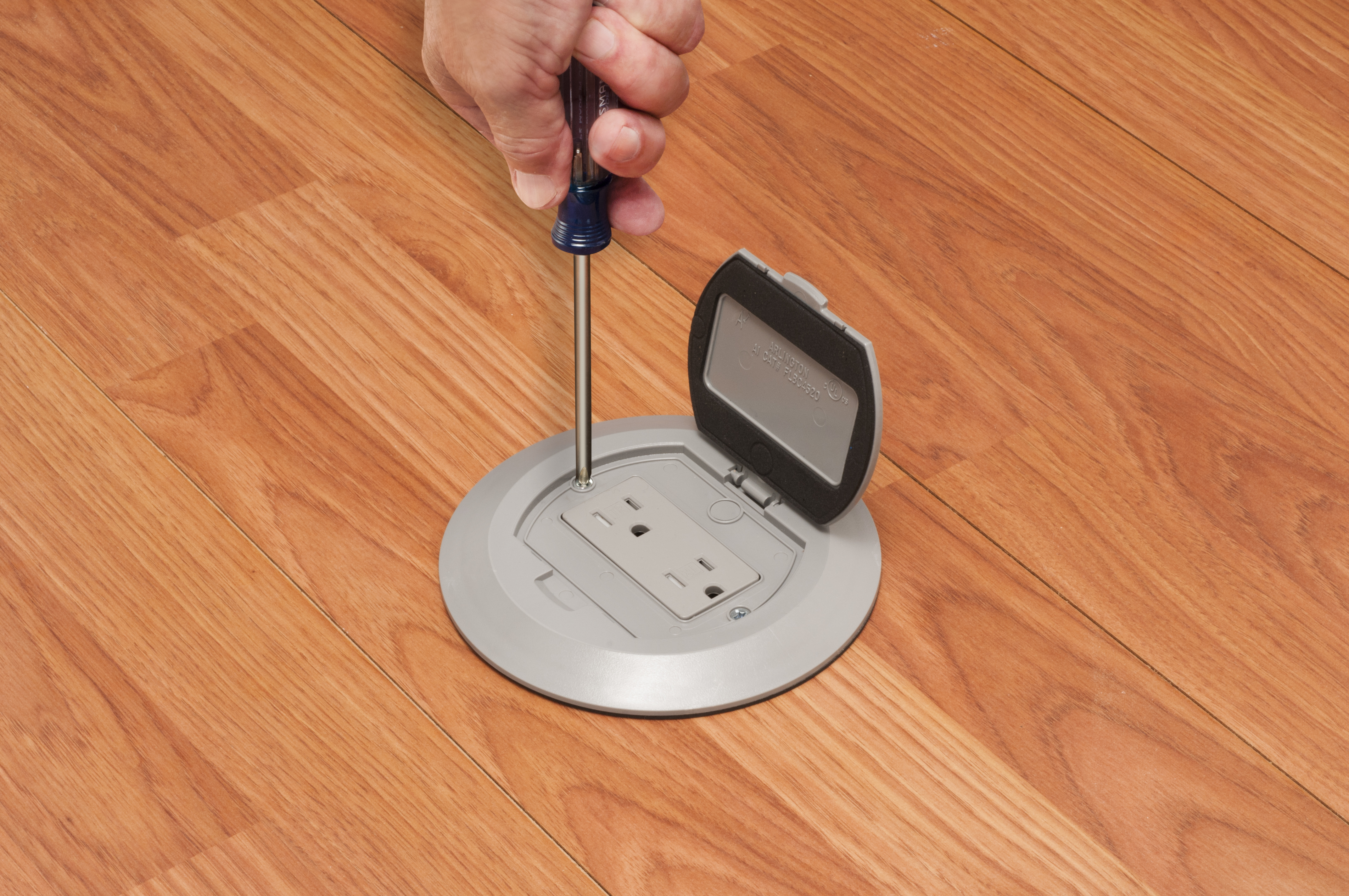

Easy, secure installation in an existing floor with a 5" hole saw. A bendable steel spring clip holds the box securely against the subfloor when the captive screws are tightened.
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBR6500GY

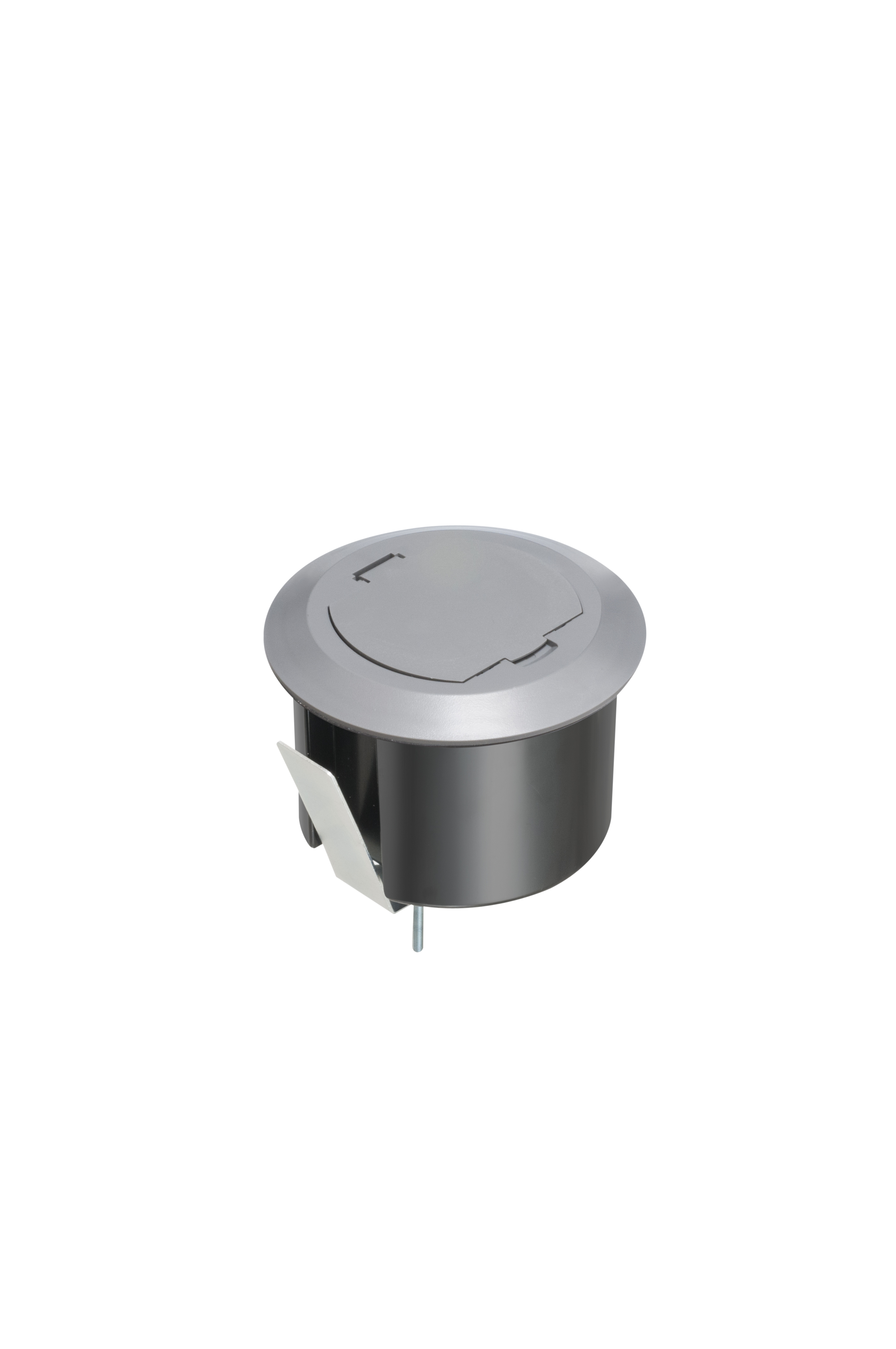

Description One piece non metallic box with steel bracket and plastic cover. Color Gray. Comes with decorator style receptacle and a single flip lid.
UPC 018997523228
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Weight0.860 lbs/each
Height5.750"
Width5.750"
Color Gray
Cover Color Gray
Material(s)Plastic / Steel

Technical Information

Line Drawing FLBR6500GY Line Drawing
Trade SizeN/A

Comes With

(1)Non-metallic floor box
(1)NM95 Cable Connector
(1)NM94 Cable Connector
(1)Cover Cap
(1)Cover
(1)15A Tamper-Resistant Decorator-Style Duplex Receptacle
(2)#6-32 x 1" Long Screws
