bronze grounding bridge clamp

720GBB5 Product Information

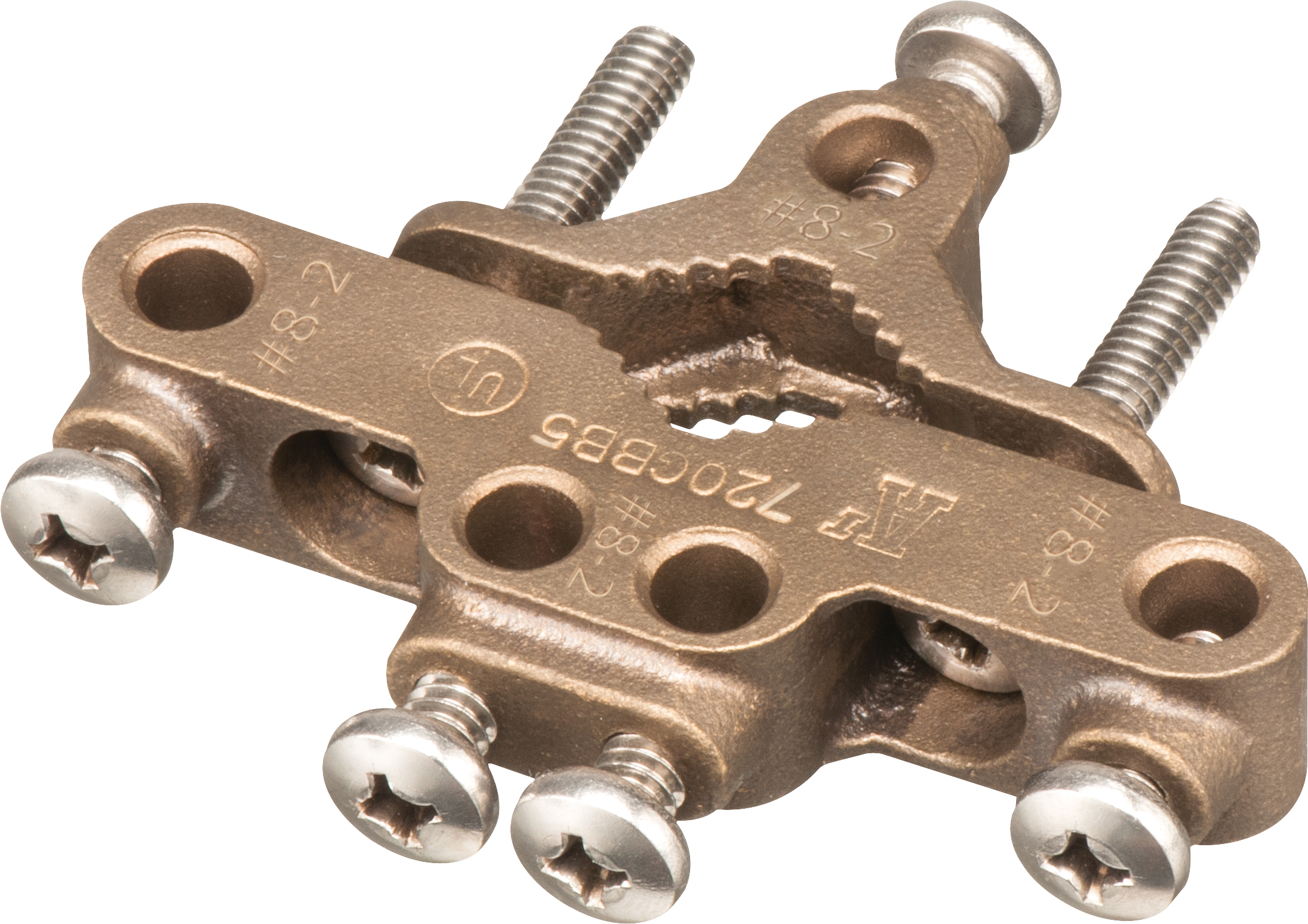

Bronze Grounding Bridge Clamp
Specification SheetCatalog Page E-mail

Additional Images

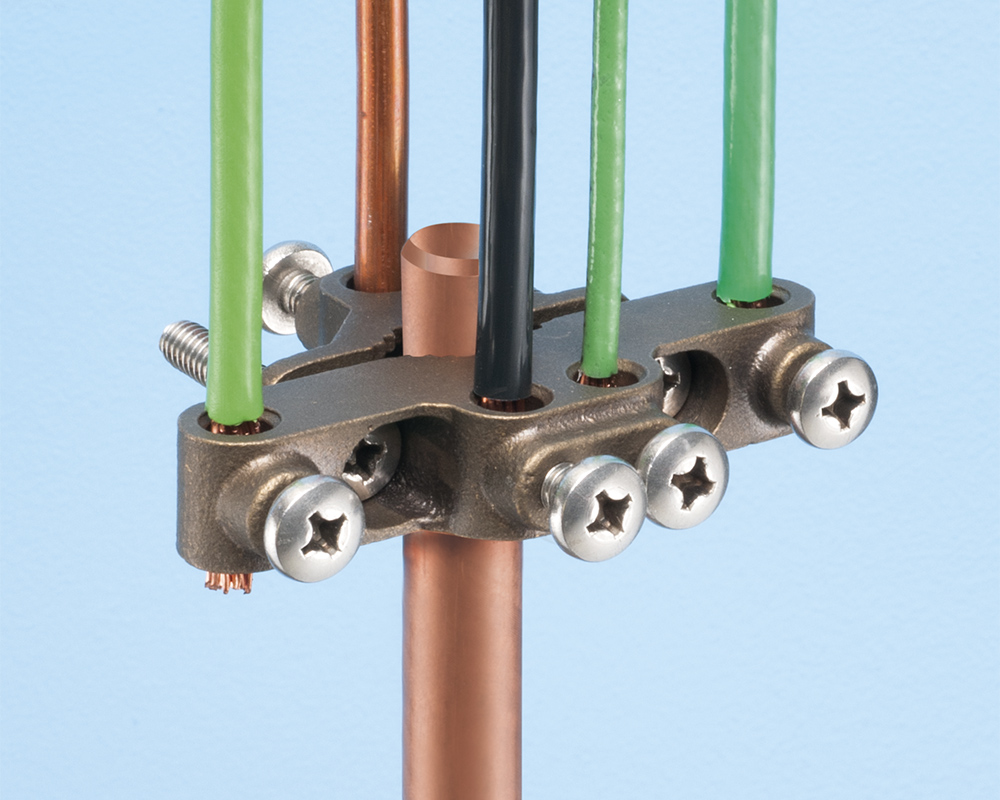

grounding bridge clamp with 5 grounding wires attached

Basic Information

Part Number 720GBB5
Description Solid Bronze, pipe size 1/2" to 1" metal underground water pipe and 1/2", 5/8 or 3/4 ground rod. Intersystem bonding and grounding conductors #14 to #4 copper or aluminum solid or stranded. Equipment grounding conductor/grounding conductor #8 to #2 for indoor or outdoor use.
UPC 018997097552
Unit Packaging 25pcs
Standard Packaging 25pcs
Listing

Physical Information

Weight0.450 lbs/each
Height3.413"
Width1.540"
Color Bronze
Material(s)Bronze, Steel

Technical Information

Line Drawing 720GBB5 Line Drawing
ApplicationProvide Reliable Intersystem Bonding Between Power and Communication Grounding Systems
Direct BurialYes
Equipment Grounding Conductor#8 to #2
Ground RequirementsMeets 250.94 of the 2020 NEC
Ground Rod Size1/2", 5/8", or 3/4"
Grounding Electrode#8 to #2
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Pipe Size1/2" to 1" Metal Underground Water Pipe
Termination Points(4) Four
Trade Size1/2" to 1" Pipe
