intersystem grounding bridge

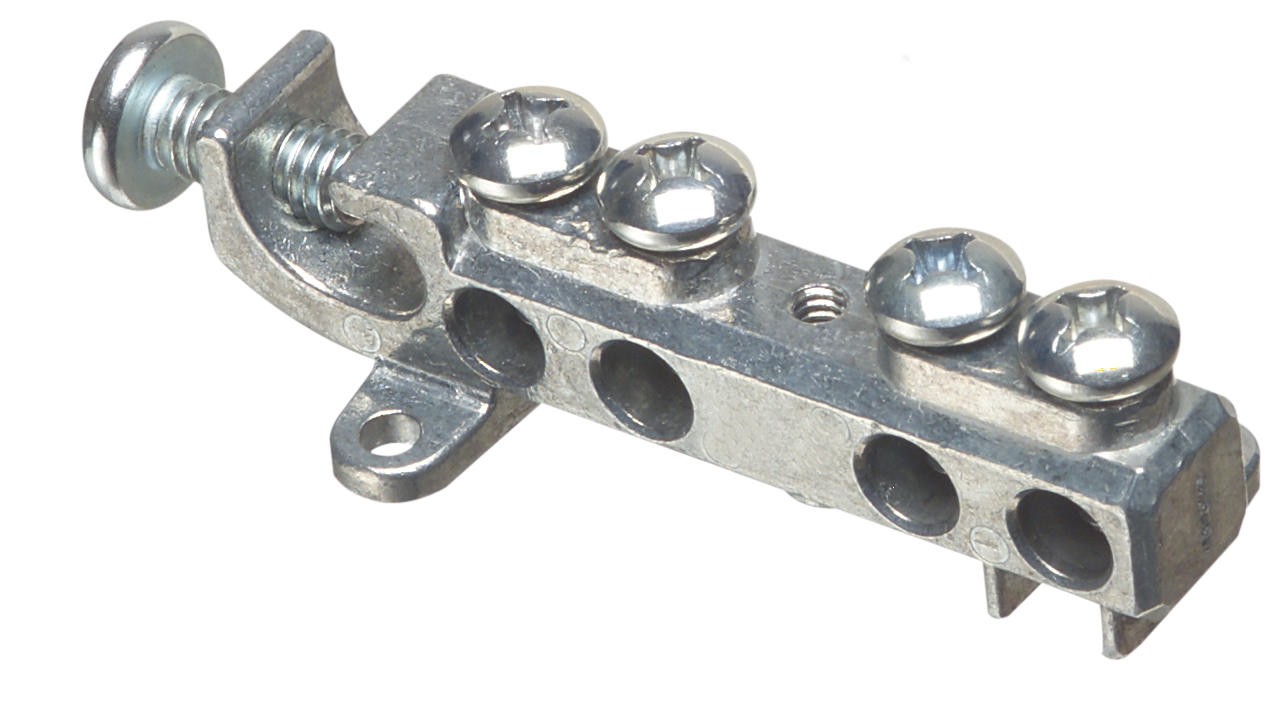

GB5NC Product Information

Intersystem Grounding Bridge - No Cover
Specification SheetCatalog Page E-mail

Basic Information

Part Number GB5NC
Description Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Attaches to grounding conductor with lay in style lug with a cable range of #6 to #2 grounding wire solid or stranded. Zinc no cover.
UPC 018997760944
Unit Packaging 10pcs
Standard Packaging 10pcs
Country of Origin
Listing

Physical Information

Instructional Video GB5NC Instructional Video
Weight0.324 lbs/each
Height1.409"
Width0.872"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing GB5NC Line Drawing
ApplicationProvides reliable intersystem bonding between power and communication grounding systems. Without the cover and screw, and bulk-packaged to lower the cost.
Equipment Grounding Conductor#6 to #2 Copper or Aluminum - Solid or Stranded
Grounding Electrode#6 to #2 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Termination Points(4) Four
Trade Size#6 to #2 Grounding Electrode

Comes With

(1)Intersystem Grounding Bridge
